Flatform type folding led screen Mobile led truck

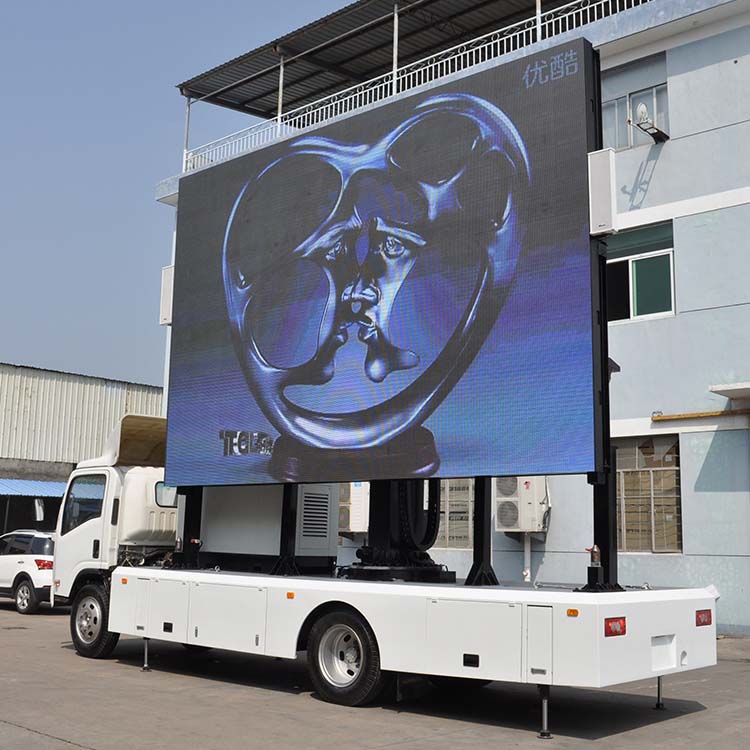

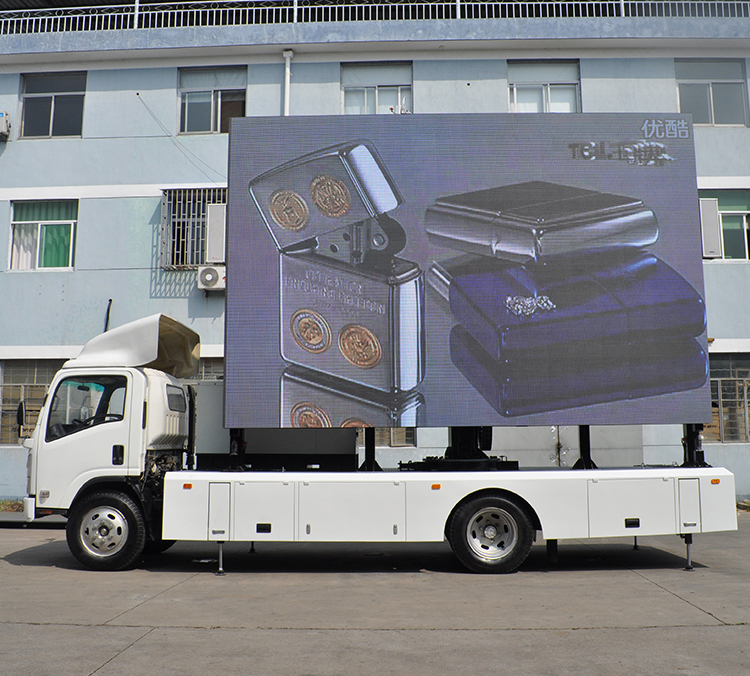

JCT 22㎡ led billboard truck- ISUZU （Model：E-YZD22） created by Jingchuan is an advertising terminal that can move freely, timely change information, communication strategies and locations. It is a new type of advertising communication carrier that integrates advertising, information release and live broadcast.
The led billboard truck is equipped with a new system with integrated support, hydraulic lifting and rotating functions. The LED display can be rotated 360°, further enhancing the visual effect. It is especially suitable for applications in busy places such as downtowns, assemblies, and outdoor sports events.

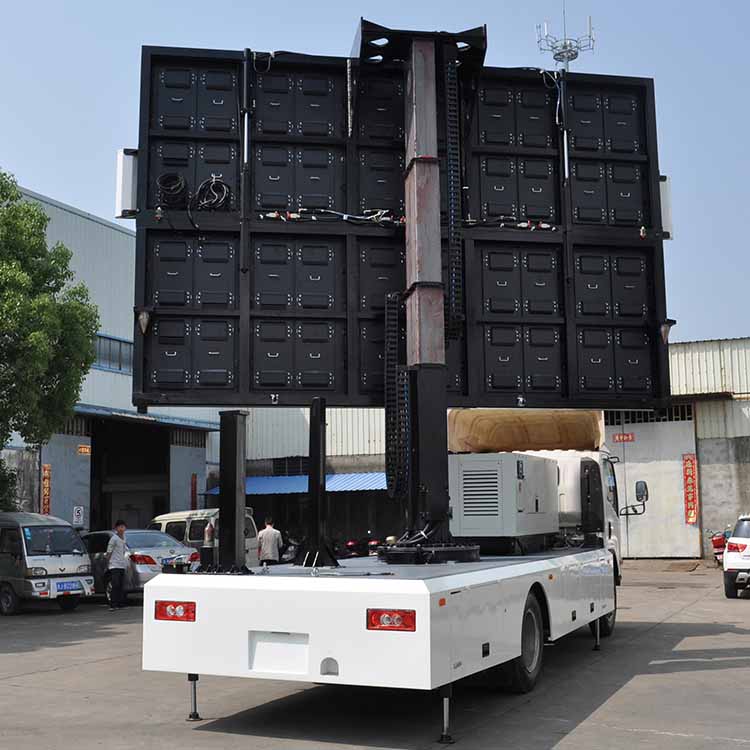

360°rotatable and foldable LED screen
22㎡ led billboard truck is equipped with a brand new system with integrated support, hydraulic lifting and rotating functions. The LED display can be rotated 360°, further enhancing the visual effect. It is especially suitable for applications in busy places such as downtowns, assemblies, and outdoor sports events. The operation is convenient and quick, and it can resist 8 level winds when the screen is raised.
Integration of media module
22㎡ led billboard truck - ISUZU introduces the concept of media module integration, integrating the LED screen, support lifting system, media control, and electrical control system into a single whole. It realizes modular installation, customers can choose to purchase an independent truck body, and install it after buy a truck chassis.
Exclusive customization for customers
Breaking the limitations of traditional truck equipment size selection, customers can realize independent selection and customization in the choice of generator model, LED screen size and related configuration.
22㎡ led billboard truck - ISUZU parameter specification (standard):
1. Overall dimension: 8170mm 2220mm 3340mm
2. LED outdoor full-color display screen (10) size: 5760x3840mm
3. Power consumption (average consumption) : 0.5 / m/H, total average consumption.
4. Equipped with lifting and hydraulic support system, lifting stroke is 2000mm; Equipped with 360 degree rotation system.
5. Equipped with front-end video processing system for live broadcast or rebroadcast and matches. There are 8 channels, to switch screens.
6. The intelligent timing power-on system can turn on or off the LED screen regularly.
7. Equipped with multimedia playback system, support usb flash drive and mainstream video format.
8. Equipped with ultra-quiet generator set, power is 24KW.
9. Input voltage is 380V, starting current is 40A.

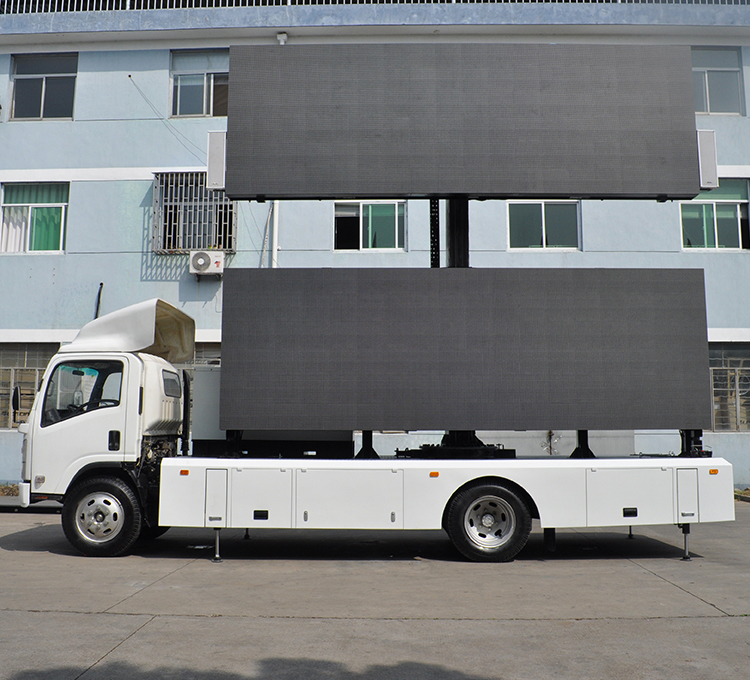

| Specification | |||
| Chassis | |||
| Brand | Foton Ollin | Dimension | 8730x2370x3990mm |
| Engine model | CA4DF3 -14E3 | Power | Cummins |
| Emission standard | Euro III | Total mass | 10000kgs |
| Seat | Single row | Axle base | 4700mm |
| Hydraulic Lifting and Supporting System | |||
| Hydraulic lifting system | Lifting Range 2000mm, bearing 5000kgs | ||
| Hydraulic rotating system | Screen can rotate 360 degrees | ||
| Folding screen | 180 - degree flip | ||
| Wind-against level | Against level 8 wind when screen is lift up 2m | ||
| Supporting legs | Stretching distance 300mm | ||
| Silent generator group | |||
| Dimension | 2060*920*1157mm | Power | 24KW diesel generator set |
| Voltage and frequency | 380V/50HZ | Engine | AGG, engine model: AF2540 |
| Motor | GPI184ES | Noise | Super silent box |
| Others | electronic speed regulation | ||
| LED Screen | |||
| Dimension | 5760mm*3840mm | Module Size | 320mm(W)*160mm(H) |
| Light brand | Kinglight | Dot Pitch | 5mm |
| Brightness | ≥6500cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ |
| Power Supply | Meanwell | DRIVE IC | MBI5124 |
| Receiving card | Nova MRV316 | Fresh rate | 1920 |
| Cabinet material | Iron | Cabinet weight | Iron 50kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD2727 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 27778 Dots/㎡ |
| Module resolution | 64*32Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7， | ||
| Power parameter | |||
| Input voltage | 3 phases five wires 380V | Output voltage | 220V |
| Inrush current | 40A | Power | 0.3kwh/㎡ |
| Control System | |||
| Video processor | NOVA | Model | VX400 |
| Sound System | |||
| Power amplifier | Unilateral power output:1000W | Speaker | Max power consumption:200W*4 |
