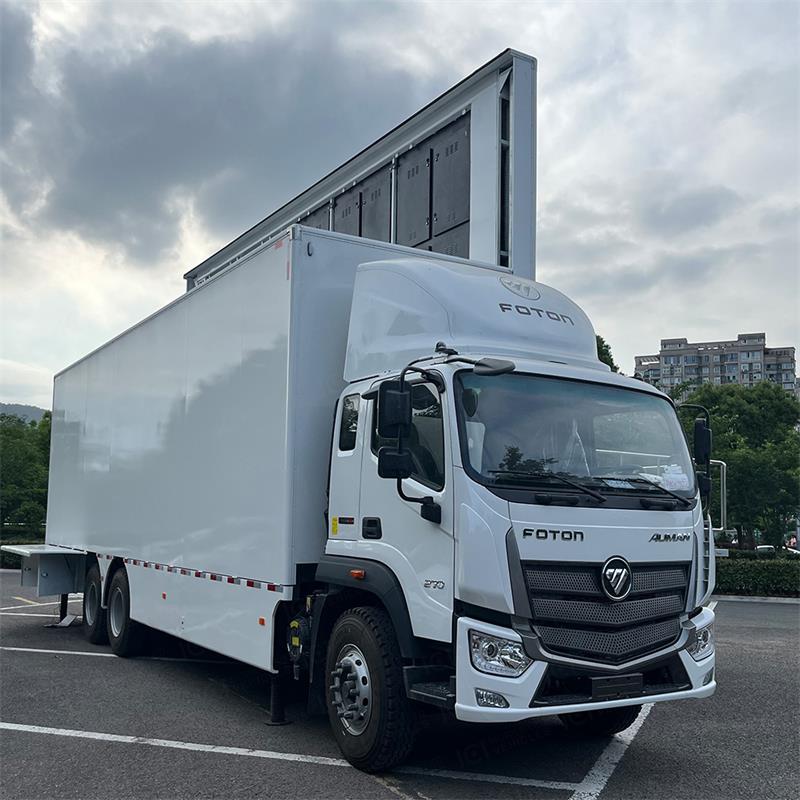

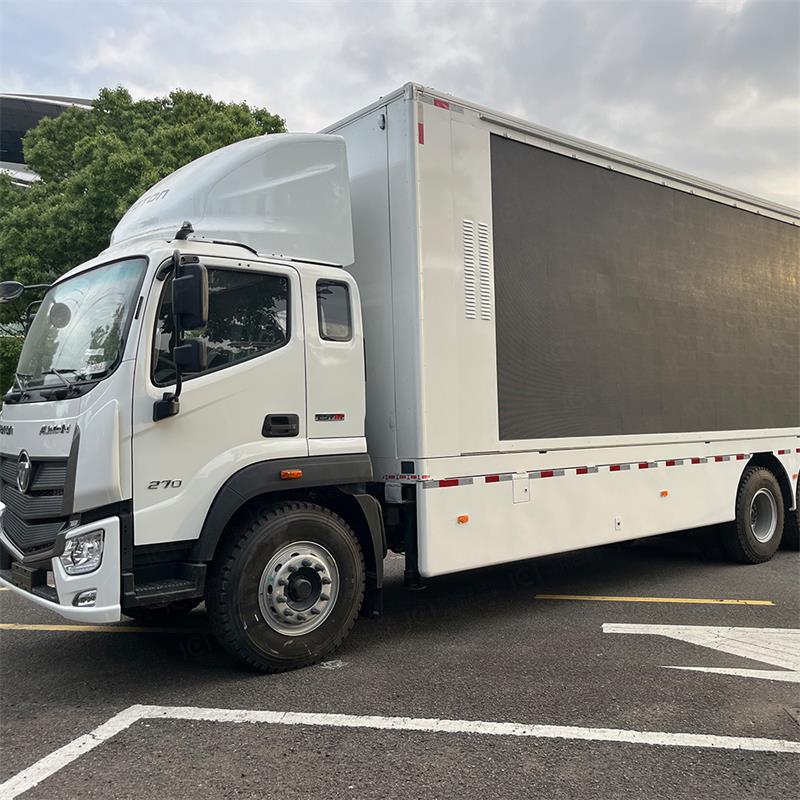

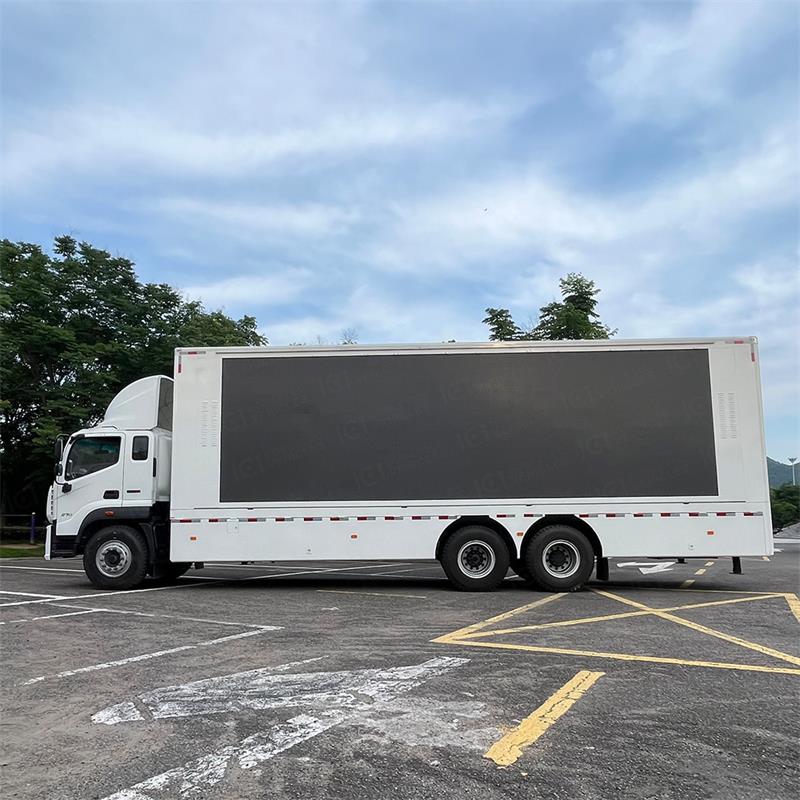

12m long super large Mobile led truck
| Specification | ||||
| Truck chassis | ||||
| Brand | FOTON | BJ1256VMPHH-RA Right hand | Dimension | 11335*3720*2350mm |
| Engine | YC6A260-33 | Cargo box dimension | 9600x2400x2500mm | |
| Emissions | Euro 5 | Driver | 6*4 | |
| Total mass | 25000KG | Chassis kerb weight（kg） | 8140KG | |
| Fuel injection system | Common rail | Body Type | H5-2200 one bed | |
| Gearbox | Fast 8JS118TC-B | Rear axle | 440/4.625 speed ratio | |
| Tyre | 11.00R20-18RP | 10+1 | Others | Original factory air conditioning, electric doors and Windows, air bag seats, central control lock, 600L aluminum alloy fuel tank |
| LED Screen | ||||
| Dimension | 8000mm*2400mm | Module Size | 320mm(W)*160mm(H) | |
| Light brand | Nationstar light | Dot Pitch | 4mm | |
| Brightness | 6000cd/㎡ | Lifespan | 100,000hours | |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ | |
| Power Supply | Meanwell | DRIVE IC | ICN2153 | |
| Receiving card | Nova MRV316 | Fresh rate | 3840 | |
| Cabinet material | Iron | Cabinet weight | Iron 50kg | |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B | |
| LED packaging method | SMD1921 | Operating Voltage | DC5V | |
| Module power | 18W | scanning method | 1/8 | |
| HUB | HUB75 | Pixel density | 62500 Dots/㎡ | |
| Module resolution | 80*40 Dots | Frame rate/ Grayscale, color | 60Hz,13bit | |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ | |
| system support | Windows XP,WIN 7， | |||
| Silent generator group | ||||
| Dimension | 2060*920*1157mm | Power | 24KW diesel generator set | |
| Voltage and frequency | 380V/50HZ | Engine: | AGG, engine model: AF2540 | |
| Motor | GPI184ES | Noise | Super silent box | |
| Others | electronic speed regulation | |||
| Player system | ||||
| Video processor | NOVA | Model | VX400 | |
| Luminance sensor | NOVA | Multi-function card | NOVA | |
| Sound system | ||||
| Power amplifier | 1000 W | Speaker | 2 *200 W | |
| mixer | YAMAHA | Wireless microphone | One wireless receiver, two wireless microphones | |
| Power parameter | ||||
| Input Voltage | 380V | Output Voltage | 220V | |
| Current | 30A | |||
| Electrical system | ||||
| Circuit control and electrical appliances | National standard | |||
| The hydraulic system | ||||

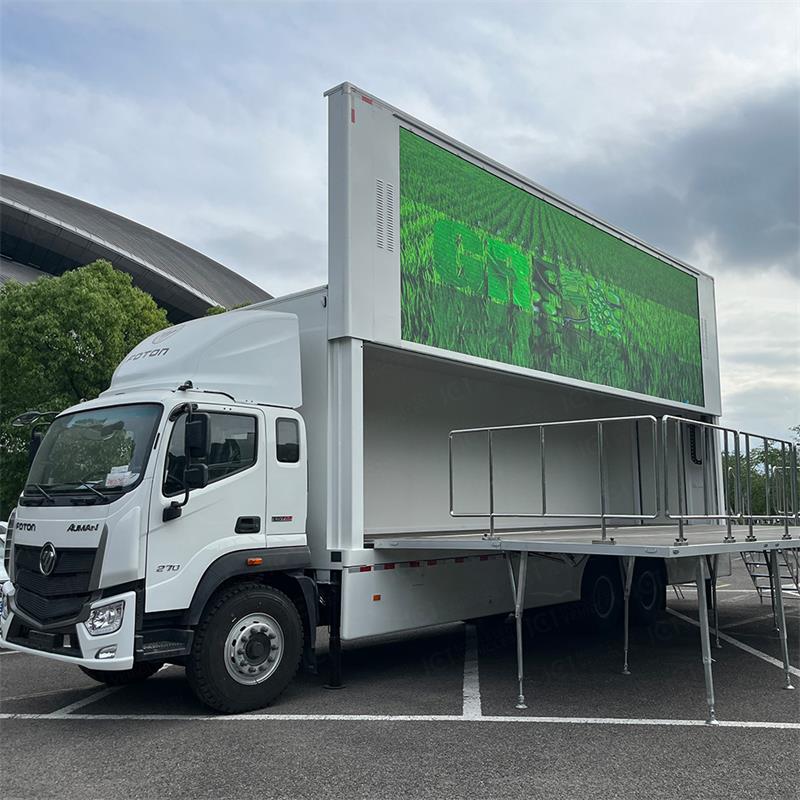

| LED screen hydraulic lift | 2 pcs travel 2000mm | Hydraulic leg | 4 pcs | |
| First stage hydraulic cylinder | 2 pcs | Second stage hydraulic cylinder | 2 pcs | |
| Hydraulic control system | 1 set | Remote control | 1 set | |

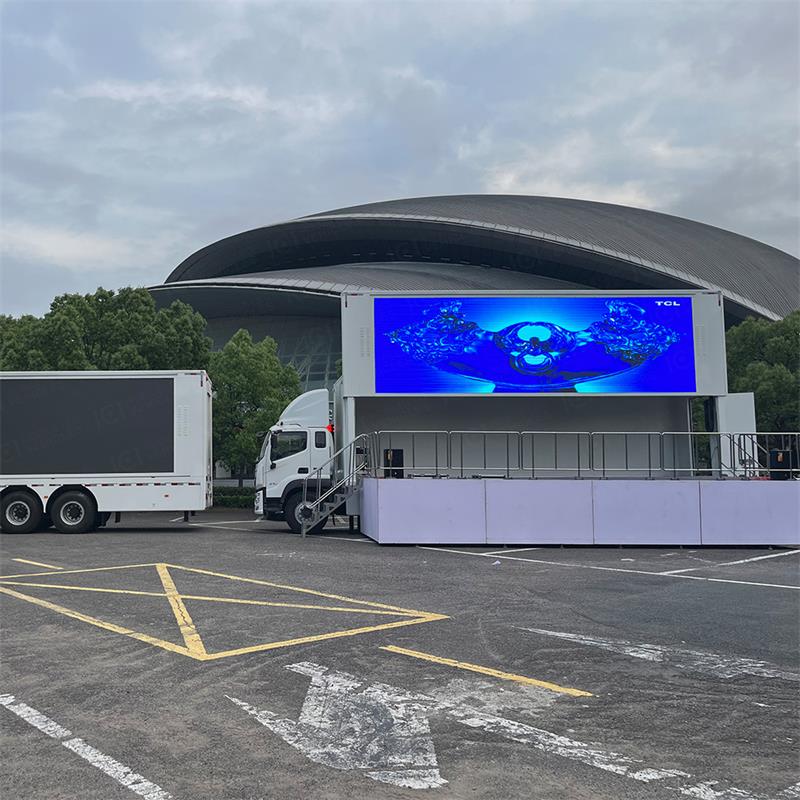

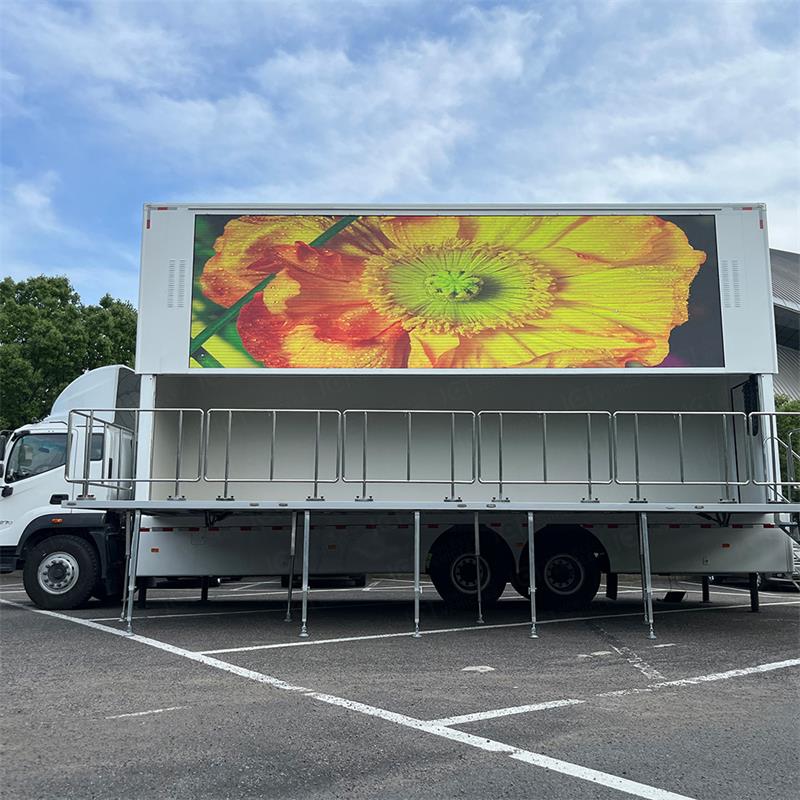

| Stage and guardrail | ||||

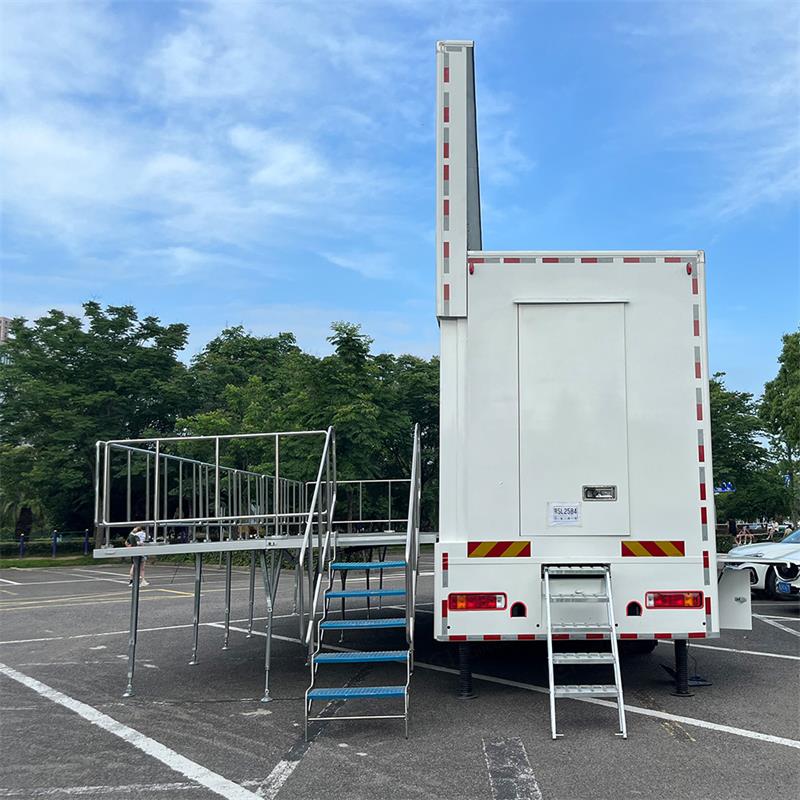

| Stage size（Double fold stage） | (8000MM+2000MM)*3000mm | The ladder（with Stainless steel handrail) | 1000 mm wide*2 pcs | |
| Stainless steel guardrail | (3000mm+10000+1500mm)*2 sets，The stainless steel circular tube has a diameter of 32mm and a thickness of 1.5mm | Stage structure（Double fold stage） | All around the big keel 100*50mm square pipe welding, the middle is 40*40 square pipe welding, the above paste 18mm black pattern stage board | |
