7.5m long mobile led truck for 3 sides screen
| Specification | |||
| Truck Chassis | |||
| Brand | FOTON-BJ1088VFJEA-F | chassis dimensions | 6920×2135×2320MM |
| Driving type | 4*2 | Displacement（L） | 3.8 |
| Engine | F3.8s3141 | Rated Powe[kw/HP] | 105 |
| Emission standards | Euro III | Total weight | 8500kgs |
| Seat | Single row 3 seats | Wheelbase | 3810mm |
| Wheels and tyre size | 7.50R16 | Displacement and power（ml/kw) | 5193 / 139 |
| Optional configuration | Front + rear stabilizer bar/central control lock + electric window + remote control/manual air conditioning/reversing radar/flat cargo box/flow shield | ||
| Screen Lifting and Supporting System | |||
| Hydraulic Lifting System: lifting range 2000mm, bearing 3000KGS，Double lift system | |||
| Wind-against Level: Against level 8 wind after screen lift up 2 meters | |||
| Support Legs: Stretch distance 300mm | |||
| Silent generator group | |||
| Generator set | 24KW，YANGDOGN | dimension | 1400*750*1040mm |
| Frequency | 60HZ | Voltage | 415V/3 phase |
| Generator | Stanford PI144E (full copper coil, brushless self-excitation, including automatic pressure regulating plate) | LCD controller | Zhongzhi HGM6110 |
| Micro break | LS, relay: Siemens, indicator light + wiring terminal + key switch + emergency stop: Shanghai Youbang Group | Maintenance-free DF battery | CAMEL |
| LED Screen Full color (left side and right side) | |||
| Left side and Right side: | 4480mm x 2240mm | Module Size | 320mm(W) x 160mm(H) |
| Module resolution | 80x40Pixel | Lifespan | 100,000 hours |
| Light brand | Kinglight light | Dot pitch | 4 mm |
| Brightness | ≥6500cd/㎡ | ||
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ |
| Power Supply | G-energy | DRIVE IC | ICN2153 |
| Receiving card | Nova MRV316 | Fresh rate | 3840 |
| Cabinet material | Iron | Cabinet weight | Iron 50kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 0.125 |
| HUB | HUB75 | Pixel density | 62500Dots/㎡ |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Frame rate/ Grayscale, color | 60Hz,13bit |
| system support | Windows XP,WIN 7 | Operating temperature | -20~50℃ |
| LED Screen Full color (Rear side) | |||
| Rear Side | 1280mm x 1760mm | Module Size | 320mm(W) x160mm(H) |
| Module resolution | 80x40 Pixel | Lifespan | 100,000 hours |
| Light brand | Kinglight light | Dot pitch | 4mm |
| Light model | SMD2727 | Refresh rate | 3840 |
| Power supply | G-energy | Brightness | ≥6500cd/ m² |
| Average power consumption | 300w/㎡ | Max power consumption | 900w/㎡ |
| Power parameter | |||
| Input Voltage | 3 phases 5 wires 380V | Output Voltage | 220V |
| Current | 32A | Power : Average power consumption:300wh/㎡ | |
| Sound System | |||
| Speaker | 4pcs 100W | Power Amplifier | 1pcs 500W |
| Player System | |||
| Video processor | NOVA | Model | TB60 |
| Hydraulic stage | |||
| Stage size | 5000 * 3000 | Open the way | Hydraulic folding |

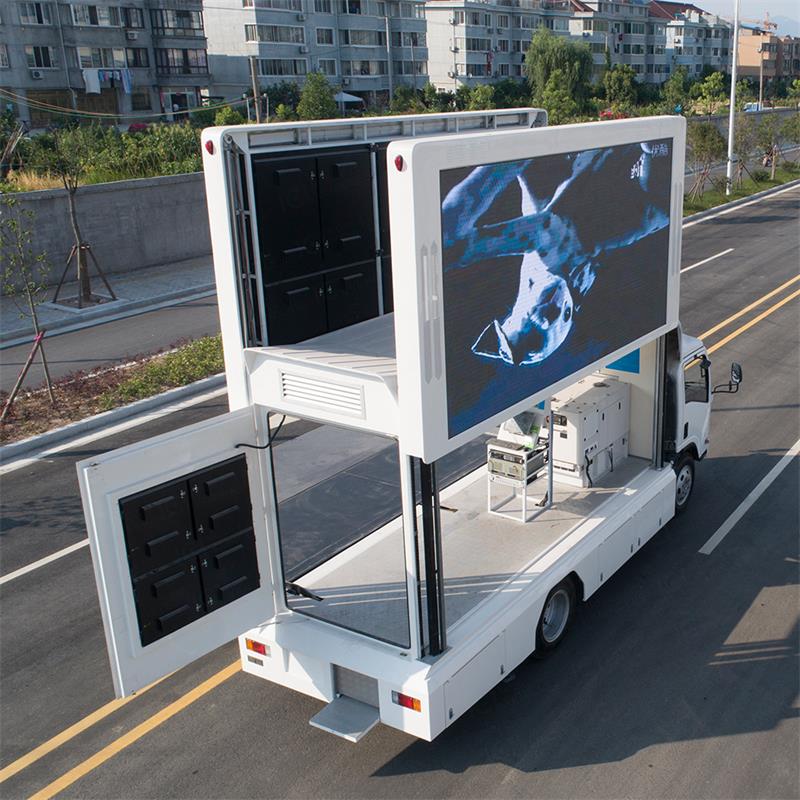

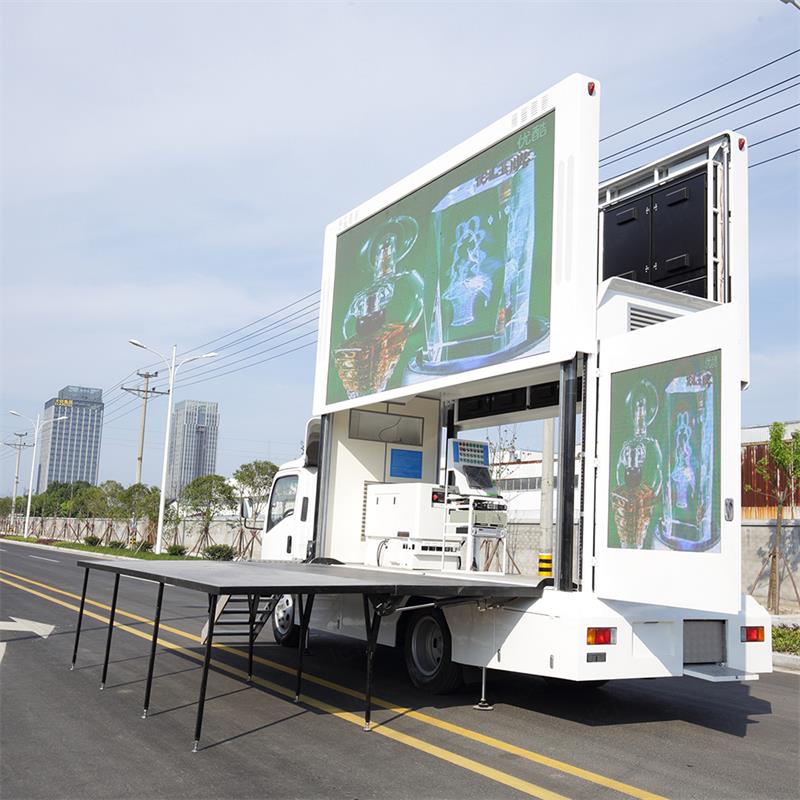

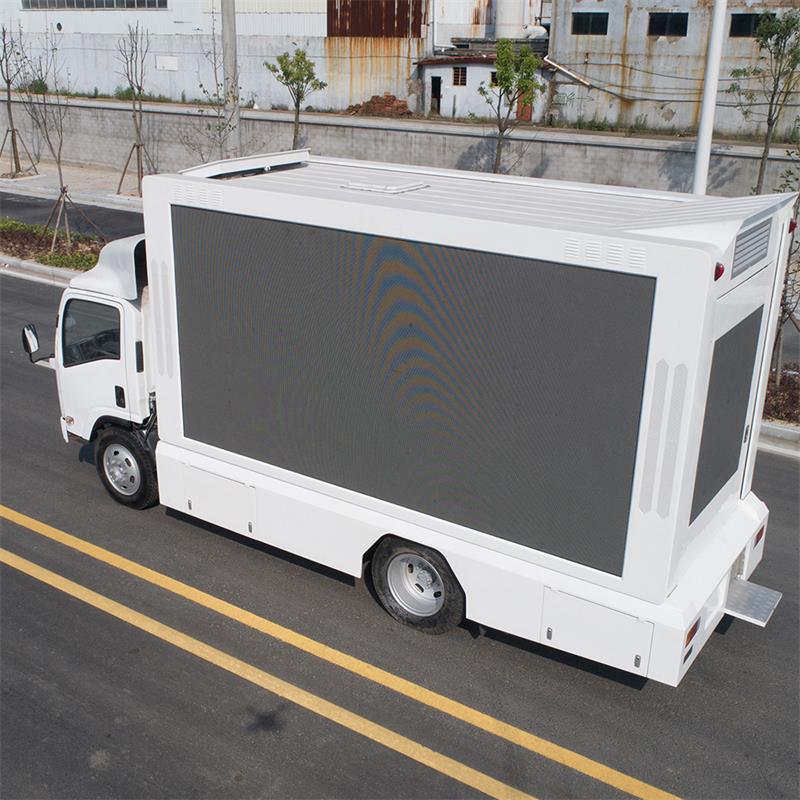

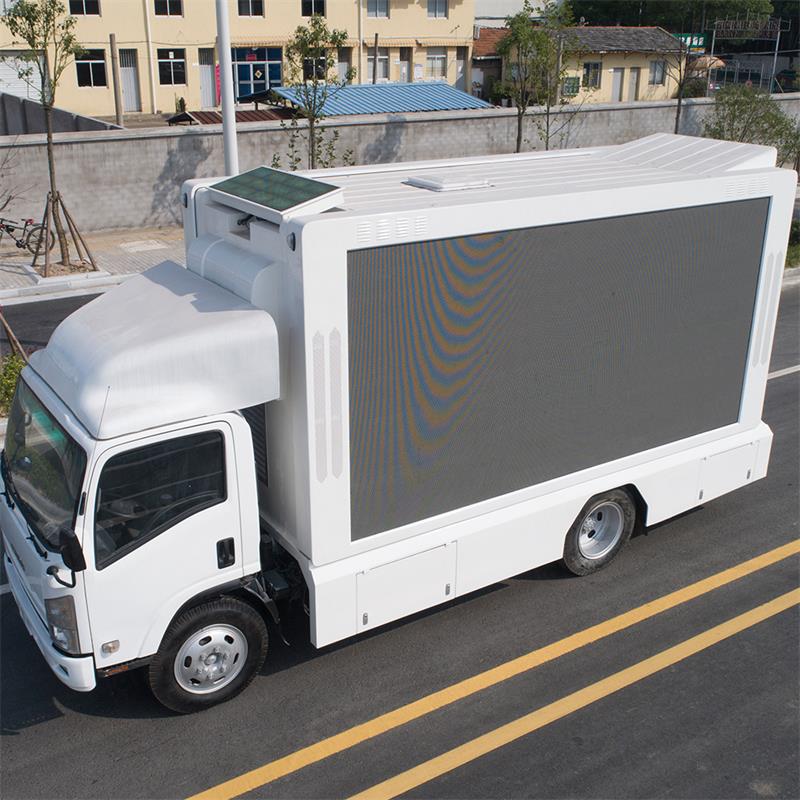

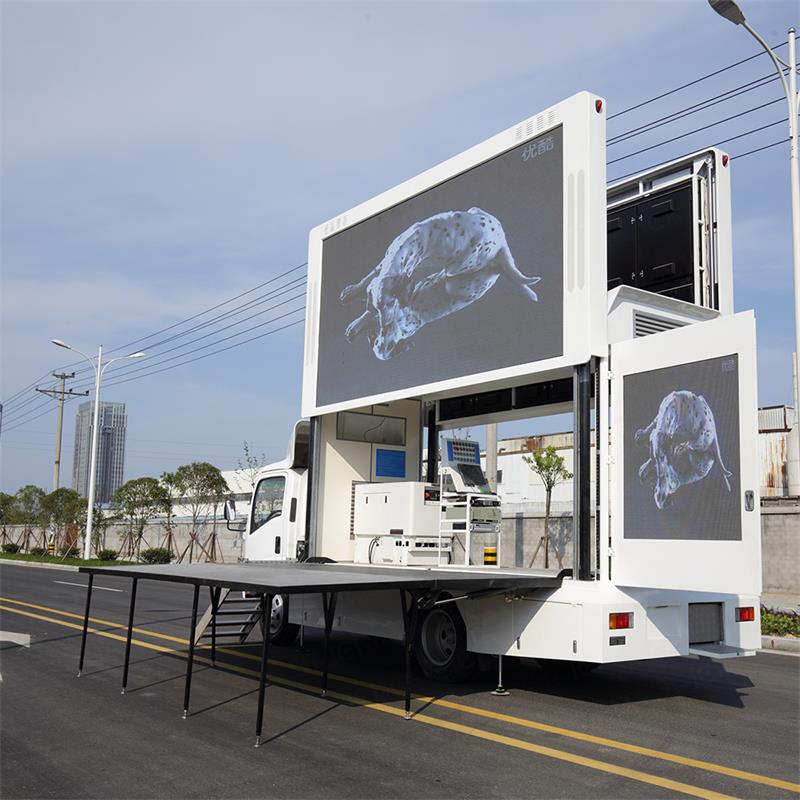

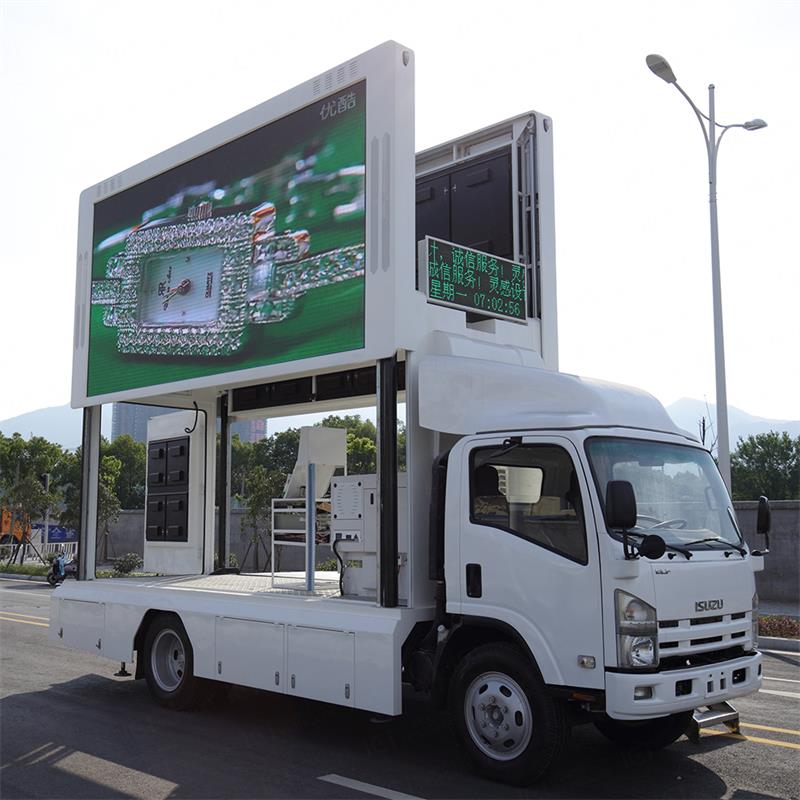

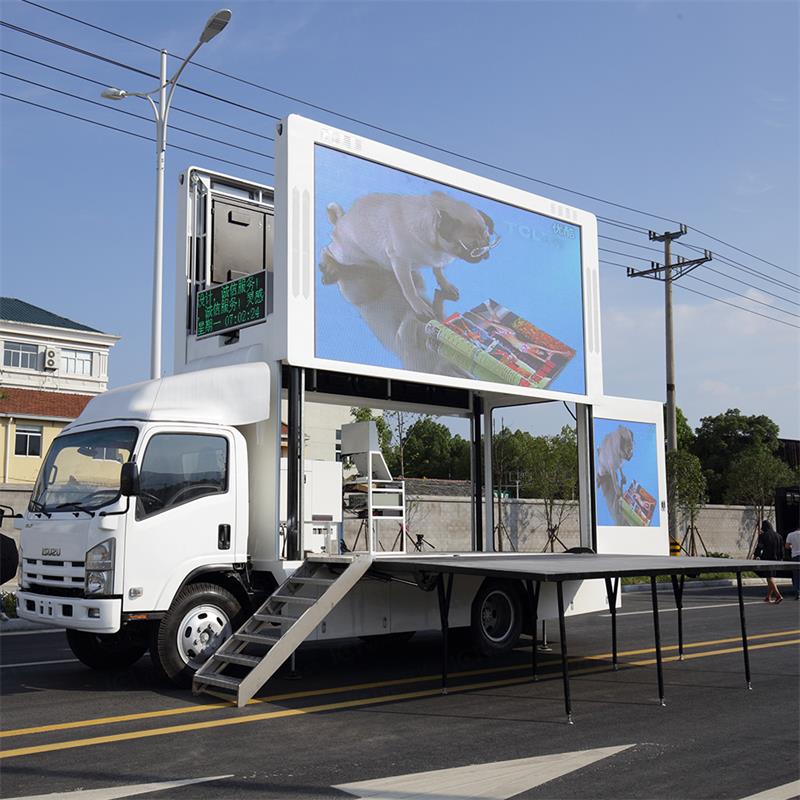

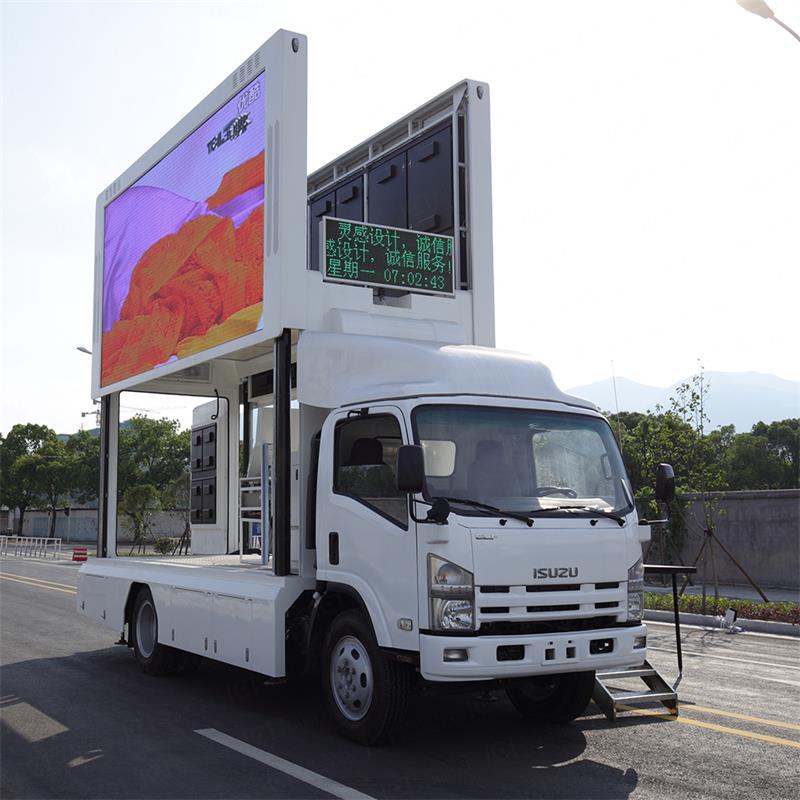

EW3815 LED advertising car selected from Chinese well-known brand-Foton Isuzu chassis as the mobile carrier, the left and right sides of the vehicle are equipped with a size of 4480mm * 2240mm outdoor LED display, the rear of the car is installed with 1280mm * 1600mm full color display, the appearance design is high-end, atmosphere, beautiful, screen playing effect is perfect. EW3815 LED advertising car is equipped with two power supply modes: one is the power for the external power supply; the other is equipped with a 24KW silent generator in the compartment, in the case of no external power supply, can use the own generator power supply, 24KW super power, fully meet the outdoor power supply demand. Not only that, the EW3815 type LED AD car has more propaganda function, the left and right sides of the LED screen can lift up and down, lift trip 2000mm, also configure the hydraulic operation stage, only need to gently press a few buttons, when the car on both sides of the screen rise up, a 5000mm * 3000mm hydraulic stage slowly, only 10 minutes, a LED AD car can change into a multi-functional stage display car, customers can use LED AD equipment held new launch, small concert and other kinds of activities.
Outdoor advertising marketing contains a huge market demand, LED advertising car with its variety of advertising advantages will provide a most valuable advertising resources for many media and businesses in the future, become the most effective way to release the advertising of products and services. We believe that the unique form of advertising, JCT's led advertising car can provide you.
