JCT great wall fire propaganda vehicle

Short Description:

Model:E-PICKUP3470


Product Detail

Product Tags

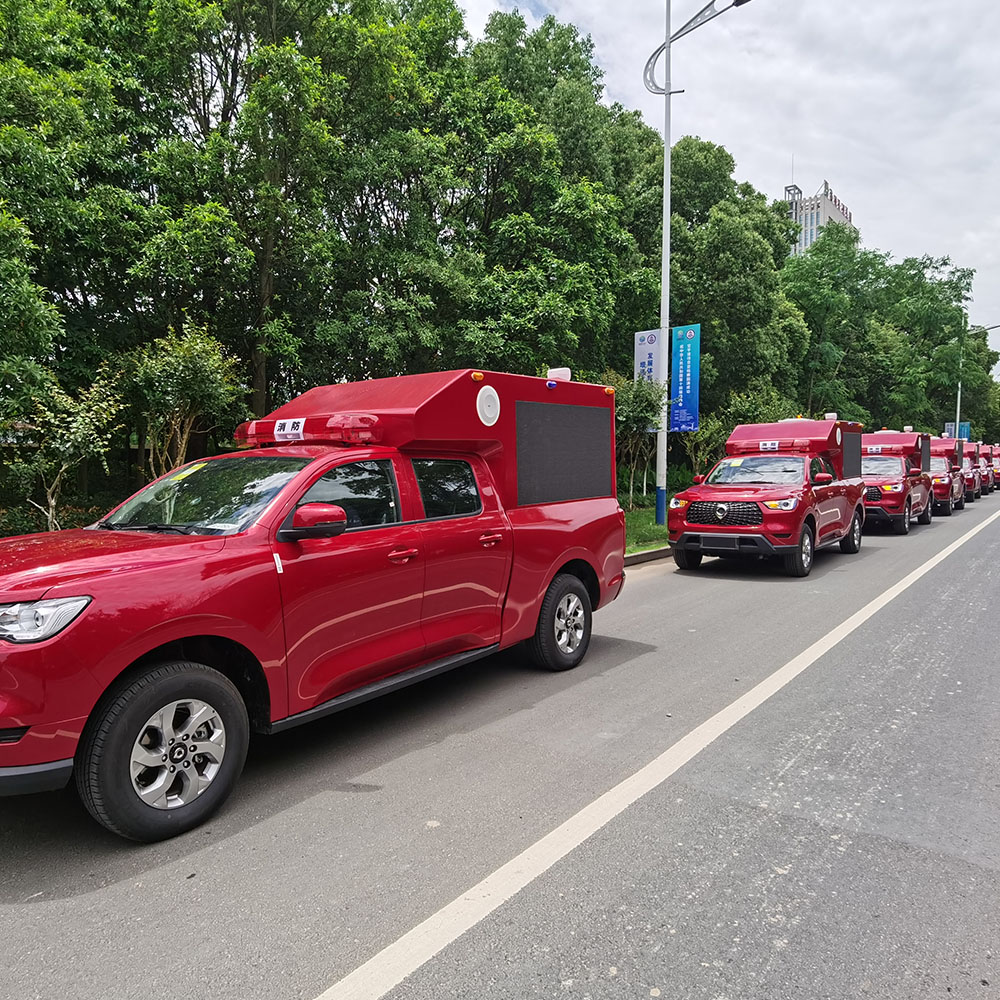

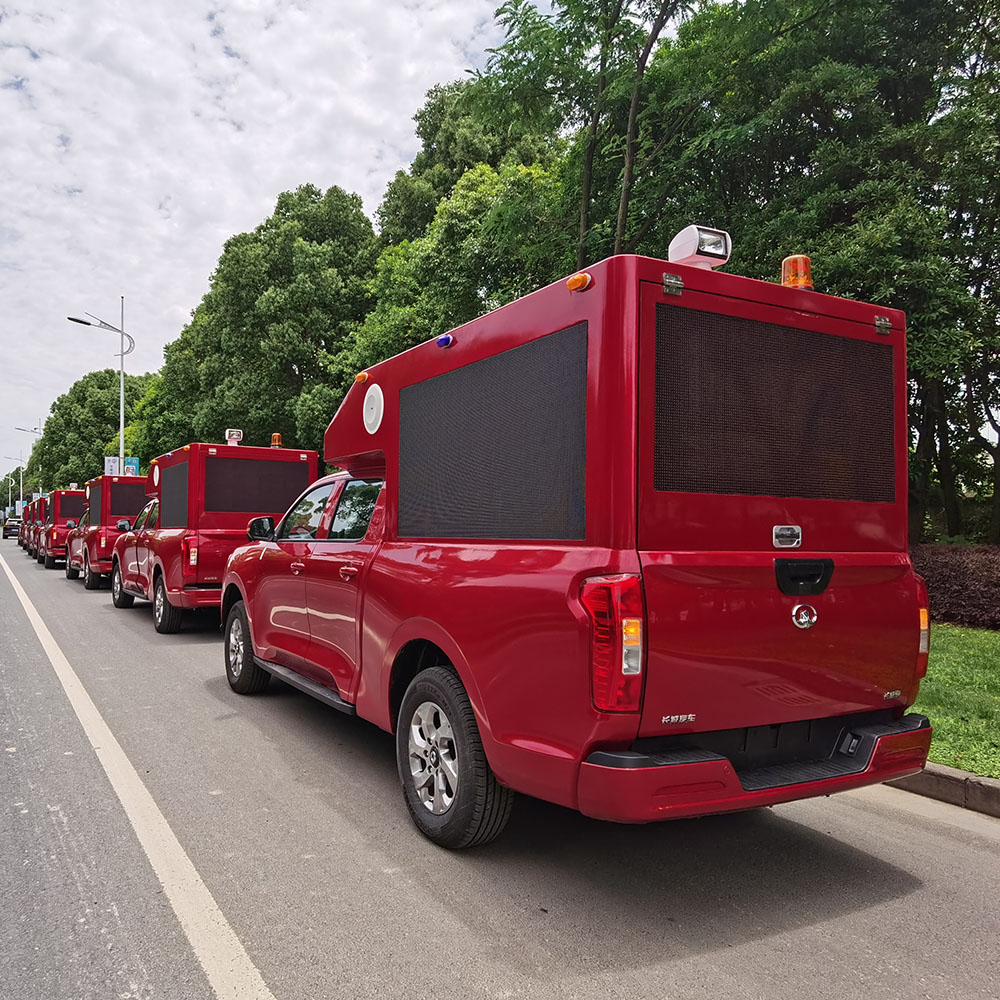

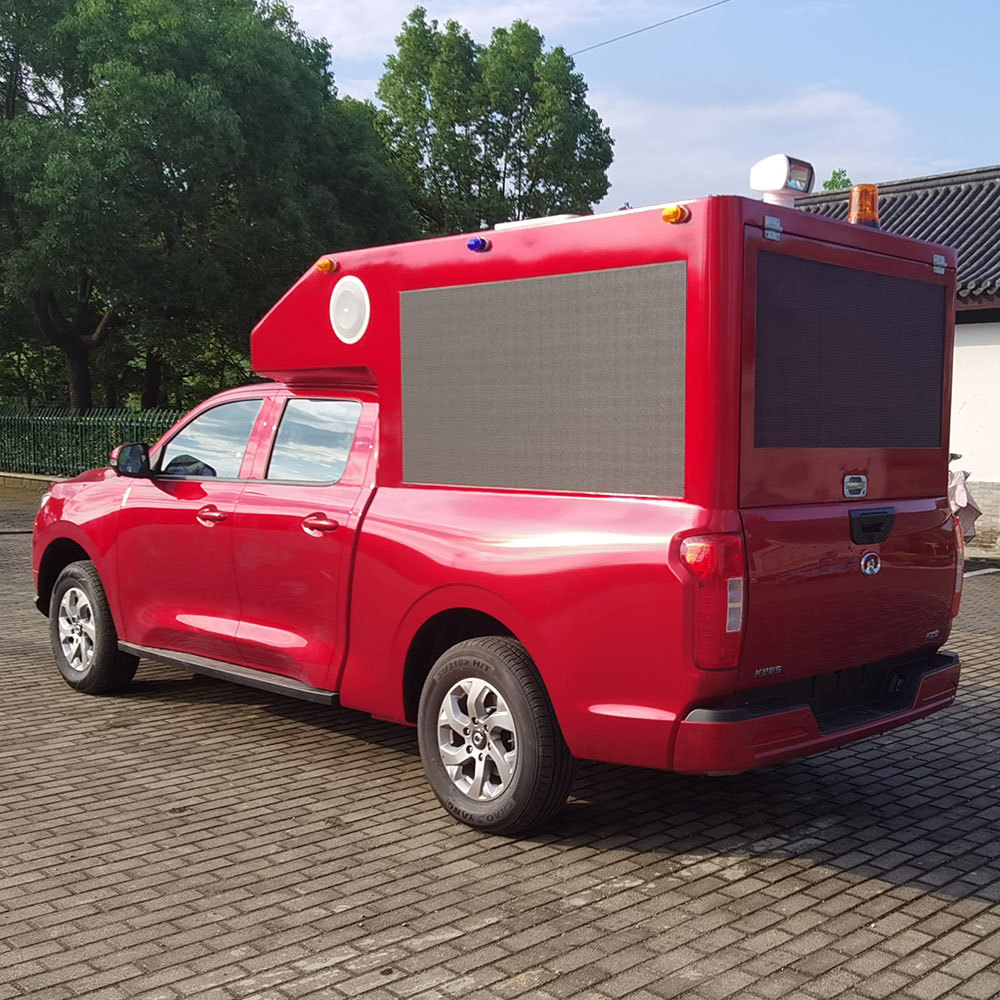

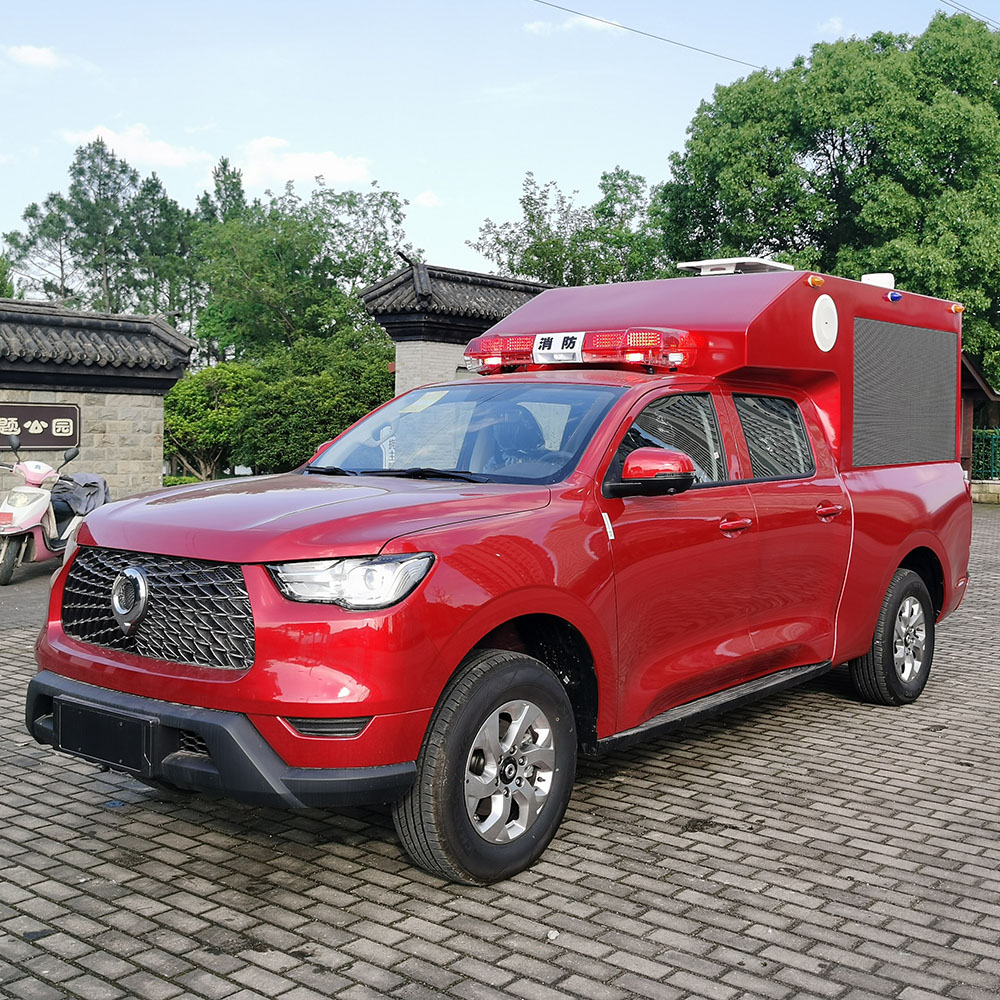

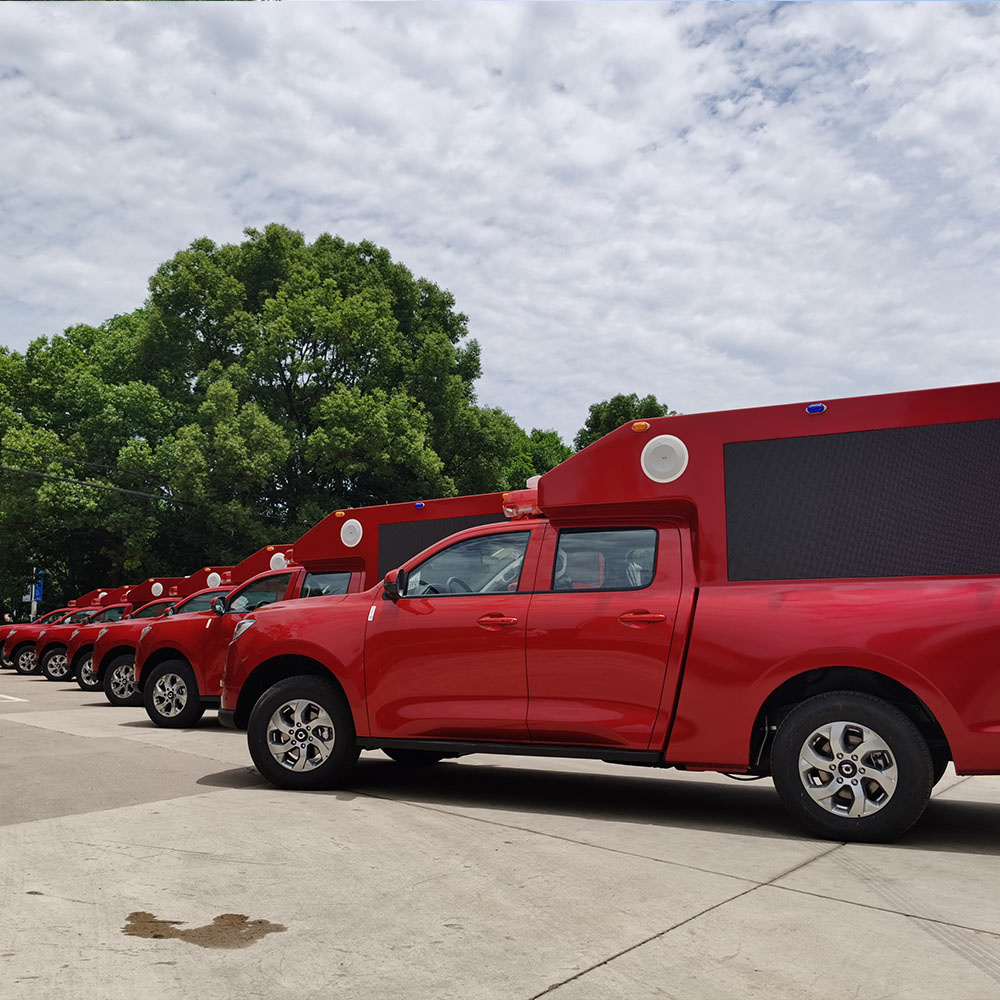

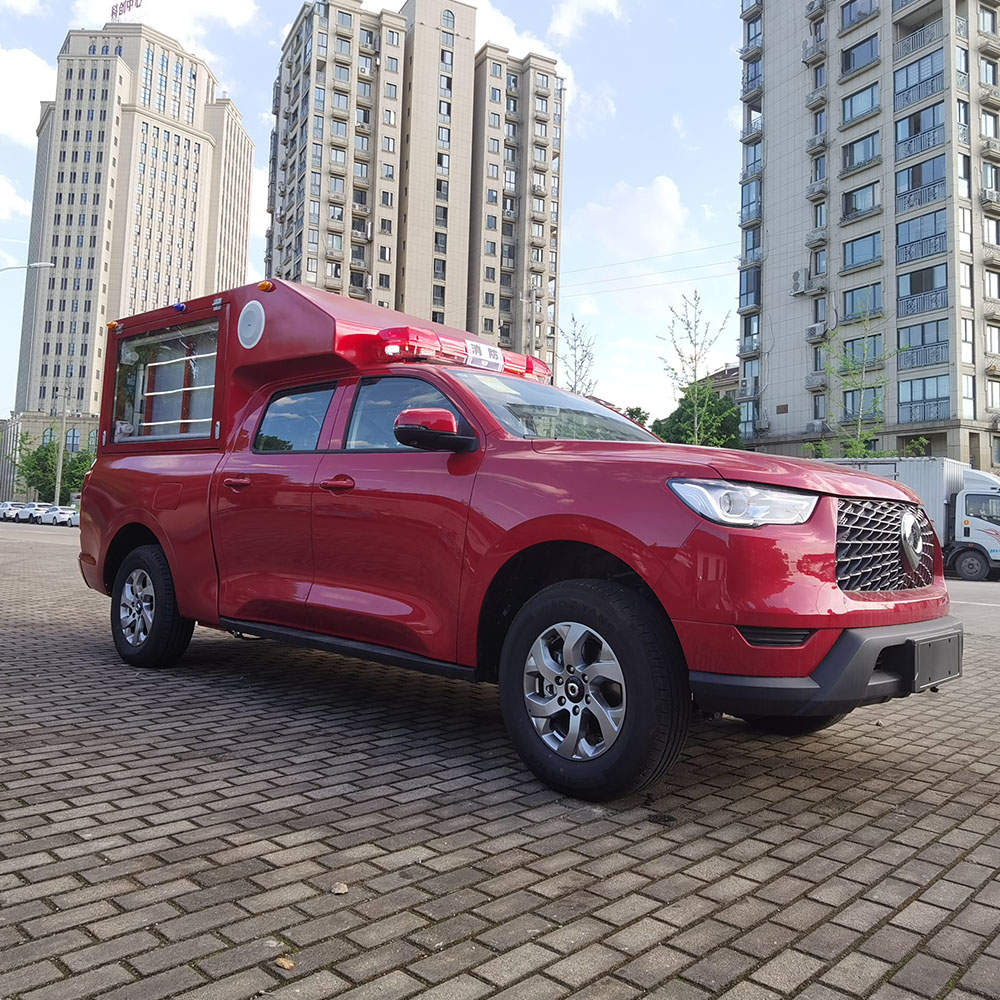

Great Wall CC1030QA20A 4WD is selected as the load-bearing chassis for Jingchuan's newly listed great wall fire propaganda vehicle. The overall body is compact and smooth. It meets the emission standard of national VI and meets the national vehicle requirements announcement. The whole vehicle of this great wall fire propaganda vehicle is made of high-quality baking paint, the color is fire red, and the body color is dazzling. The vehicle has obvious fire publicity signs, and is equipped with fire publicity and education facilities to spread fire knowledge in a mobile way or stop at a fixed point in schools, communities, rural areas and enterprises. Fire safety publicity and education can be implemented "face-to-face". This small fire propaganda vehicle can be used to prevent and respond to all kinds of fire knowledge, report fire, put out initial fire and evacuation and self rescue safety skills, so as to strengthen the interaction between fire agencies and the public.

● alarm and alarm light controller with power ≥ 200W shall be installed at the appropriate position in the cab; LED lights must be installed in the passenger compartment, control instrument panel, equipment box, etc;
● the vehicle is equipped with tire pressure monitoring system for the whole vehicle, and tire pressure display and alarm devices are installed at appropriate positions in the cab;
● the top of the cab is equipped with explosion flashing red long row alarm lights;
● the following fire publicity simulation devices are equipped: 1 set of smoke machine, 1 set of alarm, 10 sets of safety signs, 1 set, false fire simulation device and 1 set of blower device.

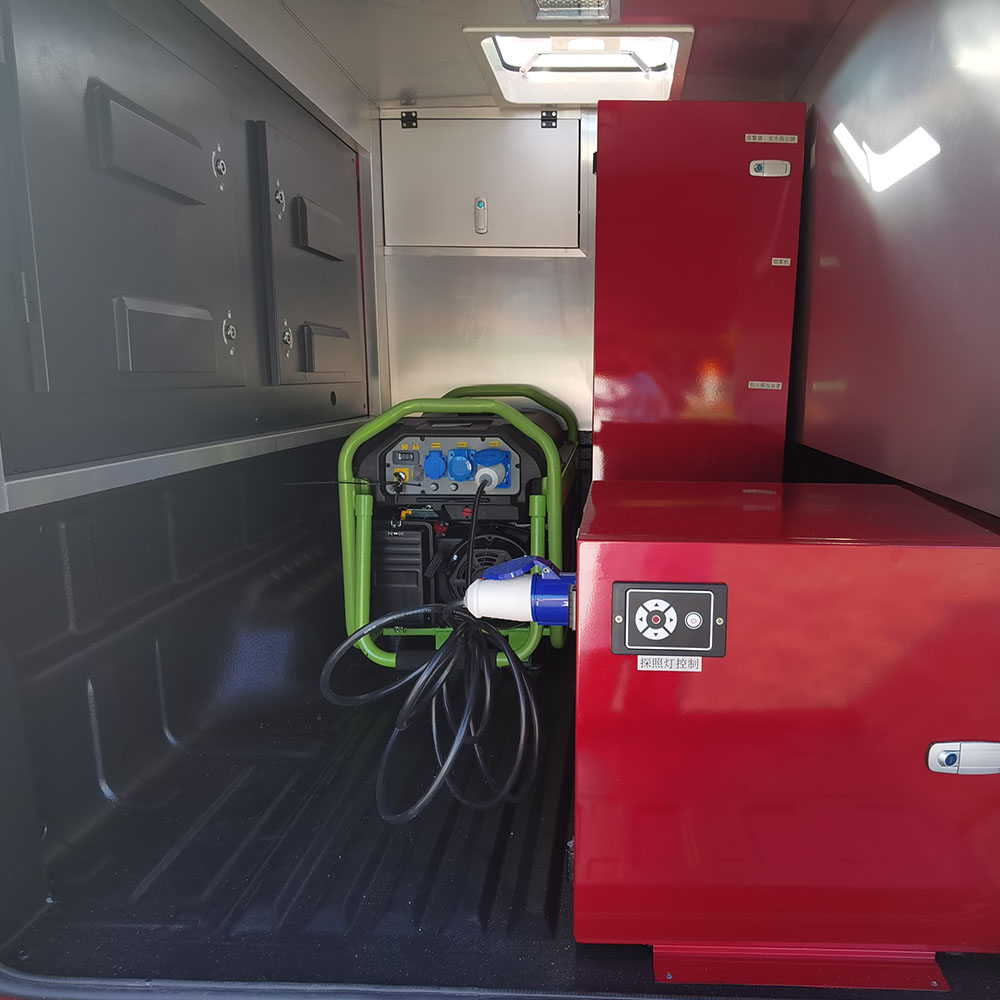

● a generator room is set in the box, and a 5kW ultra silent generator is installed inside

Model

great wall fire propaganda vehicle

Special vehicle chassis

Brand

Great wall CC1030QA20A 4WD

Overall dimension

3470×1883×2400mm

displacement

≥2.0L

emission standard

National VI

Seat

5seats





Silent generator set

power

Single phase 220V / 5kW; Manual and electric starting modes; External mains power 220V

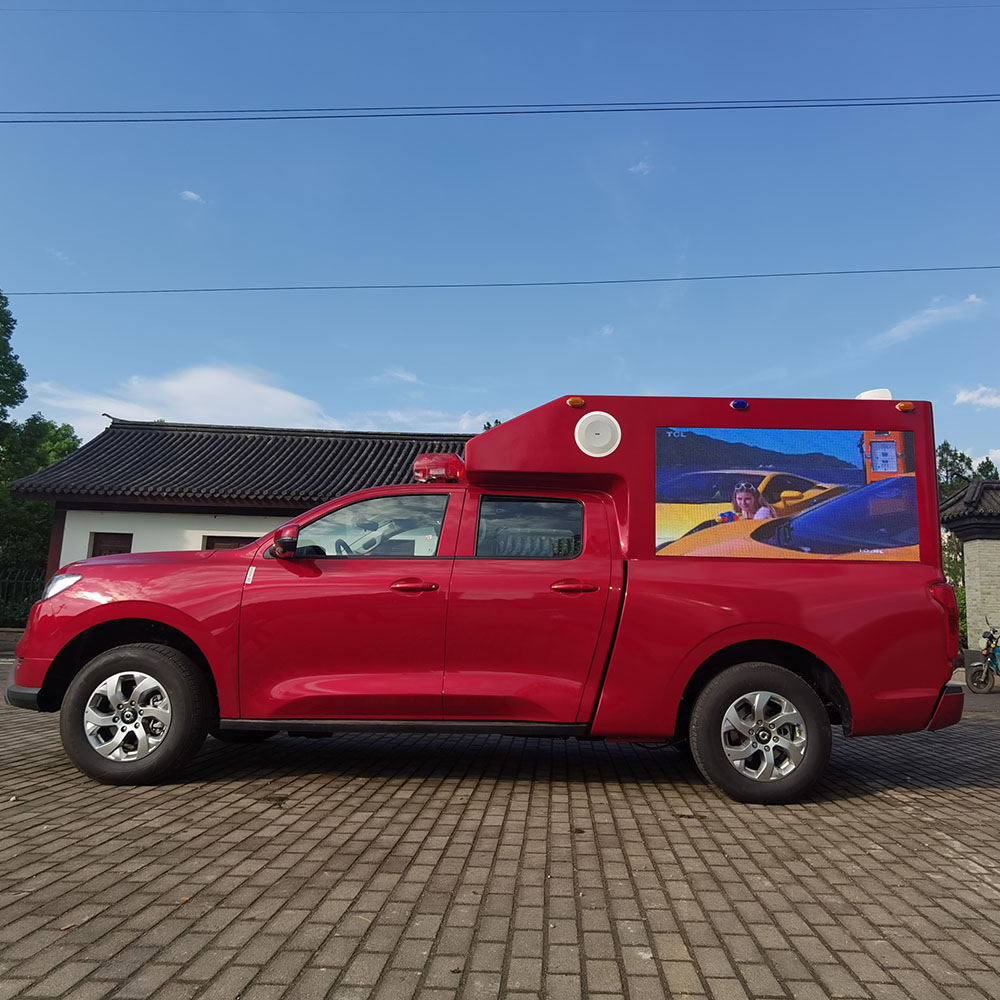

Left LED full color display

Size

1536×768mm

Dot pitch

P3/P4/P5/P6(Optional)

Life

100000 hours





Rear LED single red display

Size

1280×640mm

Dot pitch

10 mm

Life

100000 hours





Roller canvas

Size

1500×700mm

Number of canvases

4-6pcs

control mode

Intelligent remote control

Roller diameter

75mm

Power

input voltage

220V

output voltage

220V

electric current

15A

Power consumption

Average power consumption:

0.3wh/m²

Multimedia playback system (optional)

Video processor

8-channel video signal input, 4-channel output, seamless video switching

Multimedia player

Support USB flash disk playback and mainstream video and picture formats. It can expand the realization of remote playback and realize multiple playback modes such as timing, plug-in and circulation. It also supports remote volume control, timing switch and other functions.

Fire demonstration system (optional)

Fire publicity simulation device

1 set of smoke machine, 1 set of alarm, 10 sets of safety signs, 1 set of false fire simulation device and 1 set of blower device
详情图1
详情图2
详情图3
详情图4
详情图5
详情图6
详情图7
详情图8
