Naked eye 3D screen mobile led truck
| Specification | |||
| Chassis | |||
| Brand | FOTON AUMARK | Dimension | 5995x2260x3240mm |
| Power | BJ1088VFJEA-F1 115kw,ISF3.8 S3154 | Total mass | 8500 KG |
| Axle base | 3360mm | Unladen mass | 5000 KG |
| Emission standard | National standard III | Seat | 2 |
| Silent generator group | |||
| Dimension | 2060*920*1157mm | Power | 24KW diesel generator set |
| Voltage and frequency | 380V/50HZ | Engine: | AGG, engine model: AF2540 |
| Motor | GPI184ES | Noise | Super silent box |
| Others | electronic speed regulation | ||
| LED full color screen (Left and right+Rear side) | |||
| Dimension | 4000mm(W)*2000mm(H)+2000*2000mm | Module size | 250mm(W) x 250mm(H) |
| Light brand | Nationstar light | Dot Pitch | 3.91mm |
| Brightness | ≥5000CD/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 230w/㎡ | Max Power Consumption | 680w/㎡ |
| Power Supply | Meanwell | DRIVE IC | ICN2153 |
| Receiving card | Nova MRV316 | Fresh rate | 3840 |
| Cabinet material | Die casting aluminum | Cabinet weight | aluminum 7.5kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 65410 Dots/㎡ |
| Module resolution | 64*64Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7 | ||
| Control system | |||
| Video processor | NOVA V600 | Receiving card | MRV416 |
| Luminance sensor | NOVA | ||
| Power parameter (external prower supply) | |||
| Input voltage | 3phases 5 wire 380V | Output voltage | 220V |
| Inrush current | 70A | Average power consumption | 230wh/㎡ |
| Sound system | |||
| Power amplifier | 750W | Speaker | 100W,4 pcs |
Installing the naked-eye 3D LED screens on mobile trucks has multiple benefits. First, it can be used to attract and capture people's attention immediately, as 3D images are often very eye-catching in outdoor environments. This makes the truck a mobile advertising platform that increases brand exposure and marketing. Second, this technology can be used to provide visually compelling information and entertainment that captures the attention of pedestrians and vehicle drivers. In addition, this technology can improve interactivity, such as by displaying attractive 3D effects to attract people to interact with the truck. Overall, installing naked-eye 3D LED screens on mobile trucks can provide an innovative way to promote brands, convey information and attract attention.
Specification:
1、P3.91 left and right side screen，Nationstar light
2、Screen size:4000mm*2000mm*double sided.

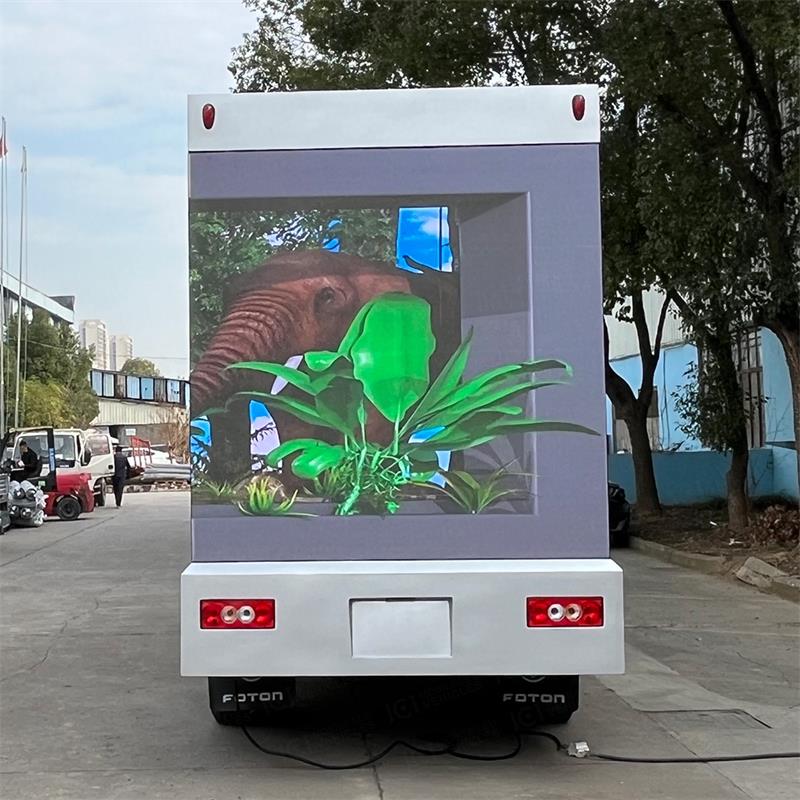

3、Rear side screen size:2000*2000mm
4、24KW generator set
5、with P3.91 led screen
6、Wheelbase:left drive 3360mm

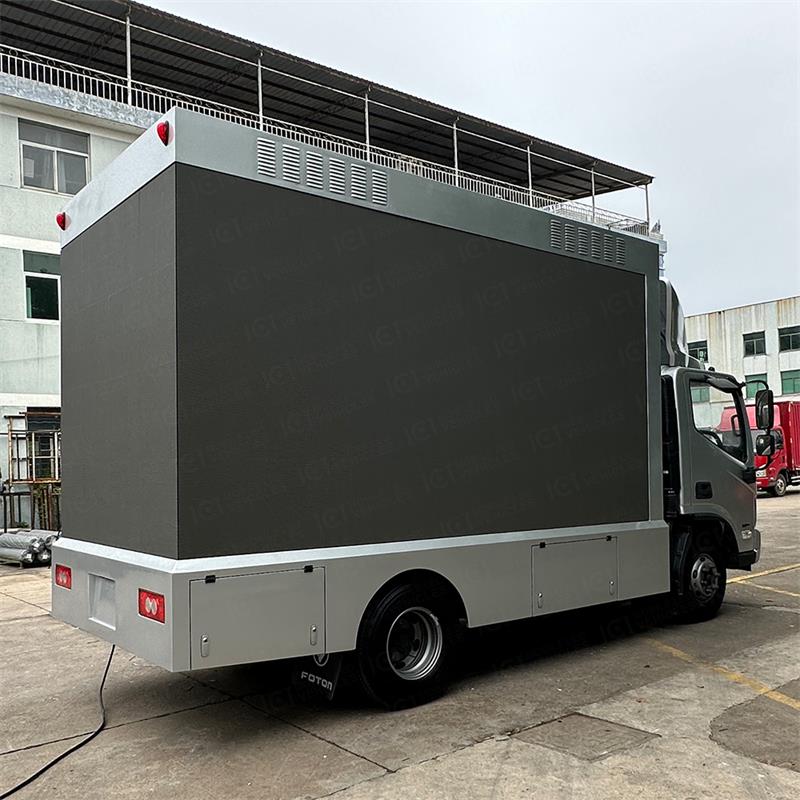

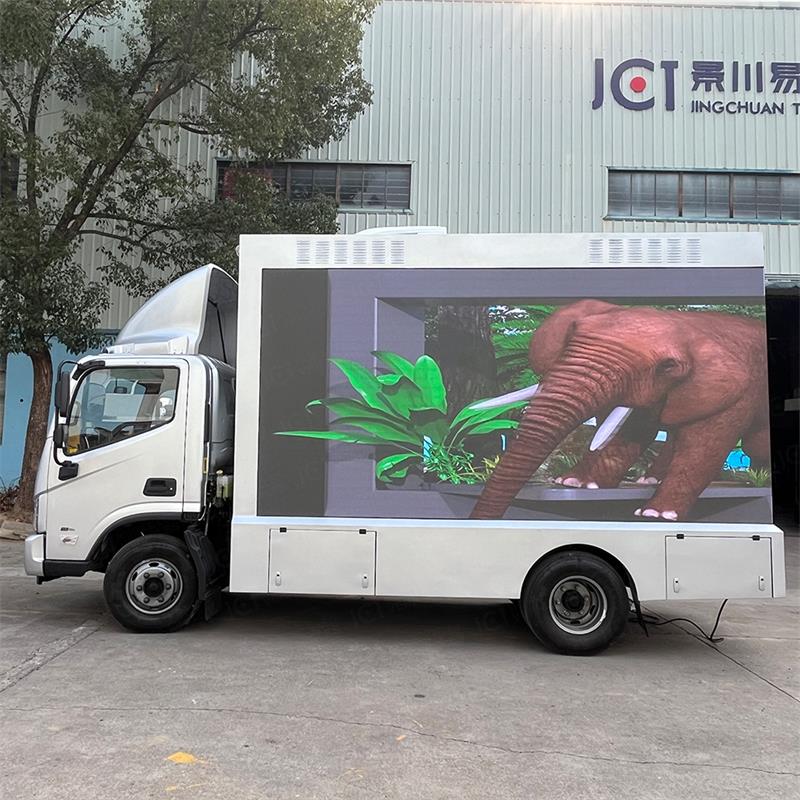

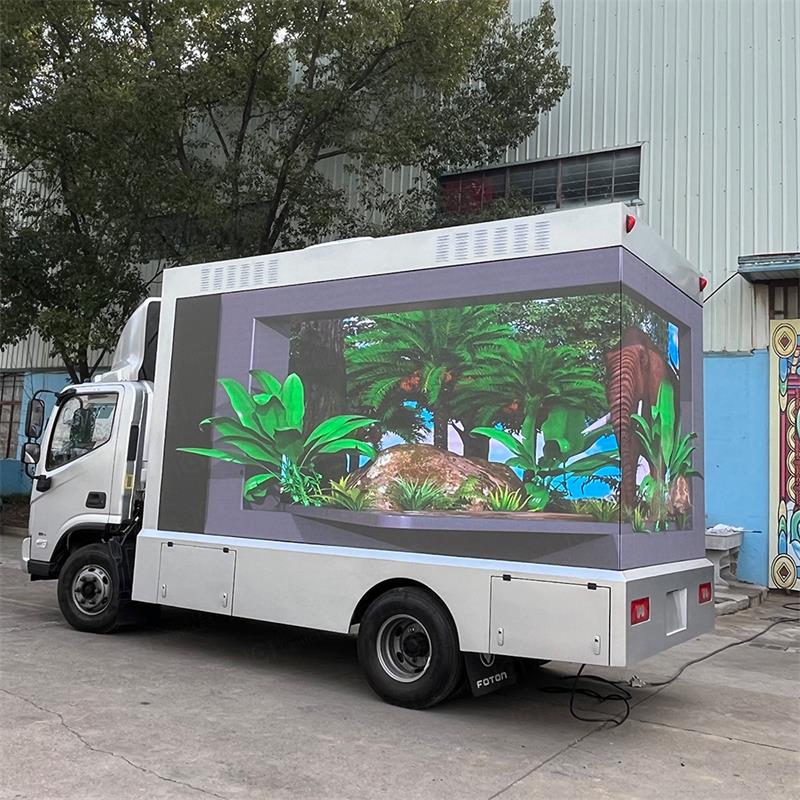

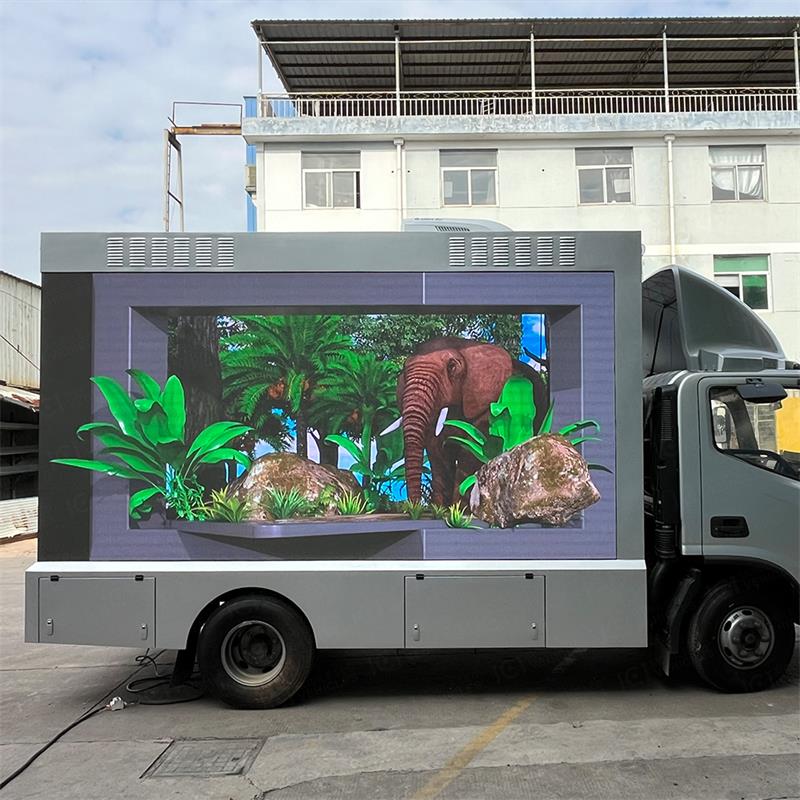

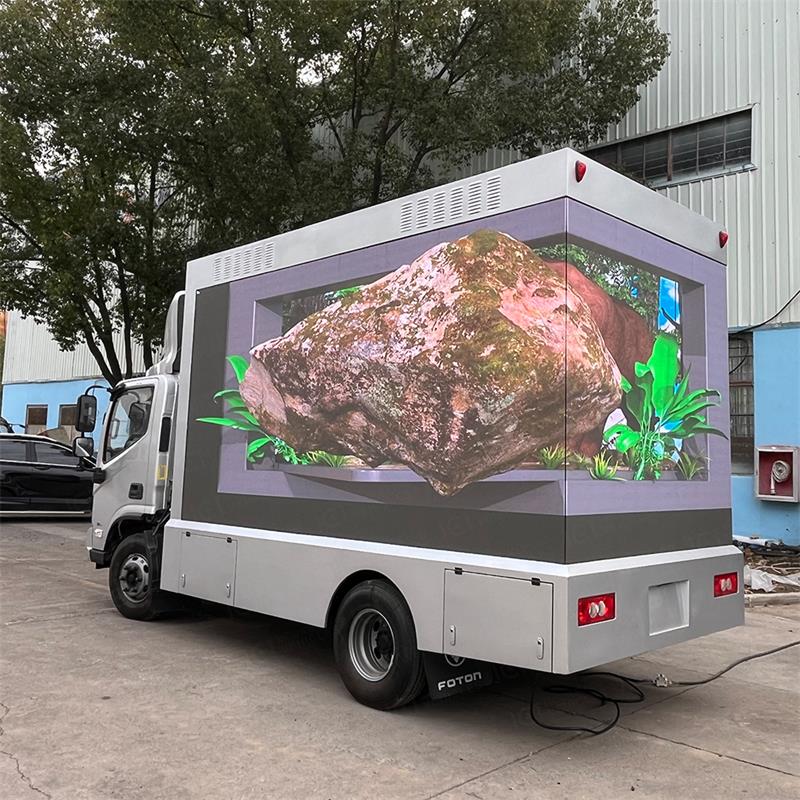

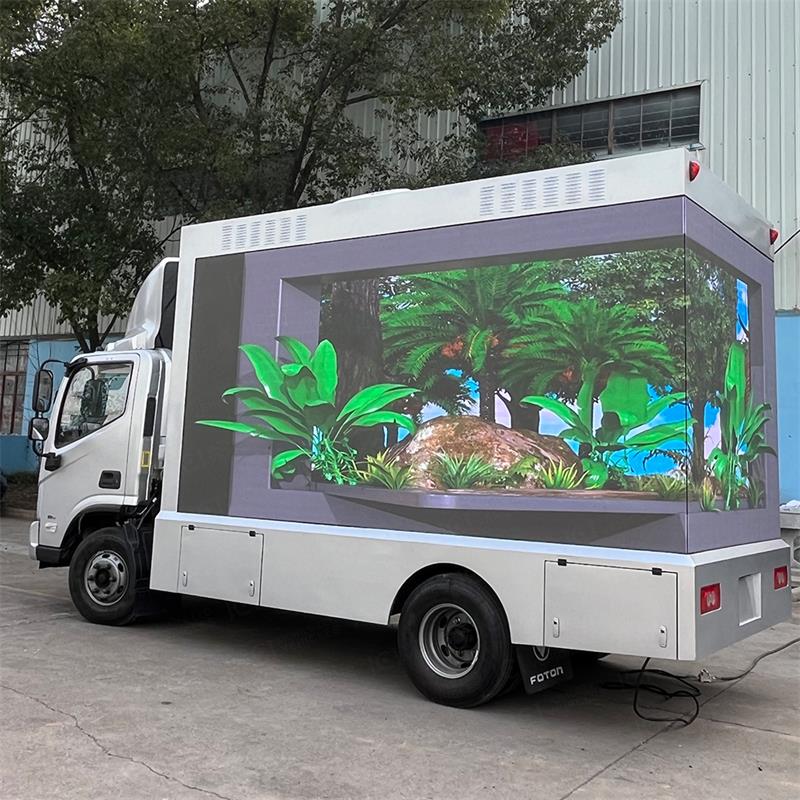

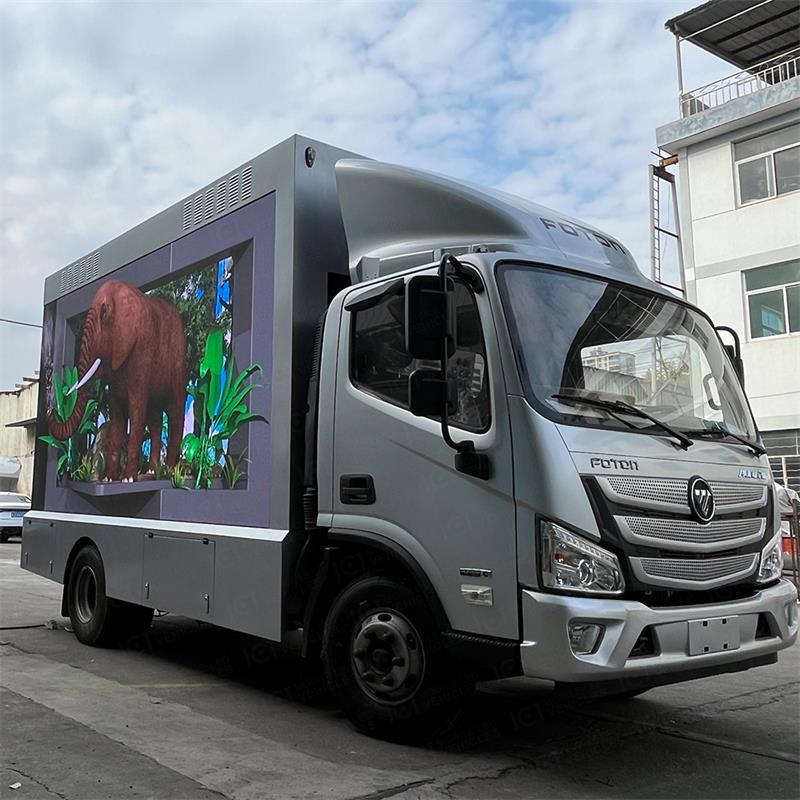

JCT EW3360 Bezel-less 3D truck is equipped with a multimedia playback system, supports U disk playback, and supports mainstream video format. It has become an advertising terminal that can move freely, change information, communication strategies and locations at any time. It plays a important role in product promotion and attracts customers. It is a new advertisement communication carrier that integrates advertising, information release, and live broadcast. It is the first choice for users to promote.
