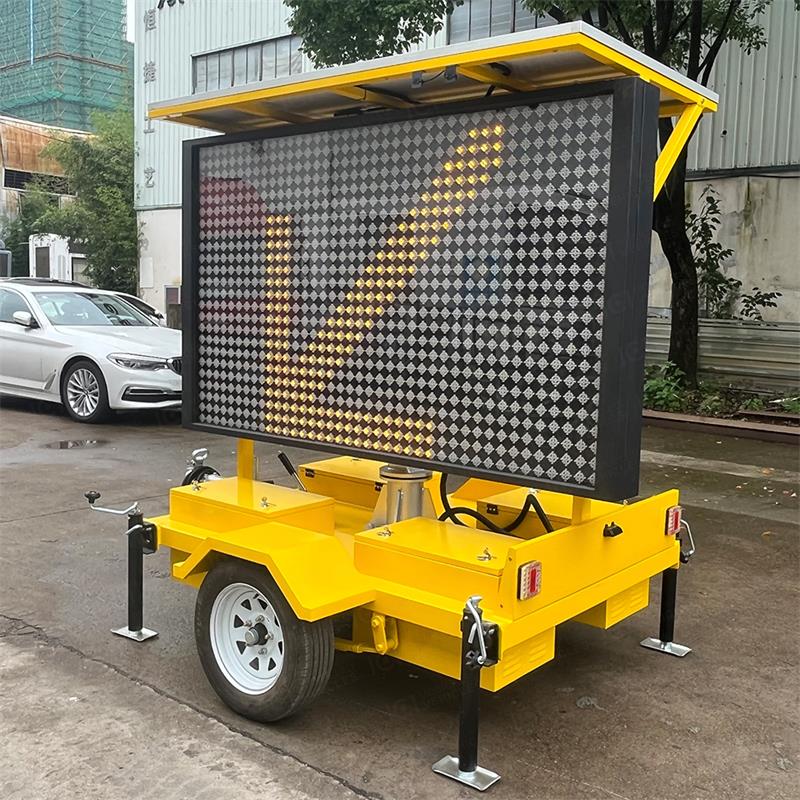

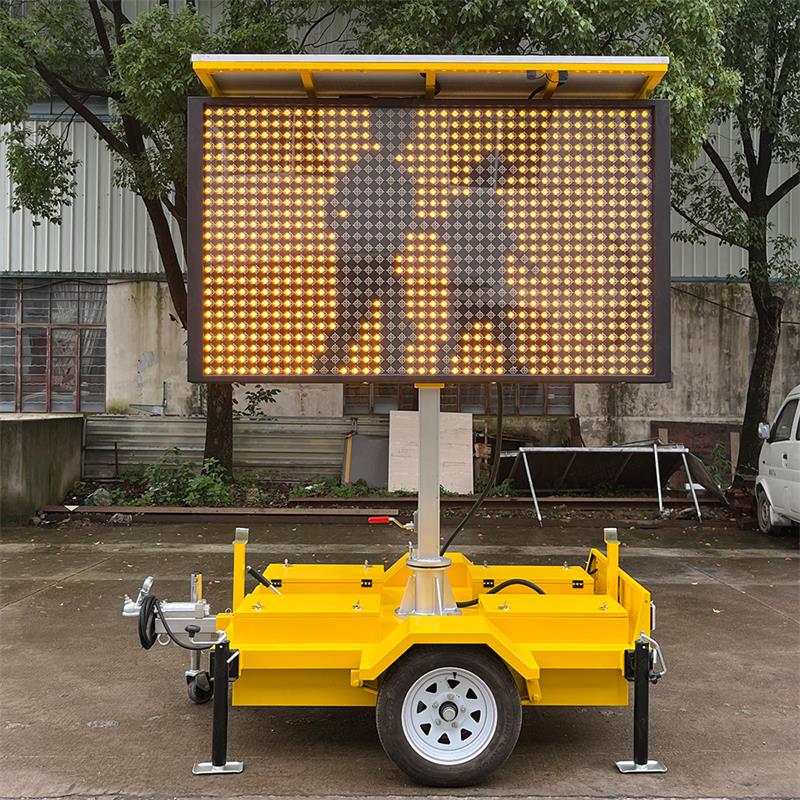

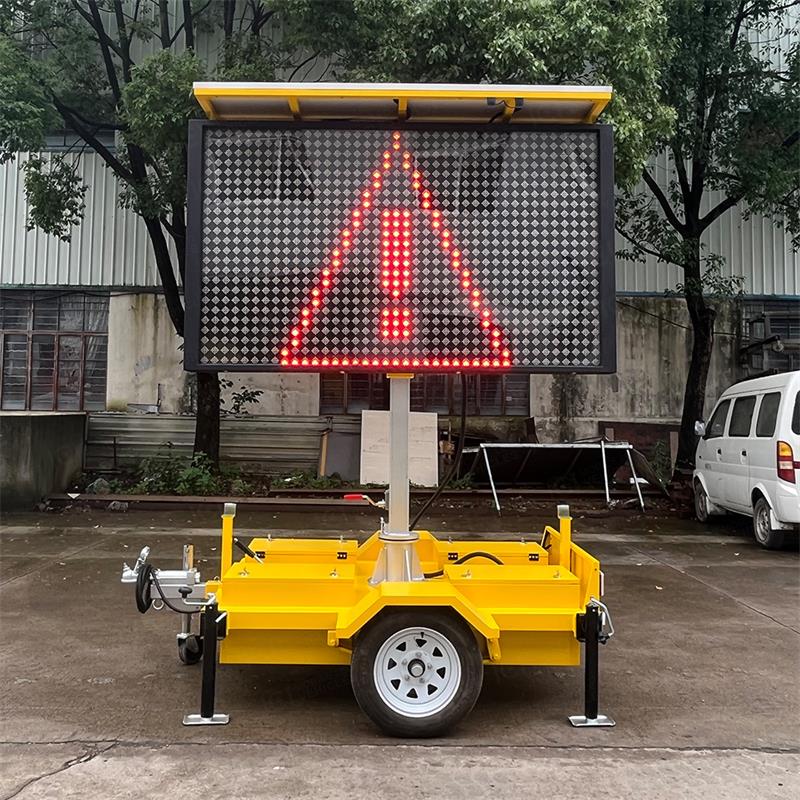

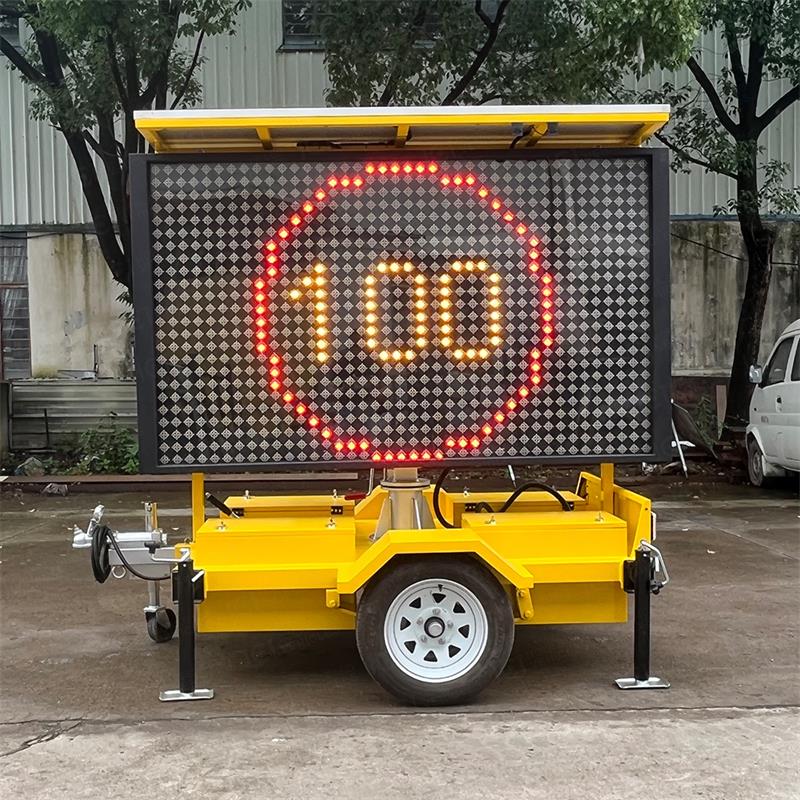

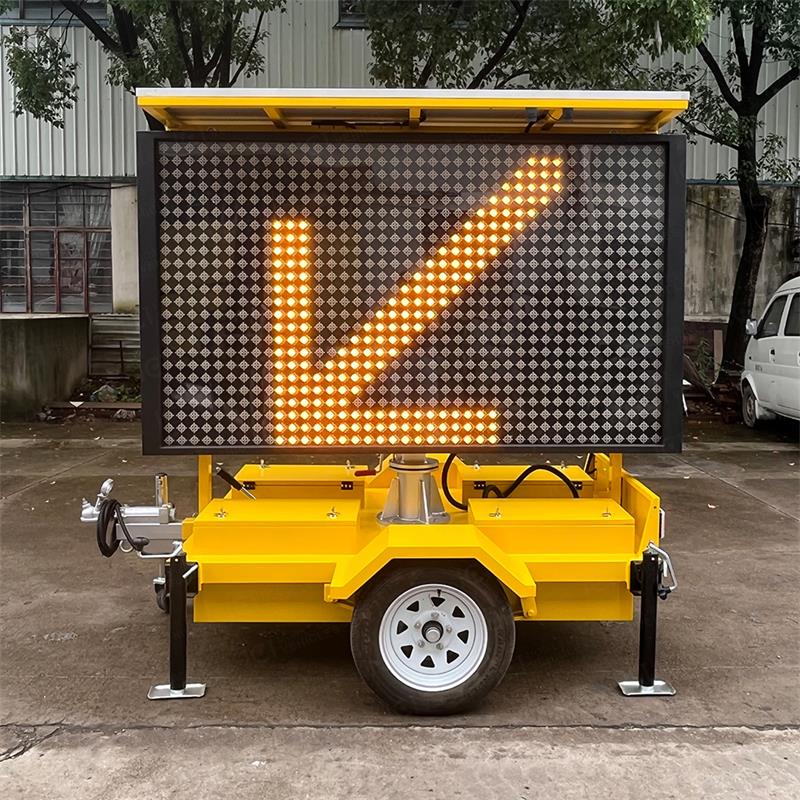

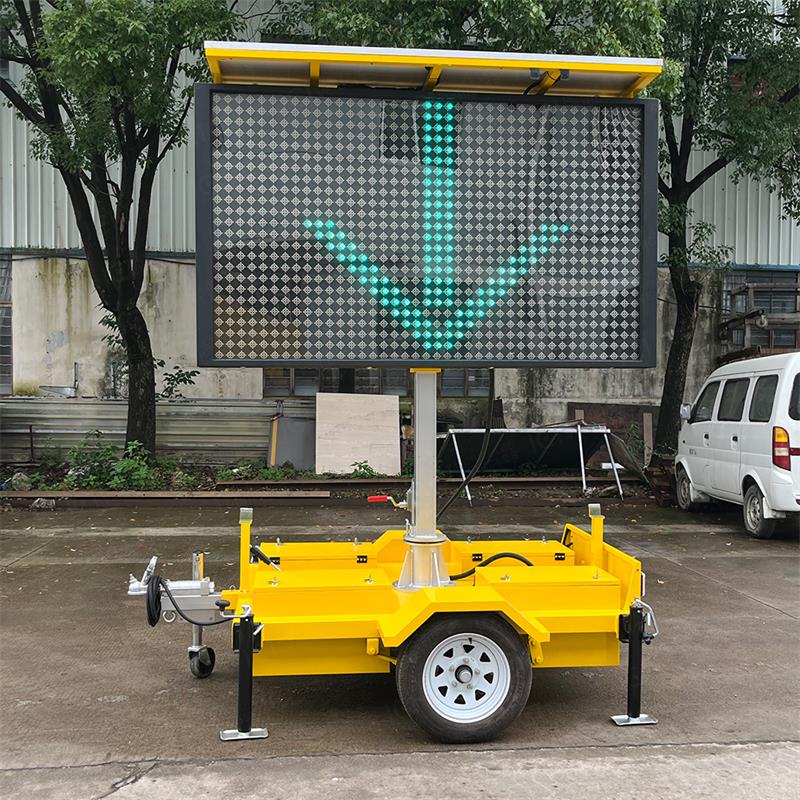

JCT VMS solar led trailer integrates solar energy, LED single yellow display and mobile advertising trailers. It breaks through the previous traffic trailers that need to find an external power supply or the limitations of only be fixed in one place. JCT VMS solar led trailer directly adopts the solar independent power supply mode, and can provide uninterrupted power supply 24 hours a day, 365 days a year. JCT VMS solar led trailer is more conducive to environmental protection, conforms to the new energy conservation policy. It is safe and reliable, and does not require much maintenance.
JCT VMS solar led trailer is used to release highway weather information, highway construction information, highway blocking information, road surface condition information, recommended detour plan information, highway dynamic operation information, and provide highway information for drivers. JCT VMS solar led trailer has a long service life, high brightness, low energy consumption, and can operate stably under harsh conditions. At the same time, this batch of JCT VMS solar led trailer also integrate a new system of support, hydraulic lifting, and rotation functions. The rotating guide pillar independently developed by Jingchuan Company can realize the LED screen's visual range of 360° without dead Angle, and further enhance the transmission effect. It is especially suitable for applications in crowded places such as downtown, assembly, outdoor sports events, etc. The orange trailer's chassis can attract the attention of the audience at a glance, allowing drivers or pedestrians to see the released information from a distance.
Advantages of JCT VMS solar led trailer:
1. Large light-emitting chip, low power consumption, energy saving, and supports mixed graphics and text display;
2. High brightness, reasonable viewing angle, intelligent brightness adjustment, the display content is still clearly visible under direct sunlight;
3. Equipped with self-checking function of equipment running status, timely feedback and maintenance;
4. VMS solar led trailer supports multiple communication methods, with adaptive communication interruption function;
5. With reset function, automatic data storage function and remote parameter setting function, it is safe, reliable and convenient;
6. It satisfies the all-weather outdoor working environment, and has high protection performance in terms of rain, moisture, corrosion, and lightning protection.
Specification | ||||||
Trailer appearance | ||||||
Trailer size | 2382×1800×2074mm | Supporting leg | 440~700 load 1 tons | 4 PCS | ||
Total weight | 629KG | Connector | 50mm ball head, 4 hole Australian impact connector, | |||
torsion shaft | 750KG 5-114.3 | 1 pce | Tire | 185R12C 5-114.3 | 2 pcs | |
Max speed | 120Km/h | Axle | Single axle | |||
Breaking | Hand brake | RIM | SIZE:12*5.5、PCD:5*114.3、CB:84、ET:0 | |||
led parameter | ||||||
Product name | 5 colors variable induction screen | Product type | D50-20A | |||
LED screen size: | 2000*1200mm | Input voltage | DC12-24V | |||
Cabinet size | 2140*1260mm | Cabinet material | aluminum and Transparent acrylic board | |||
Average power consumption | 20W/m2 | Maximum power consumption | 50W | Whole screen power consumption | 20W | |
Dot pitch | P50 | Pixel density | 400P/M2 | |||
Led Model | 510.00 | Module Size | 400mm*200mm | |||
Control mode | asynchronous | Maintenance method | Front maintenance | |||
Led brightness | >8000 | Protection grade | IP65 | |||
Power parameter (external prower supply) | ||||||
Input voltage | 9-36V | Output voltage | 24V | |||
Inrush current | 8A | |||||
Multimedia control system | ||||||
receiving card | 2pcs | STM32 with 4G module | 1 pc | |||
Luminance sensor | 1pc | |||||

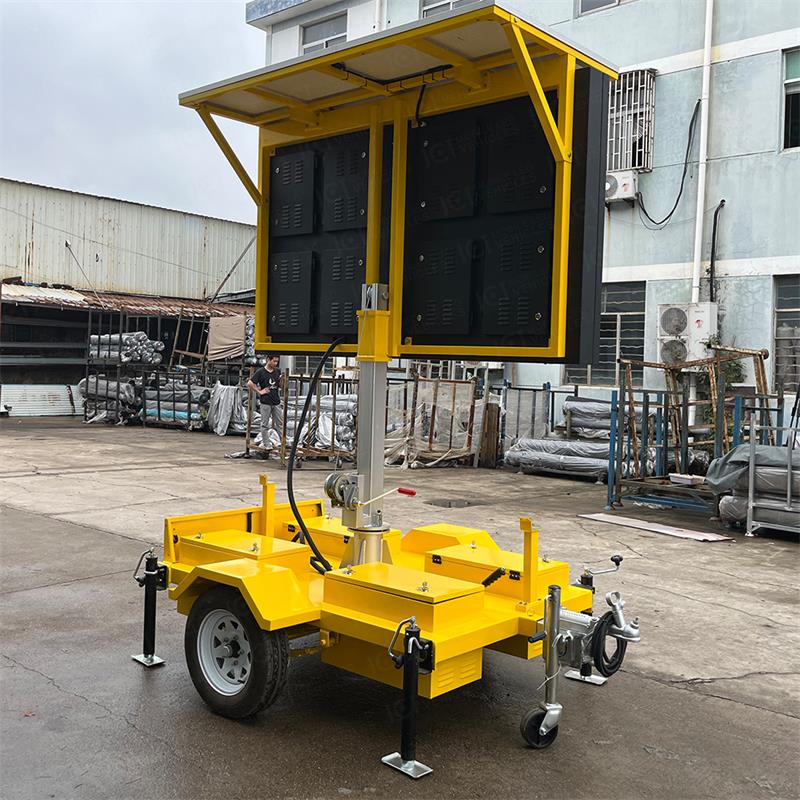

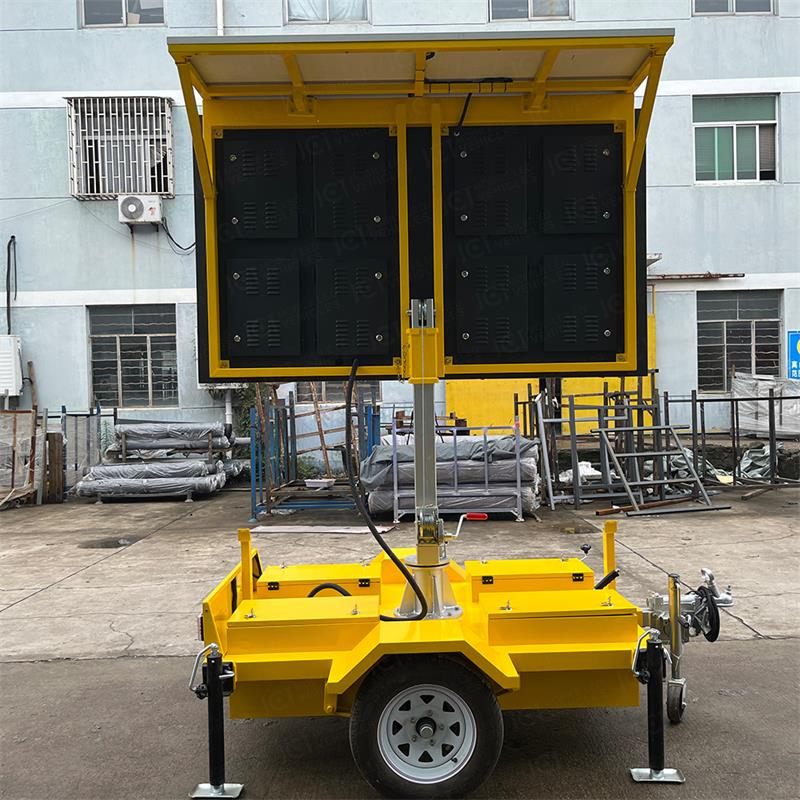

Manual lifting | ||||||
manual lifting: | 800mm | Manual rotation | 330 degrees | |||

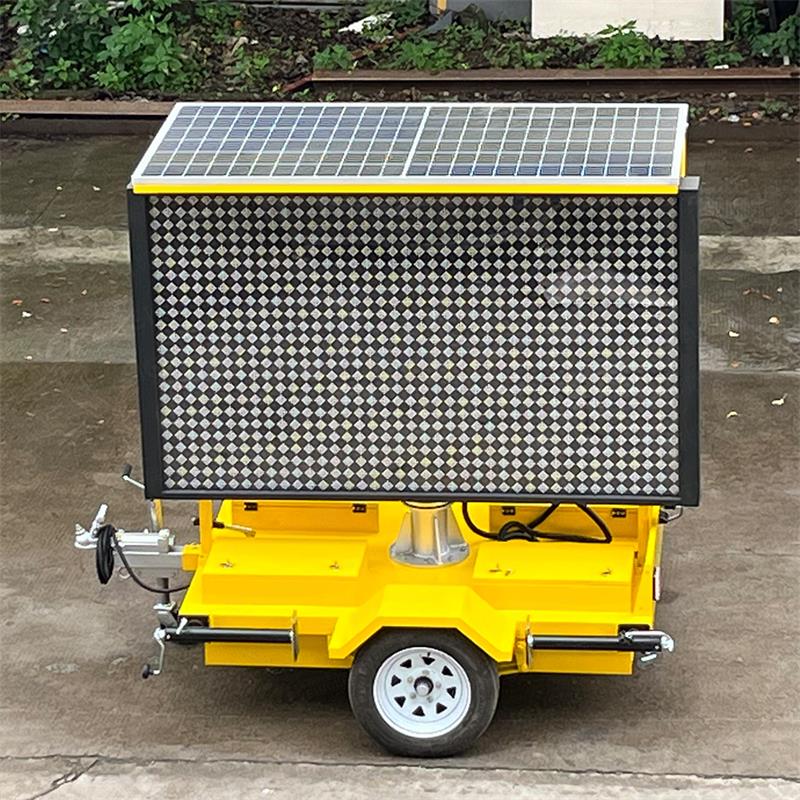

solar panel | ||||||
Size | 2000*1000MM | 1 PCS | power | 410W/pcs | Total 410W/h | |
Solar controller(Tracer3210AN/Tracer4210AN) | ||||||
input voltage | 9-36V | Output voltage | 24V | |||
Rated charging power | 780W/24V | Maximum power of photovoltaic array | 1170W/24V | |||
The battery | ||||||
Dimension | 510×210x200mm | Battery specification | 12V150AH*4 pcs | 7.2 KWH | ||
Advantages: | ||||||
1, can lift 800MM, can rotate 330 degrees. | ||||||
2, equipped with solar panels and converters and 7200AH battery, can achieve 365 days a year continuous power supply LED screen. | ||||||
3, with brake device! | ||||||
4, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. | ||||||
5, with 7 core signal connection head! | ||||||
6, with tow hook and telescopic rod! | ||||||
7. 2 tire fenders | ||||||
8, 10mm safety chain, 80 grade rated ring | ||||||
9, reflector, 2 white front, 4 yellow sides, 2 red tail | ||||||
10, the whole vehicle galvanized process | ||||||
11, brightness control card, automatically adjust brightness. | ||||||
12,VMS can be controlled wirelessly or wirelessly! | ||||||
13. Users can remotely control LED SIGN by sending SMS messages. | ||||||
14, equipped with GPS module, can remotely monitor the position of VMS. |
