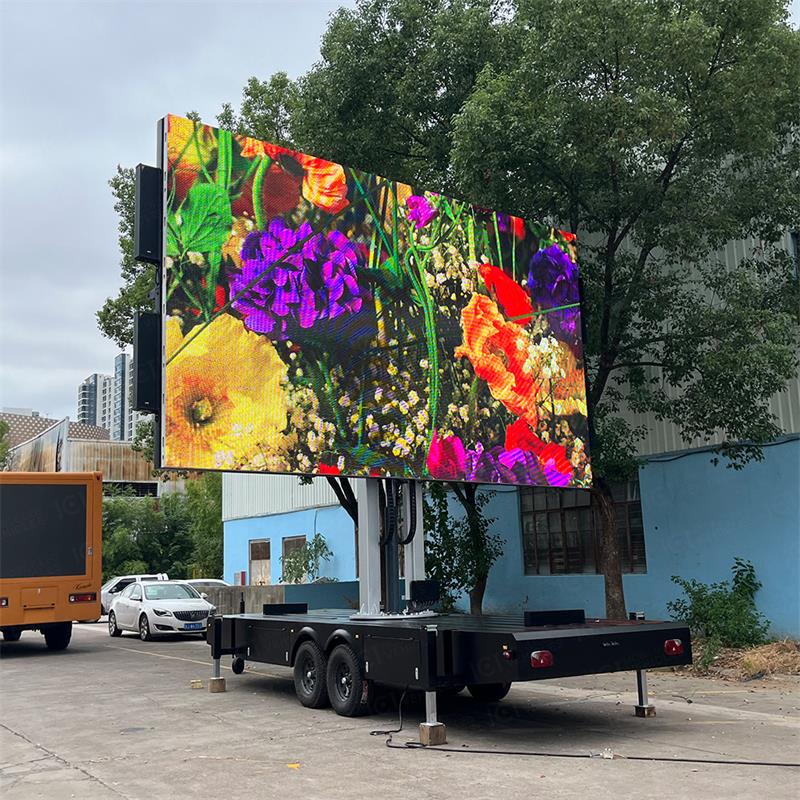

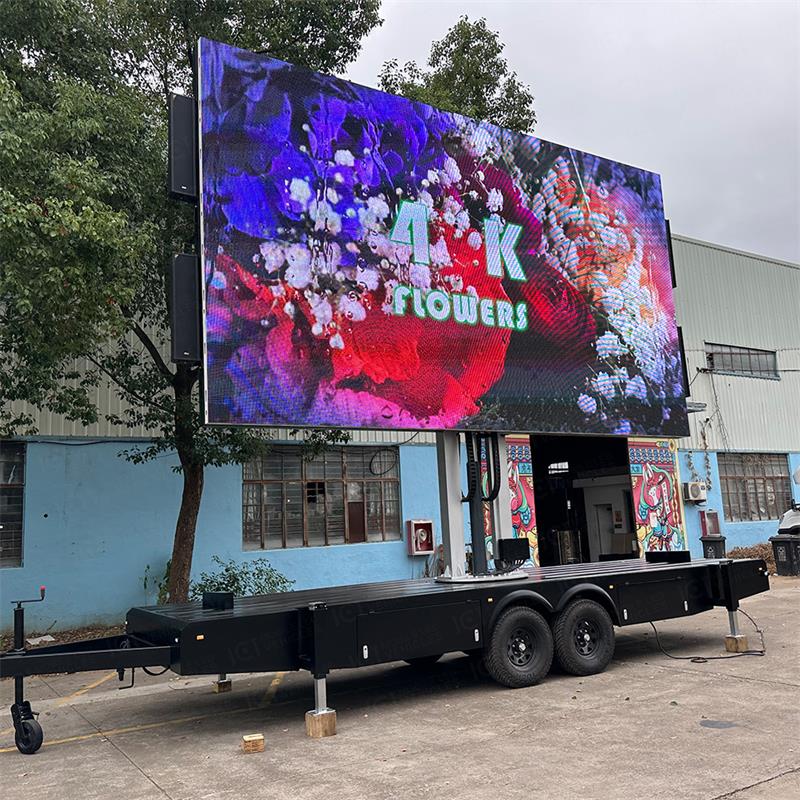

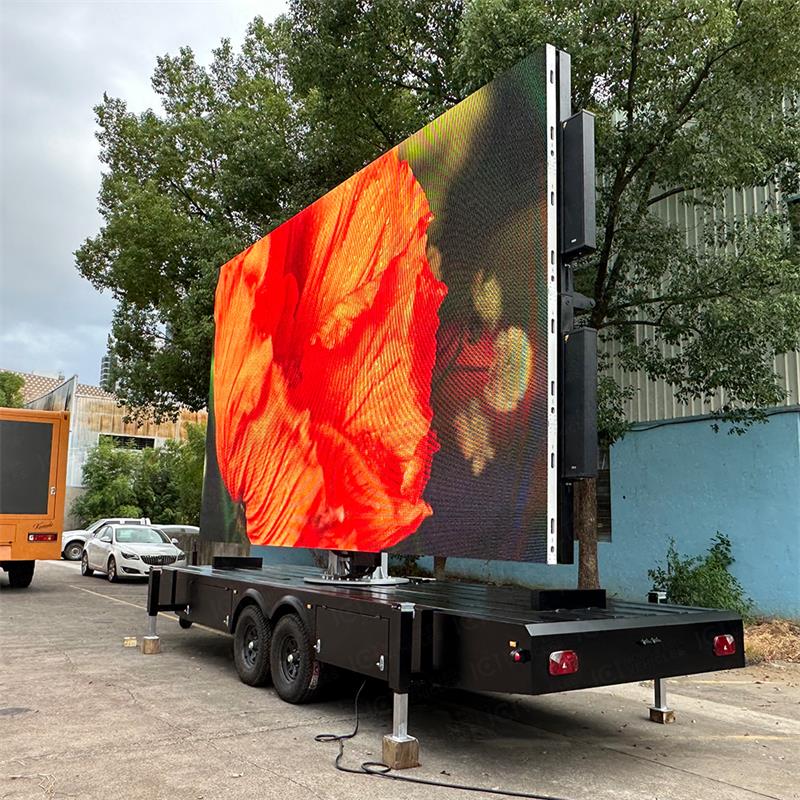

26㎡ mobile led trailer for sporting events
| Specification | |||
| Trailer appearance | |||
| Gross weight | 4000kg | Dimension (screen up) | 8500×2100×2955mm |
| Chassis | German-Made AIKO,Bearing 5000KG | Max speed | 120Km/h |
| Breaking | Electric brake | Axle | 2 axles,5000kg |
| LED Screen | |||
| Dimension | 6500mm*4000mm | Module Size | 250mm(W)*250mm(H) |
| Light brand | Nationstar | Dot Pitch | 4.81mm |
| Brightness | ≥6500cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ |
| Power Supply | Meanwell | DRIVE IC | ICN2503 |
| Receiving card | Nova MRV316 | Fresh rate | 3840 |

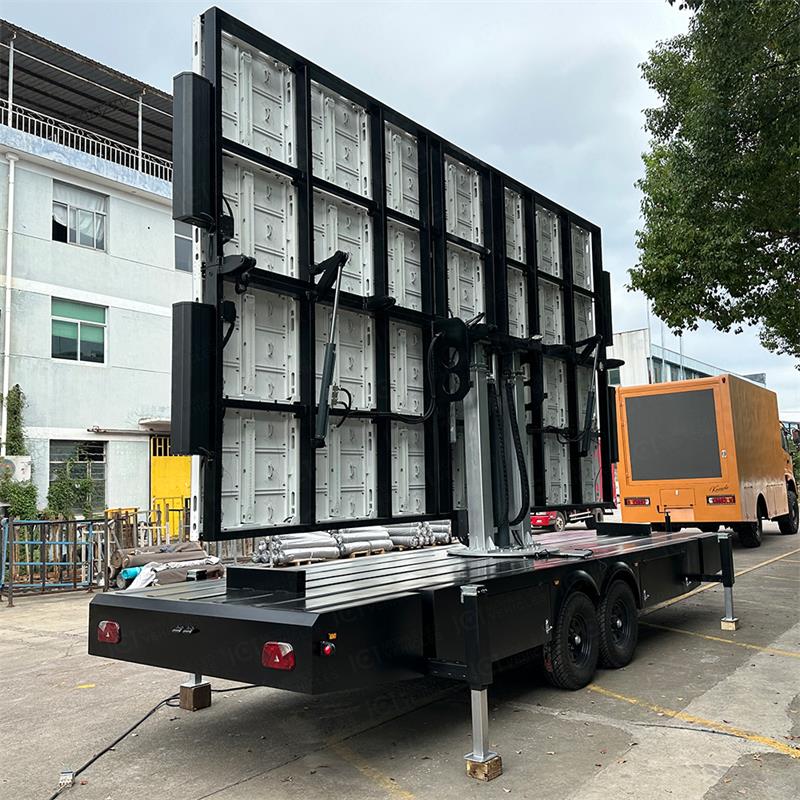

| Cabinet material | Die casting aluminum | Cabinet weight | Aluminum 30kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD2727 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 43222 Dots/㎡ |
| Module resolution | 64*32Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7， | ||
| Power parameter | |||
| Input voltage | Three phases five wires 415V | Output voltage | 240V |
| Inrush current | 30A | Average power consumption | 0.25kwh/㎡ |
| Multimedia Control System | |||
| Video processor | NOVA | Model | TB8-4G |
| Luminance sensor | NOVA | Multi-function card | NOVA |
| Power amplifier | Output power：1500W | Speaker | power:200W*4 |
| Hydraulic System | |||
| Wind-proof level | Level 8 | Supporting legs | Stretching distance 300mm |
| hydraulic rotation | 360 degrees | ||
| Hydraulic Lifting and folding system:Lifting Range 2000mm, bearing 5000kg, hydraulic screen folding system | |||

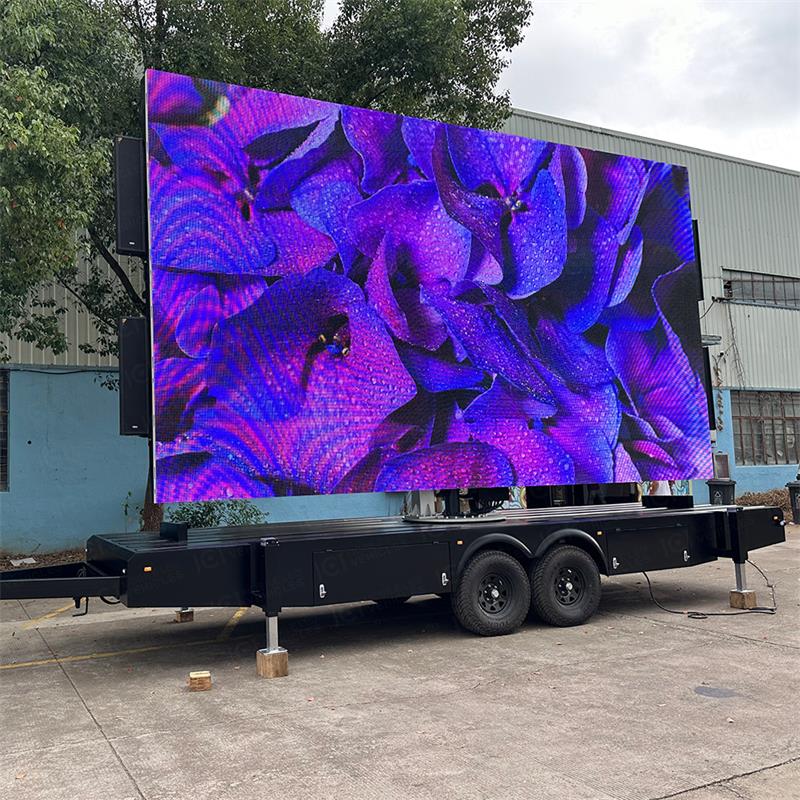

What? Do you want the LED screen to be placed higher? no problem! It has its own hydraulic lift, which can be easily raised by 2 meters with just one button operation.

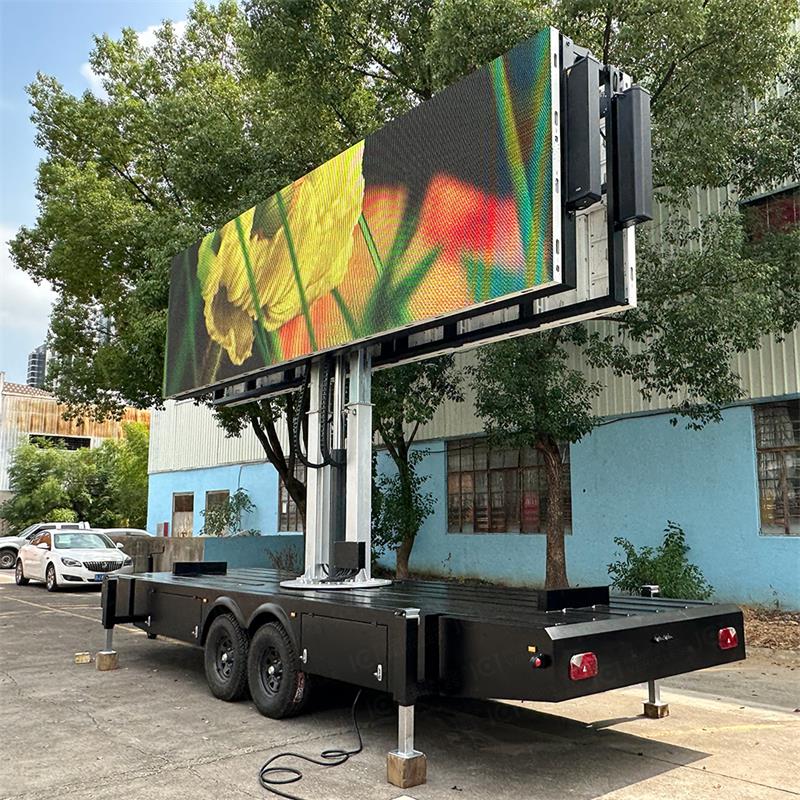

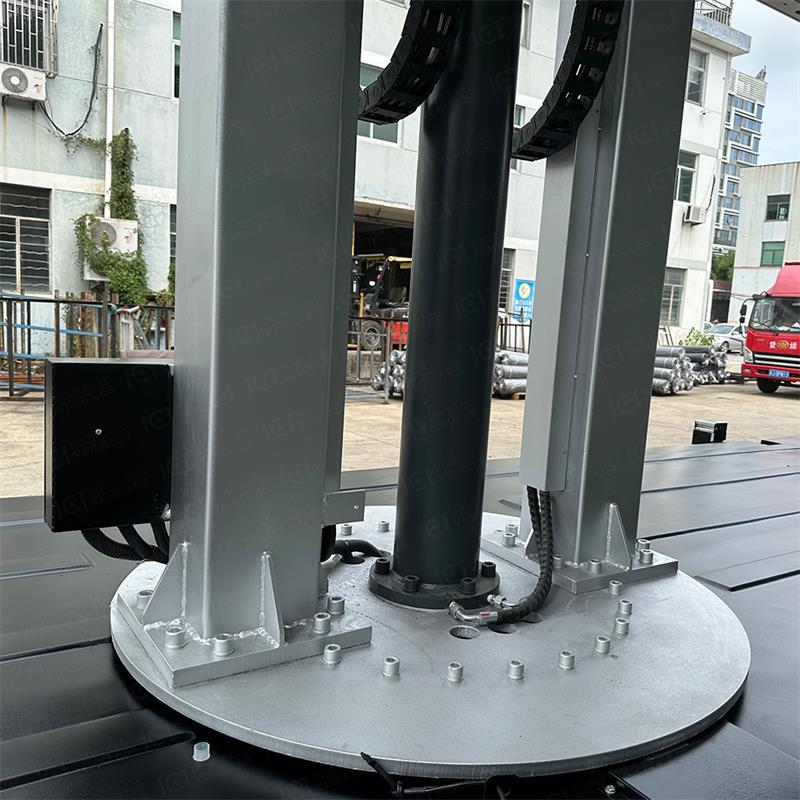

If you want to adjust the viewing angle of the LED screen, the 360-degree rotation function of the screen can easily solve this small problem.

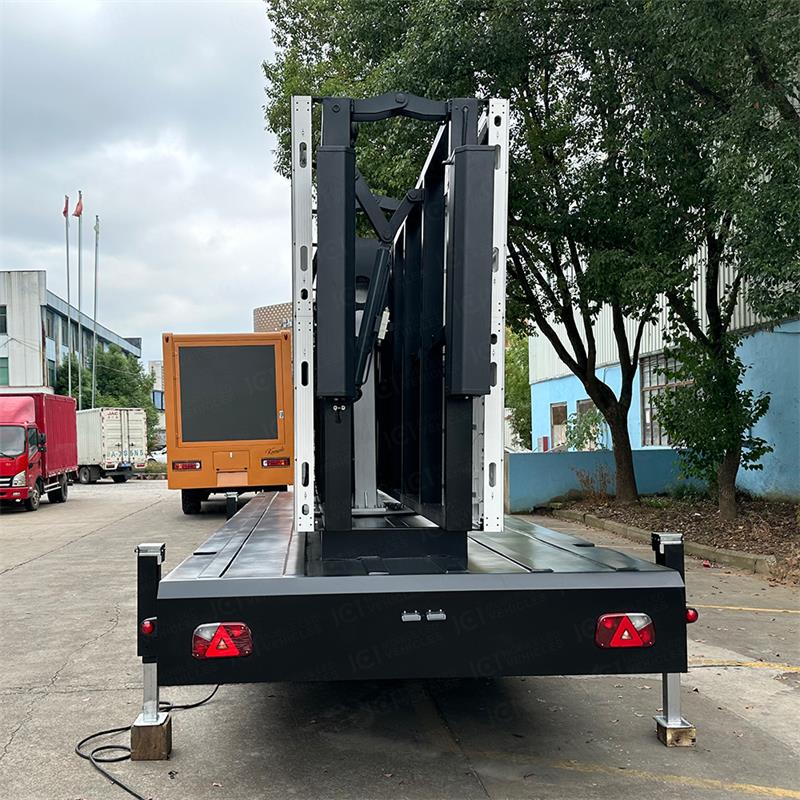

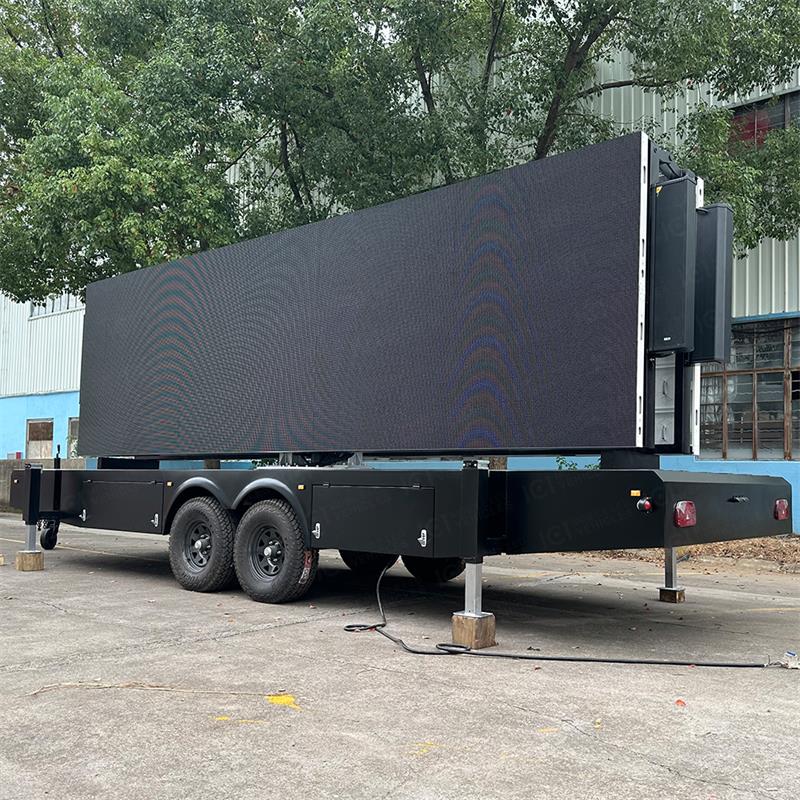

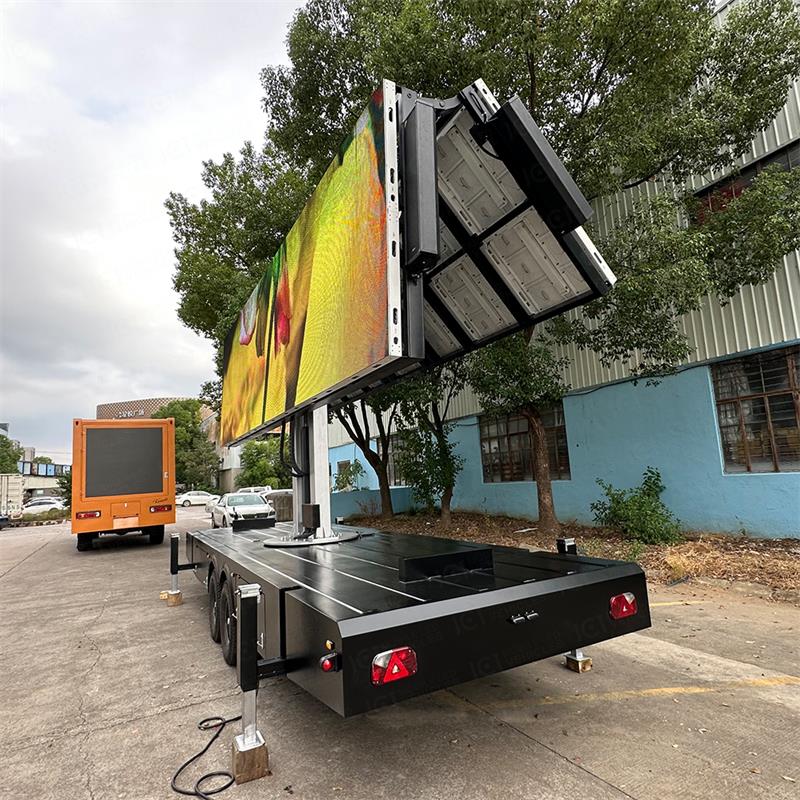

If you are still worried that the whole screen is too big and too high, and you will encounter height restrictions when towing and moving on the road, don’t worry, it also has a screen that can be flipped and folded 180 degrees. When you need to move, you only need to fold the screen down , the size of the entire LED trailer becomes 8500×2100×2955mm, allowing you to move as you like!
Unique LED foldable screen technology brings customers a shocking and changeable visual experiences. Screen can play and fold at the same time. 360 degree barrier-free visual coverage and 26m2 screen improve the visual effect. Meanwhile, as it effectively reduces the limits of transportation, it can meet the requirements of special regional dispatching and resettlement to expand the media coverage.
The 26m2 mobile LED trailer is optional with chassis power system and using manual and mobile dual braking. Intelligent remote control makes it more flexible. Solid rubber tire made of 16 manganese steel is safe and reliable.
The 26m2 mobile LED trailer changed the traditional streamline design of previous products to a frameless design with clean and neat lines and sharp edges, fully reflecting the sense of science, technology and modernization. It is especially suitable for pop show, fashion show, automobile new product release and so on.
LED screen size can be customized according to customer requests, other types like E-F16 (screen size 16m2) and E-F22 (screen size 22m2) are available.
