6m long IVECO mobile led truck for 3 sides screen

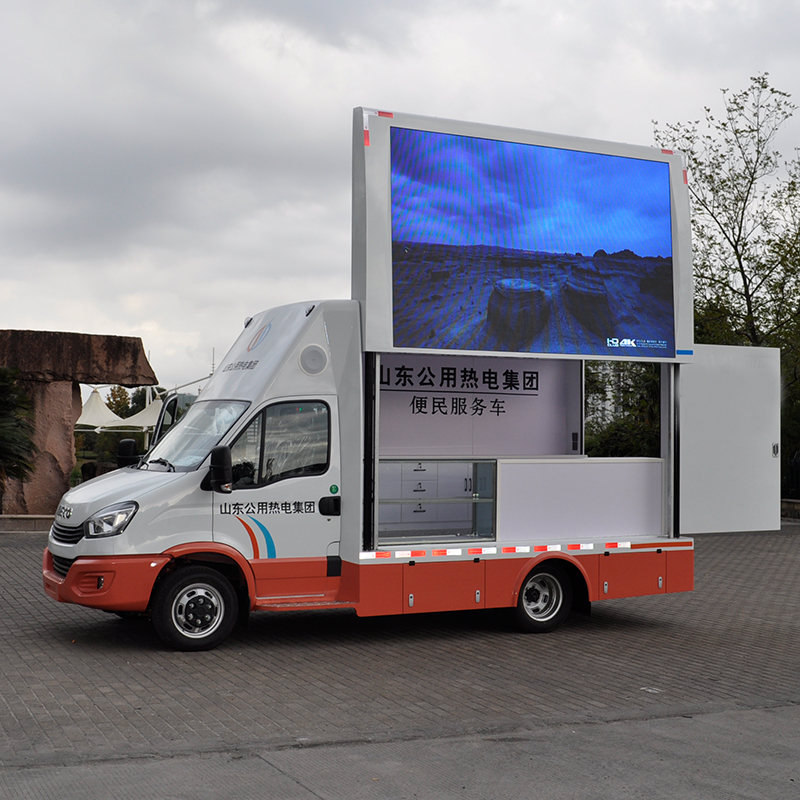

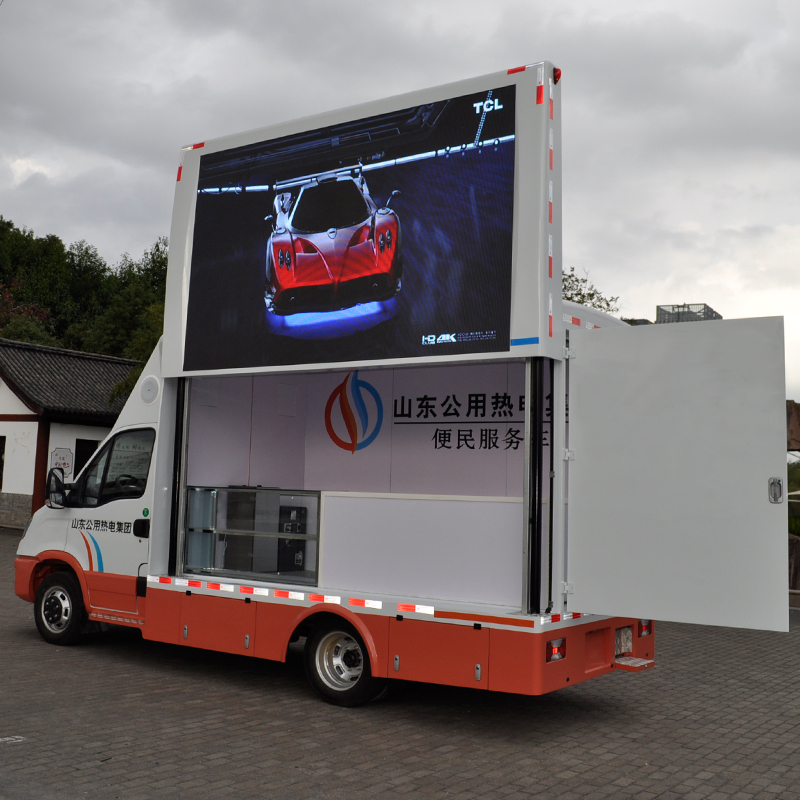

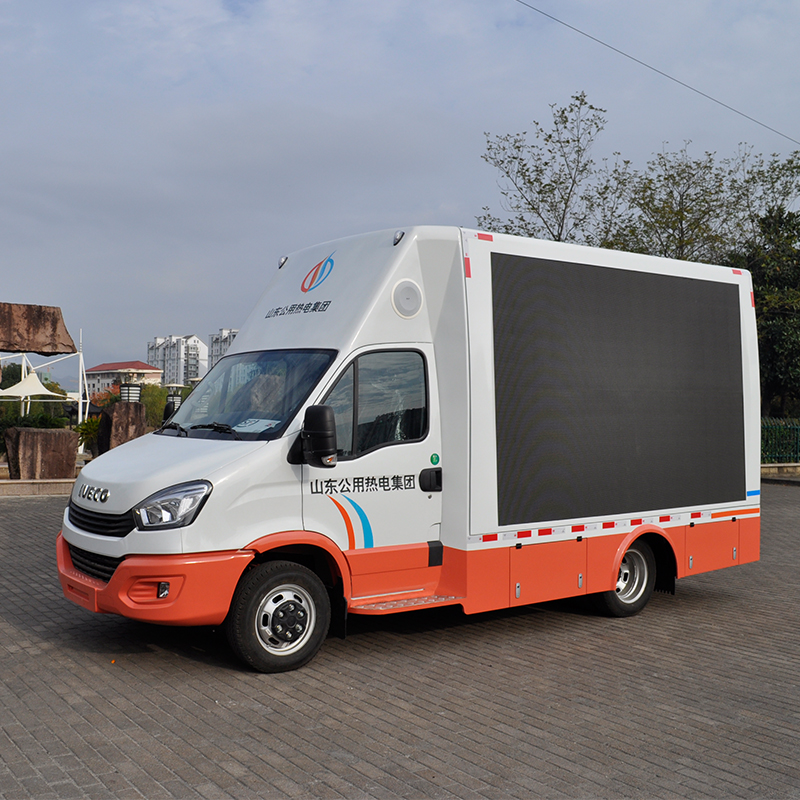

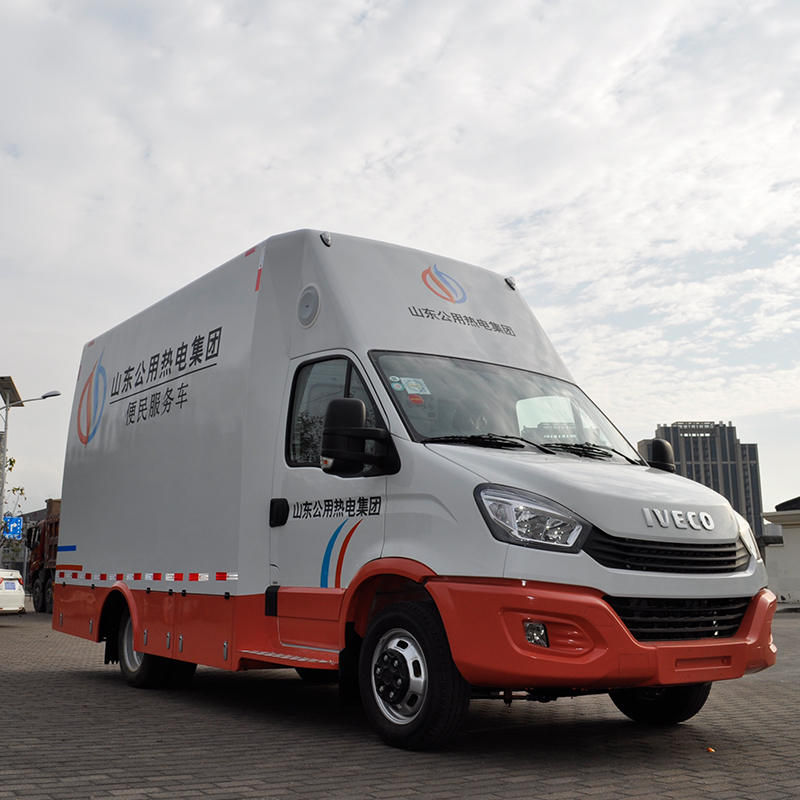

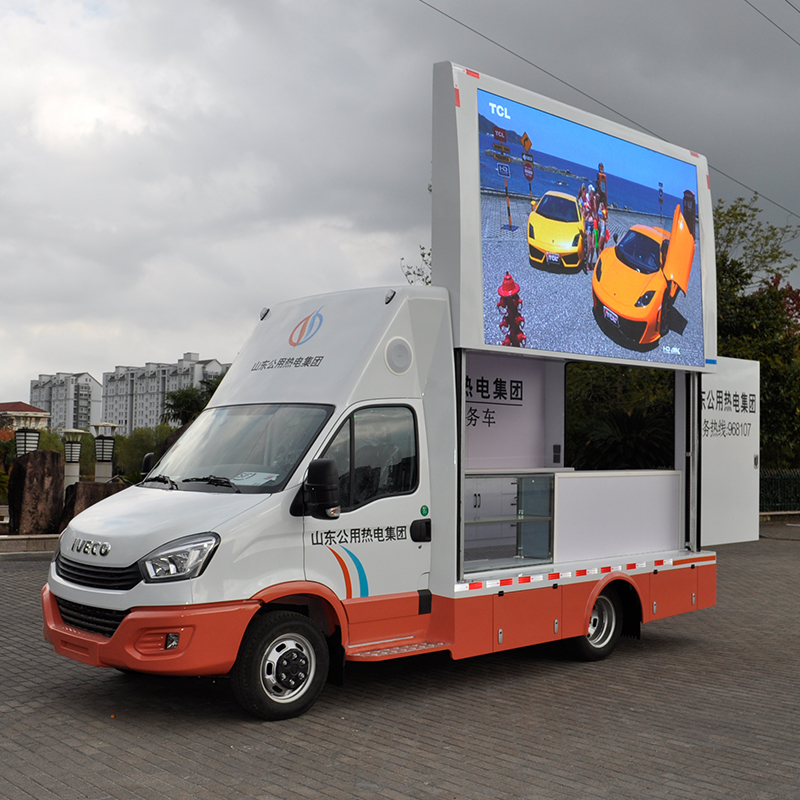

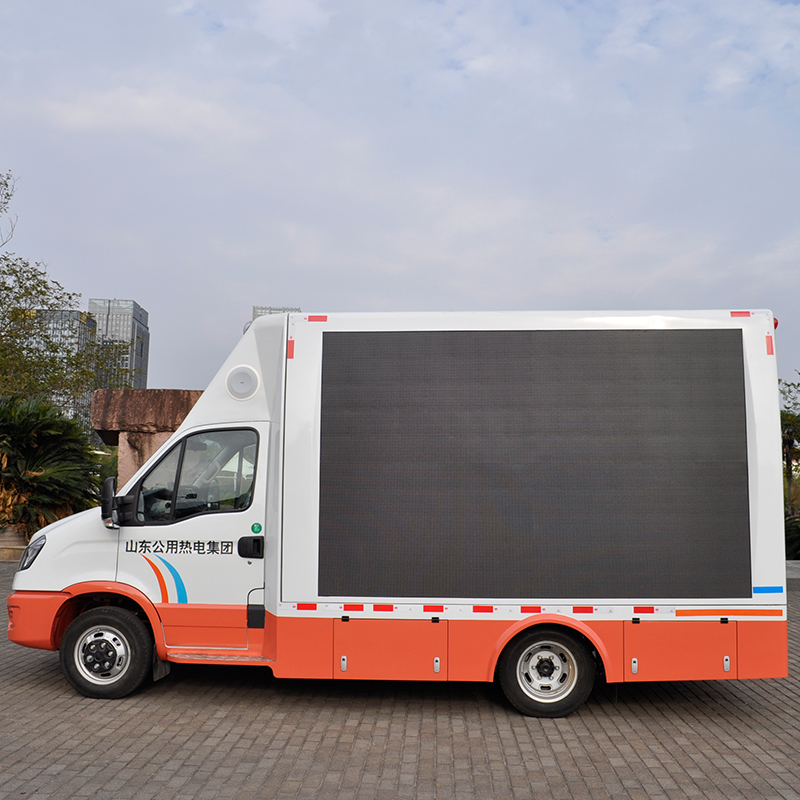

JCT 3.8M MOBILE LED TRUCK-IVECO （Model：E-IVECO3300）adopts IVECO chassis; the overall dimensions of the truck: 5995 * 2145 * 3200 mm; the national standard emission: EuroⅥ. The carriage is equipped with sofa, tables and chairs, fireproof panels, patterned aluminum floor, brand LCD TV and customized stage. A "Shiny Truck" that integrates business reception, stage performance, outdoor promotion and other urban promotion needs. "One truck with multiple functions and multiple configurations" have become the two attractive features of JCT 3.8M MOBILE LED TRUCK.
| Specification | |||
| Chassis | |||
| Brand | IVECO | Dimension | 5995x2160x3200mm |
| Power | SOFIM8140.43S5 | Total mass | 4495 KG |
| Axle base | 3300mm | Unladen mass | 4300 KG |
| Emission standard | National standard III and IV | Seat | 3 |
| Silent generator group | |||
| Dimension | 1350mm x 800mm x 688mm | Power | 12KW |
| Brand | OUMA | Number of cylinders | Water-cooled inline 4 |
| Displacement | 1.197L | Bore x stroke | 84mm x 90mm |
| LED full color screen (Left and right) | |||
| Dimension | 3200mm(W)*1920mm(H) | Module size | 320mm(W) x 160mm(H) |
| Light brand | Kinglight light | Dot pitch | 4mm |
| Module resolution | 80 x40 Pixel | Lifespan | 100,000 hours |
| Brightness | ≥6500cd/㎡ | ||
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ |
| Power Supply | Meanwell | DRIVE IC | ICN2153 |
| Receiving card | Nova MRV316 | Fresh rate | 3840 |
| Cabinet material | Iron | Cabinet weight | Iron 50kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD2727 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 62500 Dots/㎡ |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Frame rate/ Grayscale, color | 60Hz,13bit |
| system support | Windows XP,WIN 7， | Operating temperature | -20~50℃ |
| LED full color screen (rear side) | |||
| Dimension(rear side) | 1280mm*1600mm | Dot pitch | 4mm |
| life span | 100000 Hours | Brightness | ≧6000cd/㎡ |
| Pixel density | 62500 Dots/㎡ | Maximum power | ≦700w/㎡ |
| Power parameter (external prower supply) | |||
| Input voltage | single-phase 220V | Output voltage | 220V |
| Inrush current | 35A | Average power consumption | 0.3kwh/㎡ |
| Multimedia control system | |||
| Video processor | Nova | Model | VX600 |
| Power amplifier | 100W，4 pcs | Speaker | 500W |
| Hydraulic lifting | |||
| distance of travel | 1700 mm | ||
| Hydraulic stage | |||
| Size | 5200 mm*1400 mm | stairs | 2 pecs |
| guardrail | 1 set | ||
More and more enterprises have incorporated "services to people's livelihood projects" into their key tasks, such as energy and thermal power companies, water plants and other enterprises that are related to people's food, clothing, housing and transportation. JCT 3.8M MOBILE LED TRUCK-IVECO （Model：E-IVECO3300） can cooperate with enterprises to carry out various publicity activities. Entering the community and doing local promotion. Let you timely grasp the social dynamics and business information. The emergence of LED service publicity vehicles has greatly improved the image of enterprise. It is different from the previous publicity form. There have LED service publicity vehicles to escort you, and you will get good returns once and for all.
Fully automatic hydraulic stage
JCT 3.8M MOBILE LED TRUCK equipped with a fully automatic hydraulic stage. After the stage is unfolded, it becomes a mobile stage truck.
It can install stages, shelves and other special equipment for different activities, or provide personalized transformation and car body coating services for promotion projects to make it more suitable for promotion themes.
Multimedia playback system
The 3.8m mobile LED truck adopts a new built-in media optimization control system, which supports U disk playback and mainstream video format. It is equipped with a front-end video processing system for live broadcast or rebroadcasting. It has 8 channels and can switch pictures at will.
Truck decoration
The 3.8m mobile LED truck carriage is equipped with sofa, tables and chairs, fireproof panels, patterned aluminum floor, brand LCD TV and customized stage. A "Shiny Truck" that integrates business reception, stage performance, outdoor promotion and other urban promotion needs.
Parameter specification (Standard configuration)
1. Overall dimensions: 5995×2145×3200mm
2. Left outdoor full-color display screen (P3/P4/P5/P6) size: 3072×1920mm
3. Power consumption (average consumption) : 0.3 / m/H, total average consumption.
4. The intelligent timing power on system can turn on or off the LED screen.
5. Equipped with multimedia playback system, support usb flash drive and mainstream video format.
6. Equipped with ultra-quiet generator set, power of 12KW.
7. Input voltage 220V.
