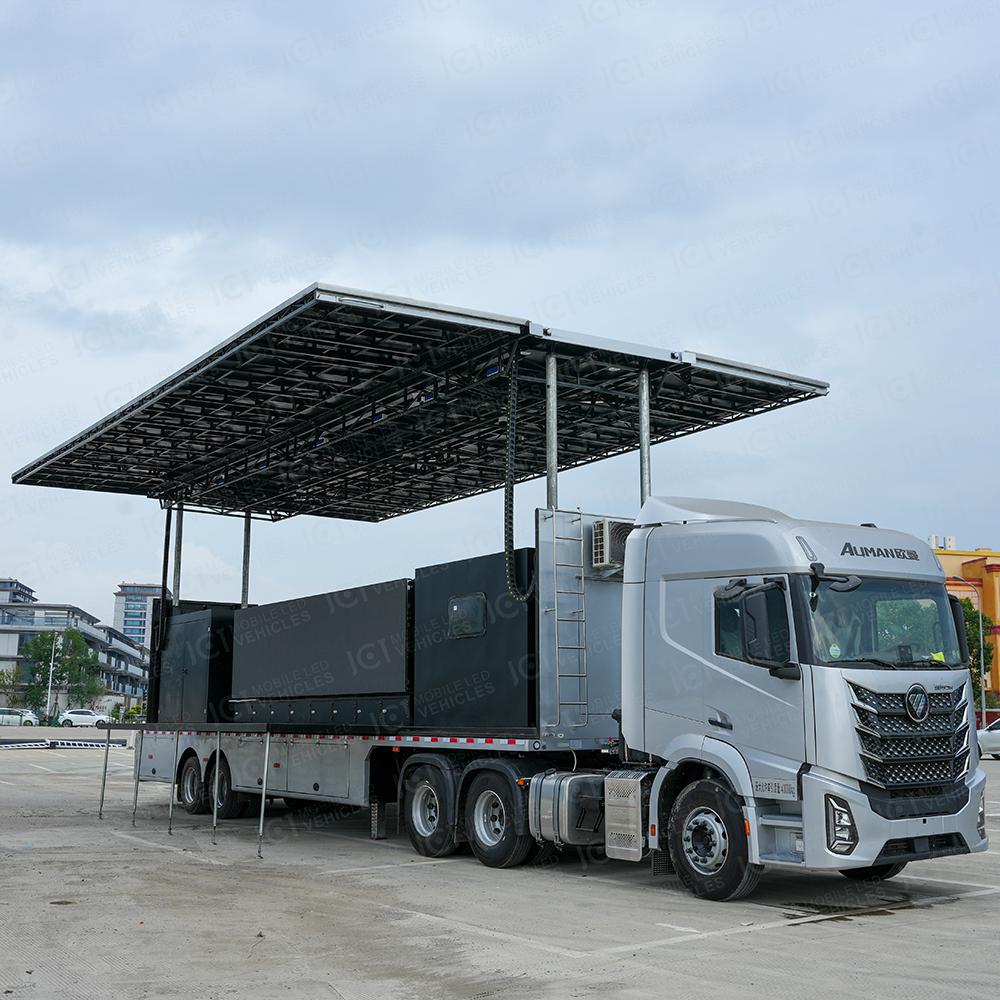

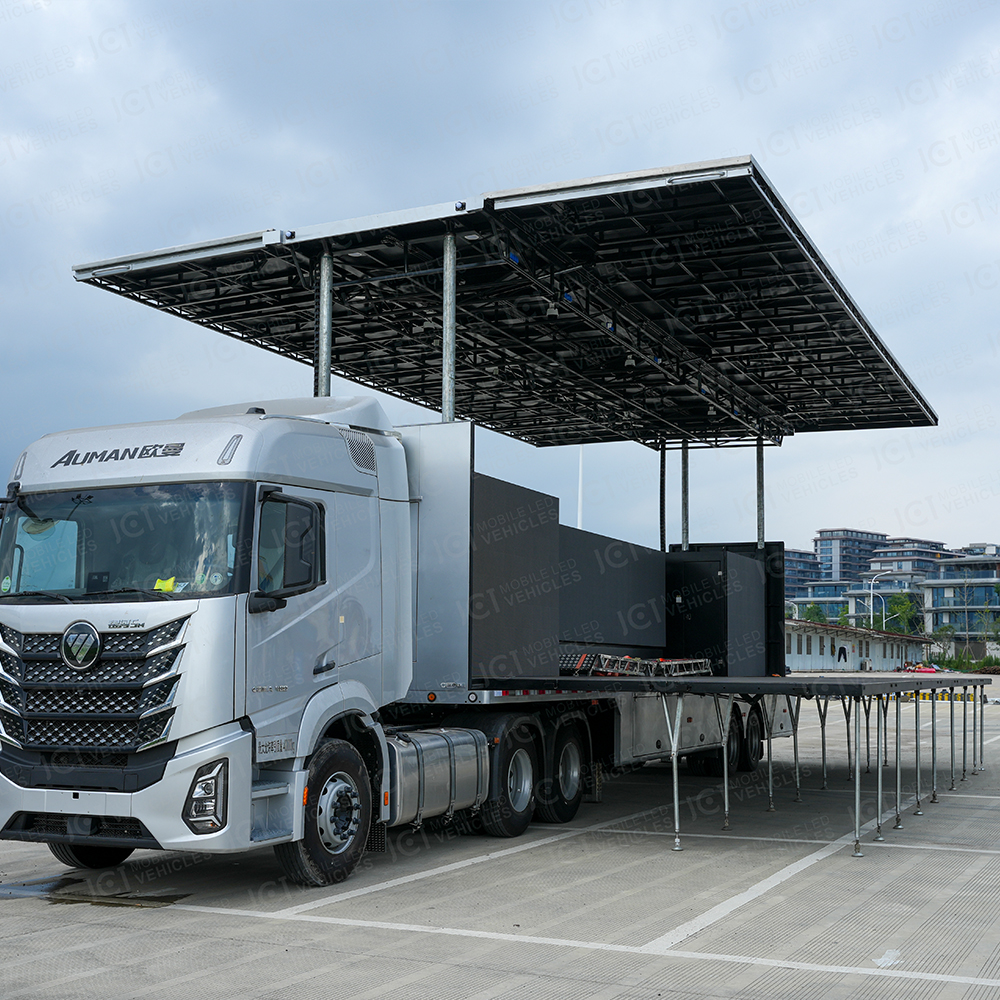

13m Dual-Wing Hydraulic Folding Mobile Stage Truck

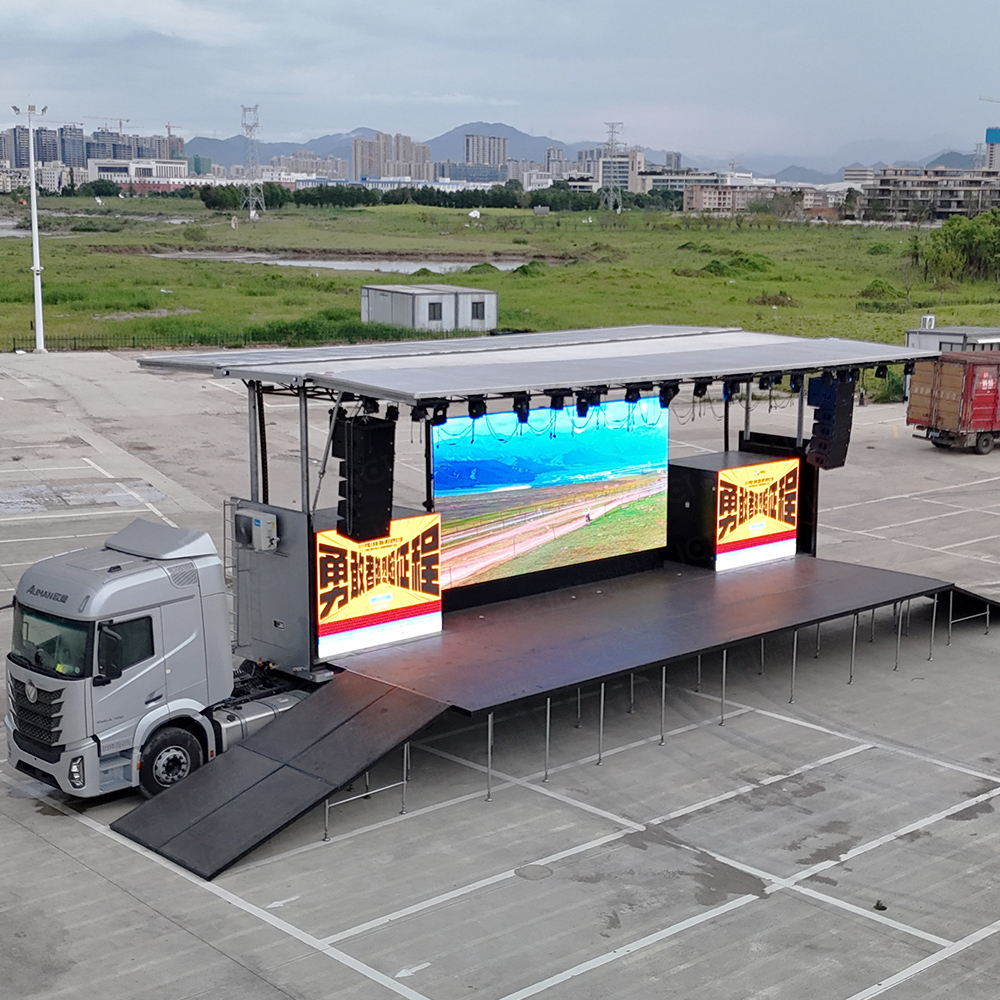

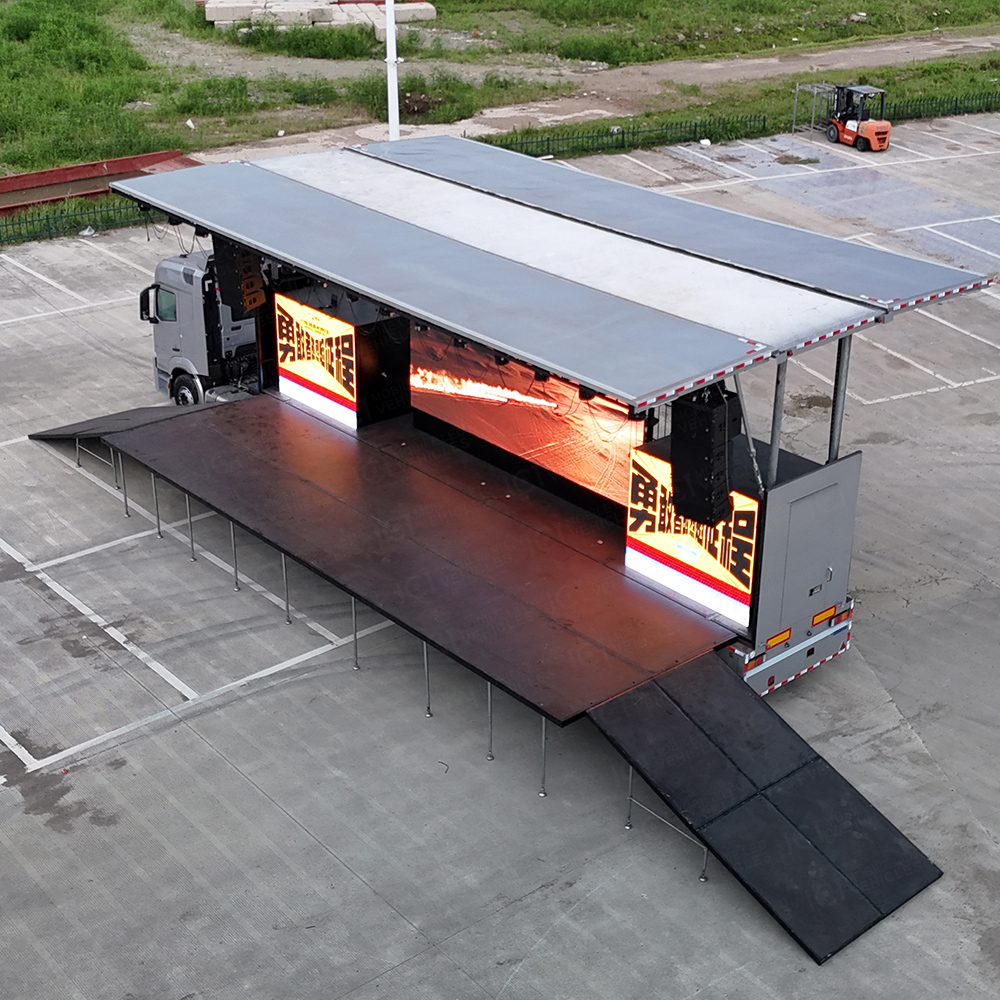

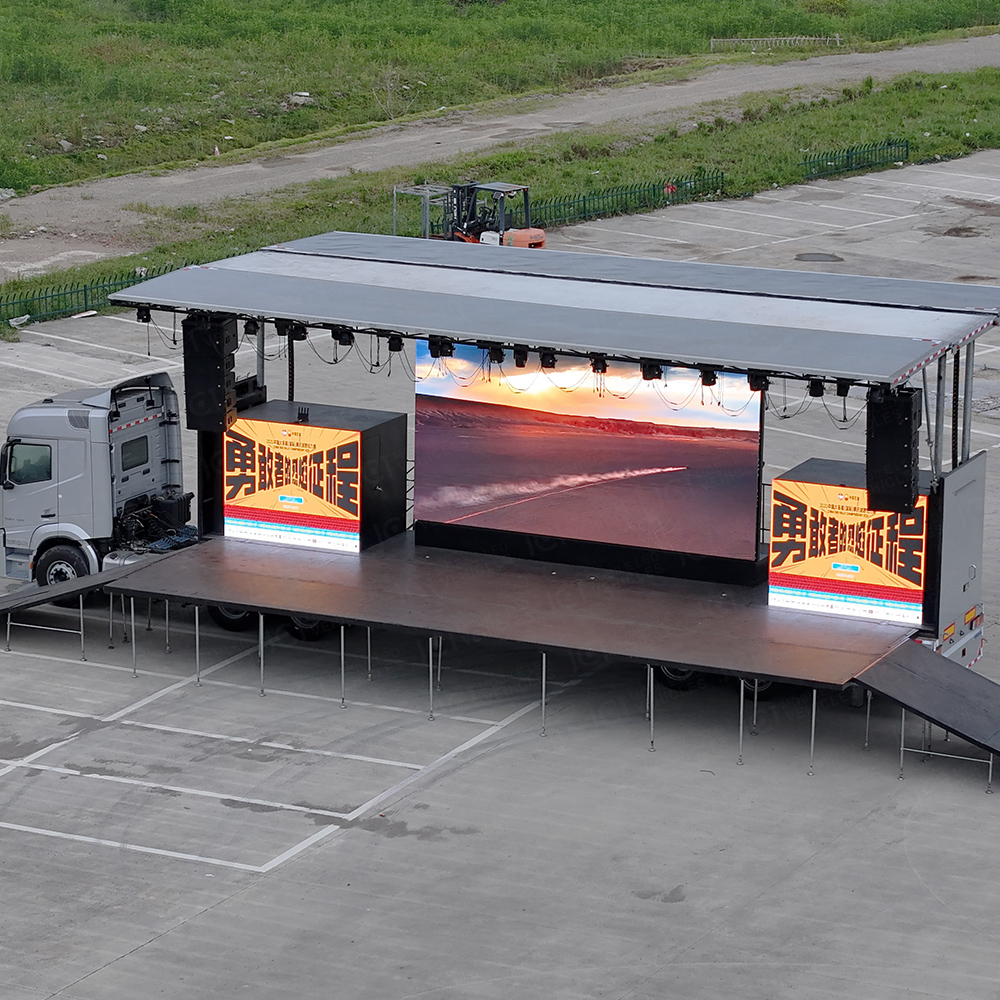

1. Fast-Deploy Dual-Wing Hydraulic Folding Stage
The left main dual-folding stage measures 12300×3300mm, while the right auxiliary dual-folding stage is sized 6760×1600mm. Both stage platforms are equipped with 90° flip hydraulic cylinders and vertical lifting cylinders, supporting remote-control automatic deployment. This intelligent hydraulic design effectively reduces on-site labor requirements and shortens event preparation time.

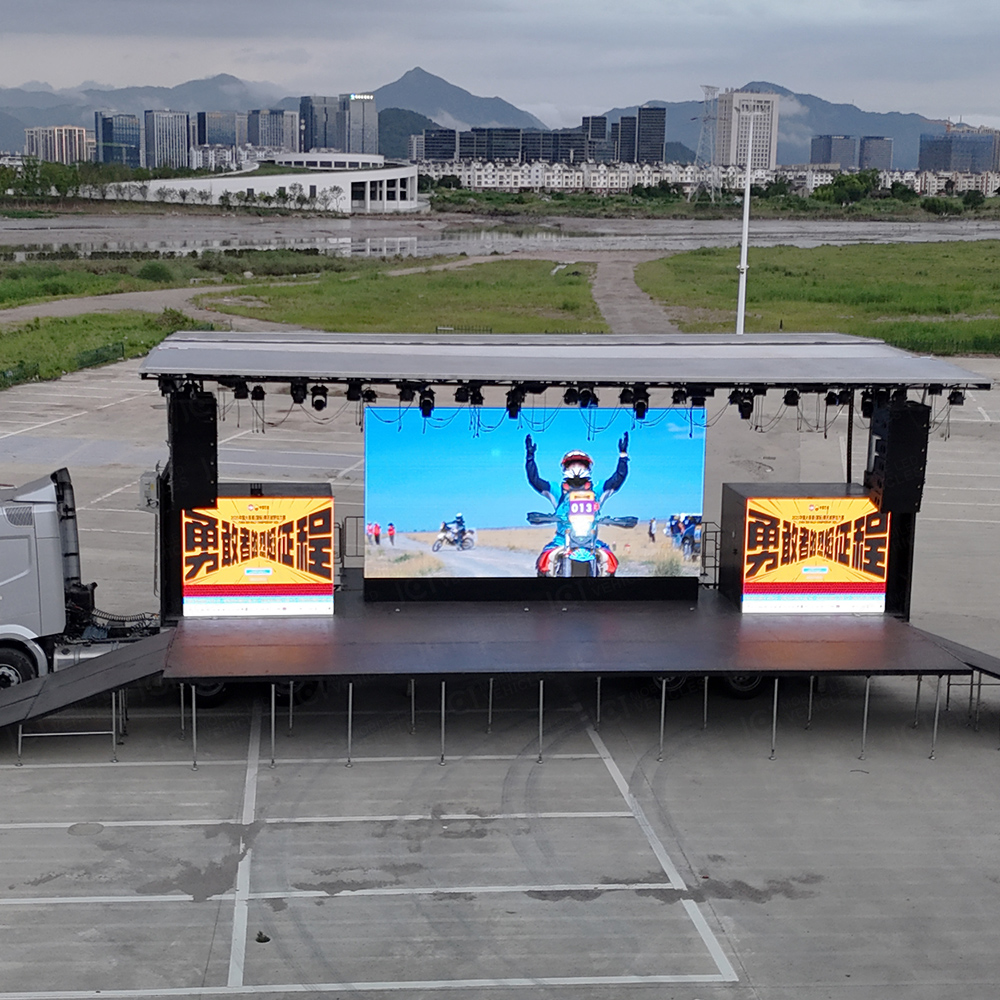

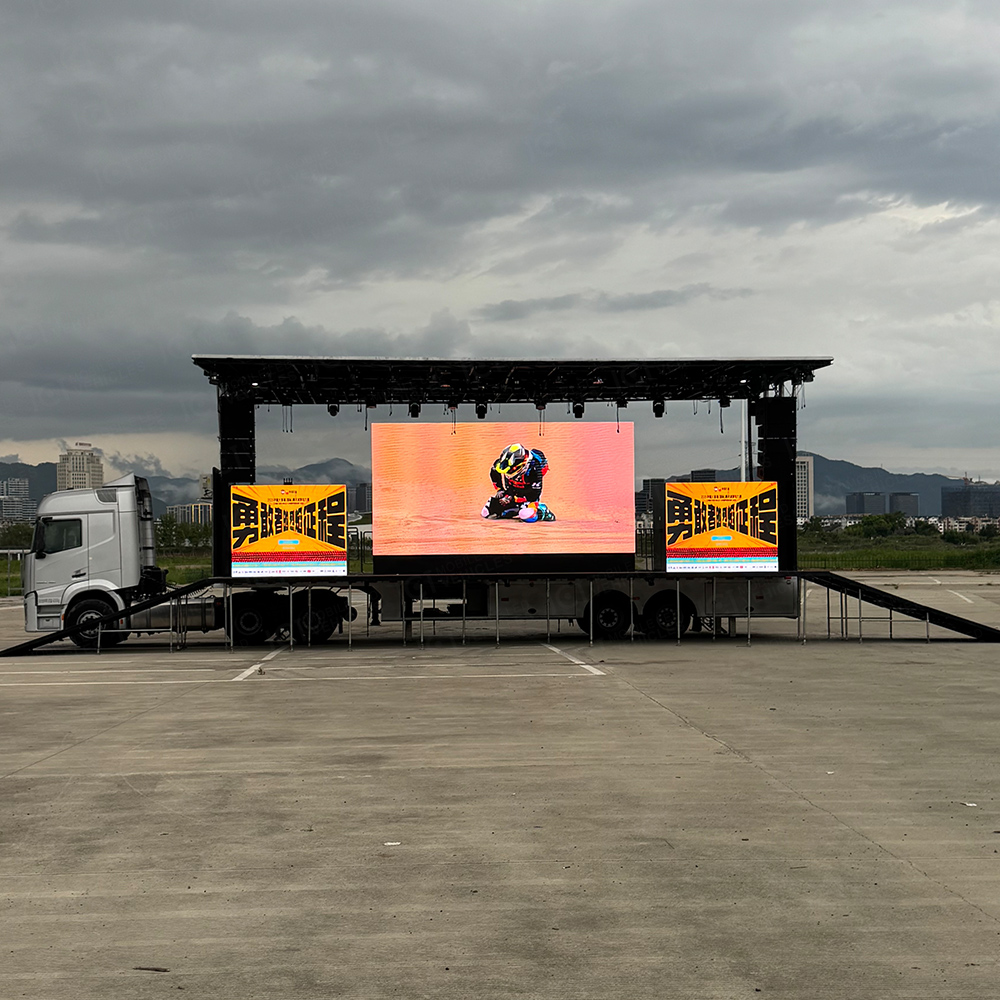

2. Triple High-Definition Outdoor Waterproof LED Screens
The core stage area is installed with a 6000×3000mm high-definition folding main LED screen, paired with two 2500×2000mm auxiliary LED screens on both sides. All displays adopt professional outdoor waterproof and high-brightness technology, delivering stable and clear visual effects even under strong outdoor sunlight. The screen resolution and display specifications can be customized to match different high-standard event requirements.
3. Independent Power Supply with Silent Generator Set
The MLST-13M mobile stage truck is equipped with a 48KW AGG silent generator set, supporting 380V industrial input and 220V daily output. With independent power supply capability, the stage truck can operate stably without relying on municipal electricity, greatly improving venue flexibility and adapting to various outdoor sites lacking power infrastructure.
| Specification | |||
| Semi-trailer chassis | |||
| Brand | CIMC | Dimension | 13020*2550*4100mm |
| Weight | 19000KG | ||
| Silent generator group | |||
| Dimension | 2200mm * 900mm * 1200mm | Power | 48KW |
| Brand | AGG | Number of cylinders | Water-cooled inline 4 |
| Displacement | 1.197L | Bore x stroke | 84mm *90mm |
| LED Screen | |||
| Central main screen size | 6000mm(W)*3000mm(H) | Left & right secondary LED screen size | 2500*2000mm |
| Light brand | Kinglight | Module Size | 250mm(W)*250mm(H) |
| Brightness | ≥5500cd/㎡ | Dot Pitch | 3.91mm |
| Average Power Consumption | 250w/㎡ | Lifespan | 100,000hours |
| Power Supply | XINGXIU | Max Power Consumption | 700w/㎡ |
| Receiving card | Nova A5 | DRIVE IC | 2503 |
| Cabinet material | Die-casting aluminum | Fresh rate | 3840 |
| Maintenance mode | Rear service | Cabinet weight | aluminum 30kg |
| LED packaging method | SMD1921 | Pixel structure | 1R1G1B |
| Module power | 18W | Operating Voltage | DC5V |
| HUB | HUB75 | scanning method | 1/8 |
| Module resolution | 64*64Dots | Pixel density | 65410 Dots/㎡ |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Frame rate/ Grayscale, color | 60Hz,13bit |
| system support | WIN 10， | Operating temperature | -20~50℃ |
| Lighting and sound system | |||
| Sound system | Attachment 1 | Lighting system | Attachment 2 |
| Power parameter | |||
| Input Voltage | 380V | Output Voltage | 220V |
| Current | 30A | ||
| The hydraulic system | |||
| Double-wing hydraulic cylinder | 4 pcs 90 - degree flip | Hydraulic jacking cylinder | 4 pcs stroke 2000 mm |
| Stage 1 flip cylinder | 4 pcs 90 - degree flip | Stage 2 flip cylinder | 4 pcs 90 - degree flip |
| Remote control | 1 set | Hydraulic control system | 1 set |
| Stage and guardrail | |||
| Left stage size（Double fold stage） | 12300*3300mm | Right stage size（Double fold stage） | 6760*1600mm |
| Stainless steel guardrail | The stainless steel circular tube has a diameter of 32mm and a thickness of 1.5mm | The ladder（with Stainless steel handrail) | 1000 mm wide*2 pcs |
| Stage structure（Double fold stage） | All around the big keel 100*50mm square pipe welding, the middle is 40*40 square pipe welding, the above paste 18mm black pattern stage board | ||
4. Integrated Professional Lighting and Audio System
The roof truss is pre-installed with complete professional stage equipment, including beam lights, LED par lights and line array speaker systems. After the stage truck is positioned and deployed, the full sound and lighting system can be put into operation immediately, enabling fast and standardized outdoor performance execution.
5. Durable CIMC Chassis for Long-Distance Transfer
Built on a premium CIMC semi-trailer chassis, the whole vehicle weighs 19 tons with full lighting, audio and display systems installed. It features strong load-bearing capacity and stable driving performance, perfectly suitable for cross-city and cross-province touring performances and long-term mobile event operations.
6. Customizable Extended Functional Spaces
According to project scale and usage demands, the 13m hydraulic folding stage truck supports personalized customization of extended spaces, including rest rooms, independent control rooms and temporary toilets, to meet the diversified functional needs of large-scale outdoor events.
Sports Events: Opening and closing ceremonies, award ceremonies, live broadcast background stages
Corporate Events: New product launches, distributor conferences, annual celebrations
Commercial Performances: Concerts, music festivals, mobile roadshows, brand pop-up activities
Government Public Events: Square cultural performances, rural cultural tours, festival ceremonies
Exhibition Activities: Temporary stage construction for outdoor auto shows, real estate exhibitions and outdoor booth events
All-in-One Integrated Design
The MLST-13M stage truck integrates stage structure, LED display, lighting, audio and power supply system into one complete vehicle. It only requires one-time transportation to achieve full-stage configuration, eliminating the trouble of multi-equipment coordination.
High Deployment Efficiency
Adopting automatic hydraulic folding structure, the stage realizes rapid unmanned deployment, greatly shortening the long construction cycle of traditional truss stages and improving overall event operation efficiency.
Controllable Comprehensive Cost
The integrated mobile stage solution saves repeated costs of truss rental, LED screen rental, and manual loading and unloading, effectively reducing the long-term operation cost of outdoor events.
Reliable Core Accessories
All key components including the CIMC chassis, outdoor LED display and AGG silent generator set adopt mainstream high-quality brand accessories in the industry, ensuring stable performance and long service life of the whole vehicle.
Professional After-Sales Support
We provide systematic operation training and professional after-sales technical support for the vehicle hydraulic system and LED display system, ensuring safe and stable long-term use for global clients.
Customization Service
We support personalized customization of core parameters including LED screen size, generator power and stage width to adapt to different project scenarios. If you are interested in the MLST-13M stage truck, please feel free to contact our team for detailed solutions and official quotations.
