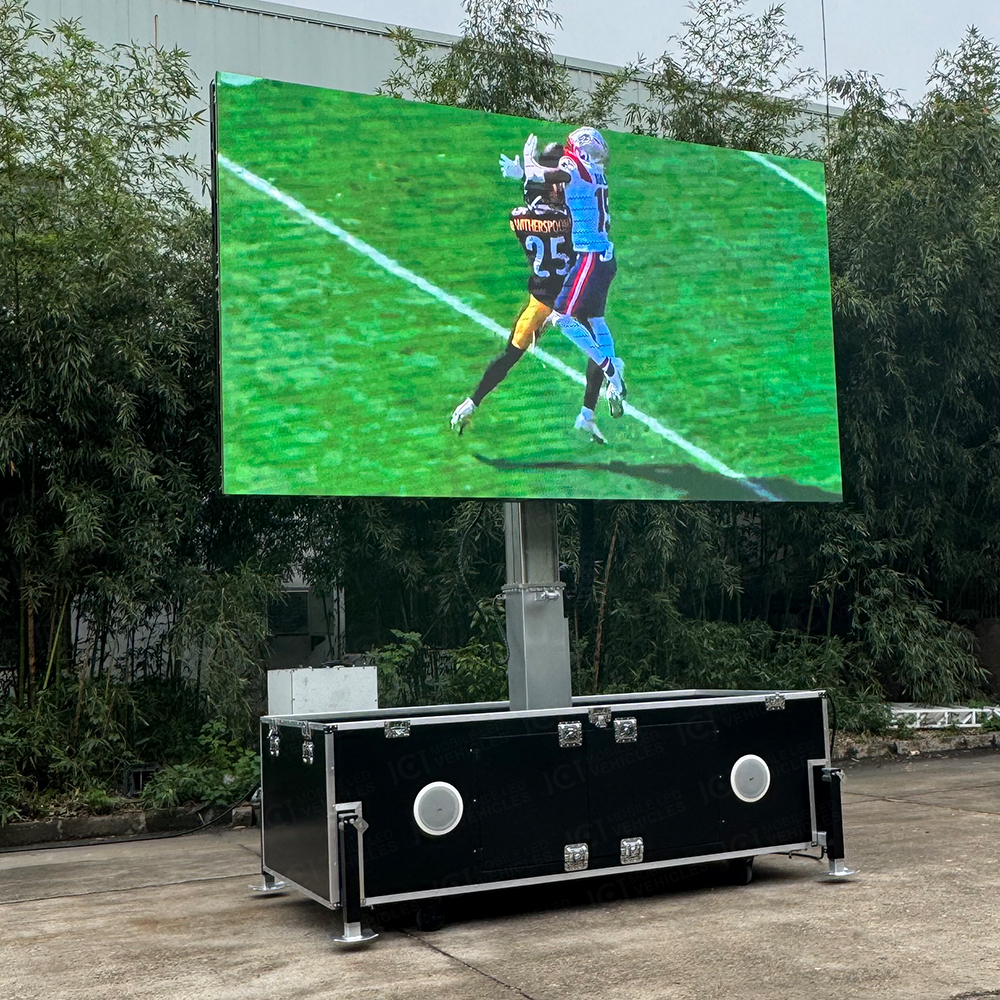

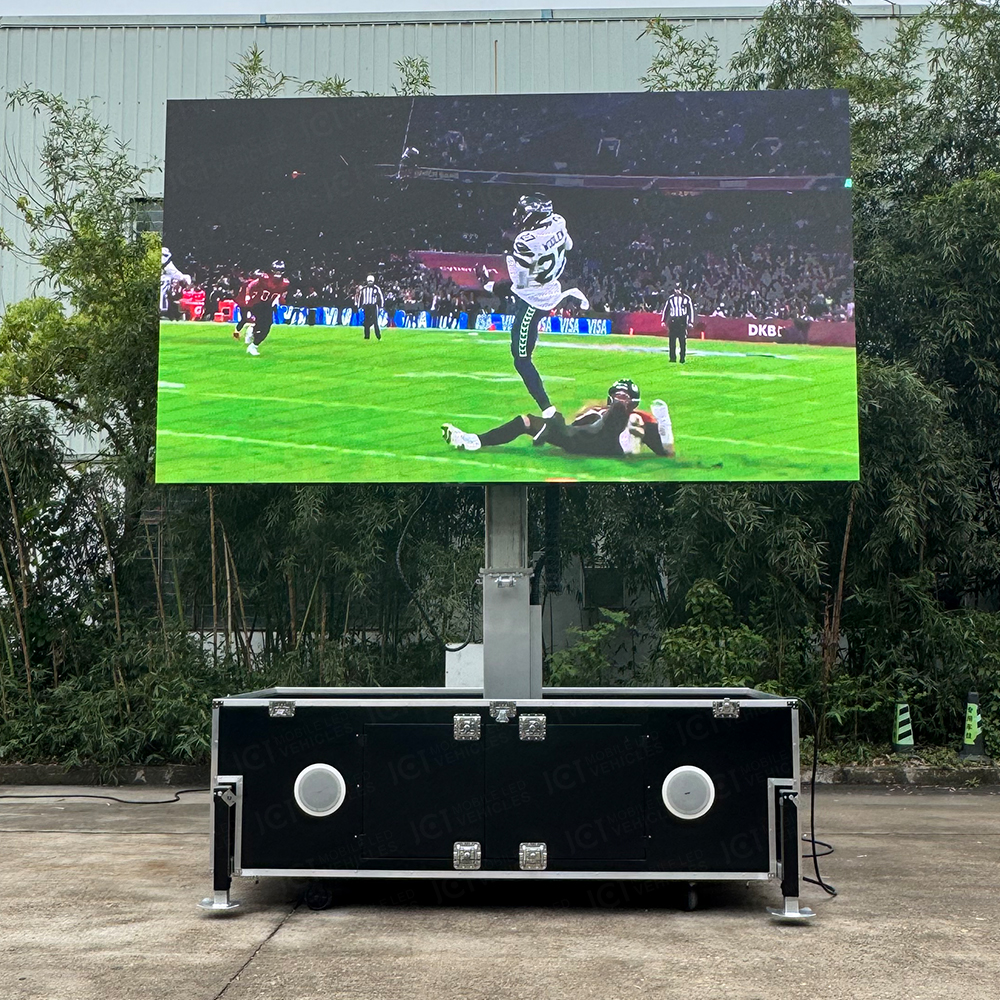

Portable flight case with LED display
| Specification | |||
| Flight case appearance | |||
| Flight casesize | 2600×1345×1800mm | Universal wheel | 500kg，4PCS |
| Total weight | 1250KG | Flight case parameter | 1, 2mm aluminum plate 2, 5mmEYA/30mmEVA 3, 8 round draw hands 4, 6 (4 "blue 36-width lemon wheel, diagonal brake) 5, 15MM wheel plate Six, six locks 7. Fully open the cover 8. Install small pieces of galvanized iron plate at the bottom |
| LED Screen | |||
| Dimension | 11.5'x 6.5' (3500mm*2000mm) | Module Size | 250x250mm |
| Light brand | Kinglight | Dot Pitch | 3.91 mm |
| Brightness | 5000cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ |
| Power Supply | G-energy | DRIVE IC | ICN2153 |
| Receiving card | Nova A5S | Fresh rate | 3840 |
| Cabinet material | Die casting aluminum | Cabinet weight | aluminum 7.5kg |
| Maintenance mode | Front & Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 65410Dots/㎡ |
| Module resolution | 64*64Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7， | ||
| Power parameter (external prower supply) | |||
| Input voltage | Single phase 220V | Output voltage | 220V |
| Inrush current | 24A | ||
| Control system | |||
| receiving card | 28pcs | NOVA TU15 PRO | 1 pcs |
| Hydraulic lifting | |||
| Hydraulic Lifting and folding system | Lifting Range 2400mm, bearing 2000kg | Fold the ear screens on both sides | 4pcs electric pushrods folded |
|
Item |
Parameter |
|
Model |
PFC-7M |
|
Screen size |
11.5′ × 6.5′ (3500mm × 2000mm) |
|
Ear screen |
180 Automatic Folding + Unfolding |
|
Flight case size |
2600×1345×1800mm |
|
Move Method |
universal wheel |
|
Lifting space |
2400mm |
|
Lifting bearing |
2000kg |
|
Levels of protection |
Outdoor grade; shock-resistant and weatherproof |

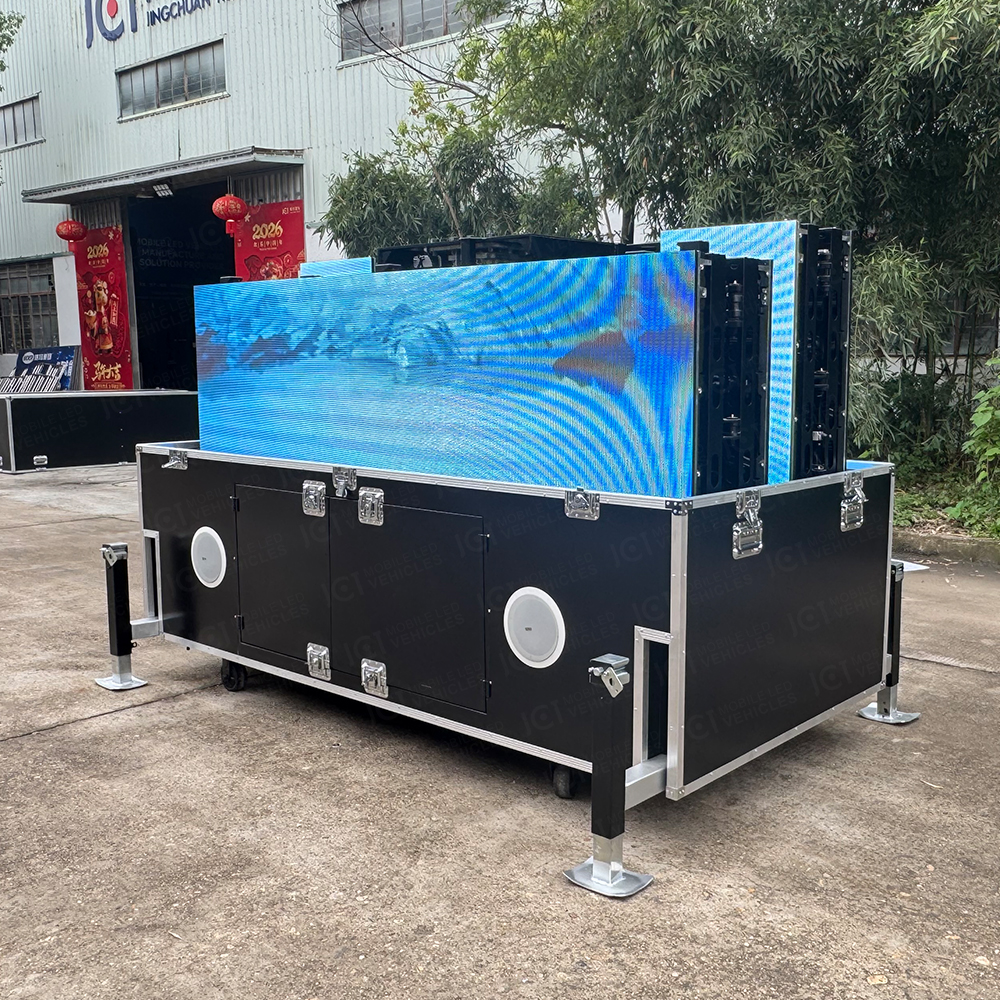

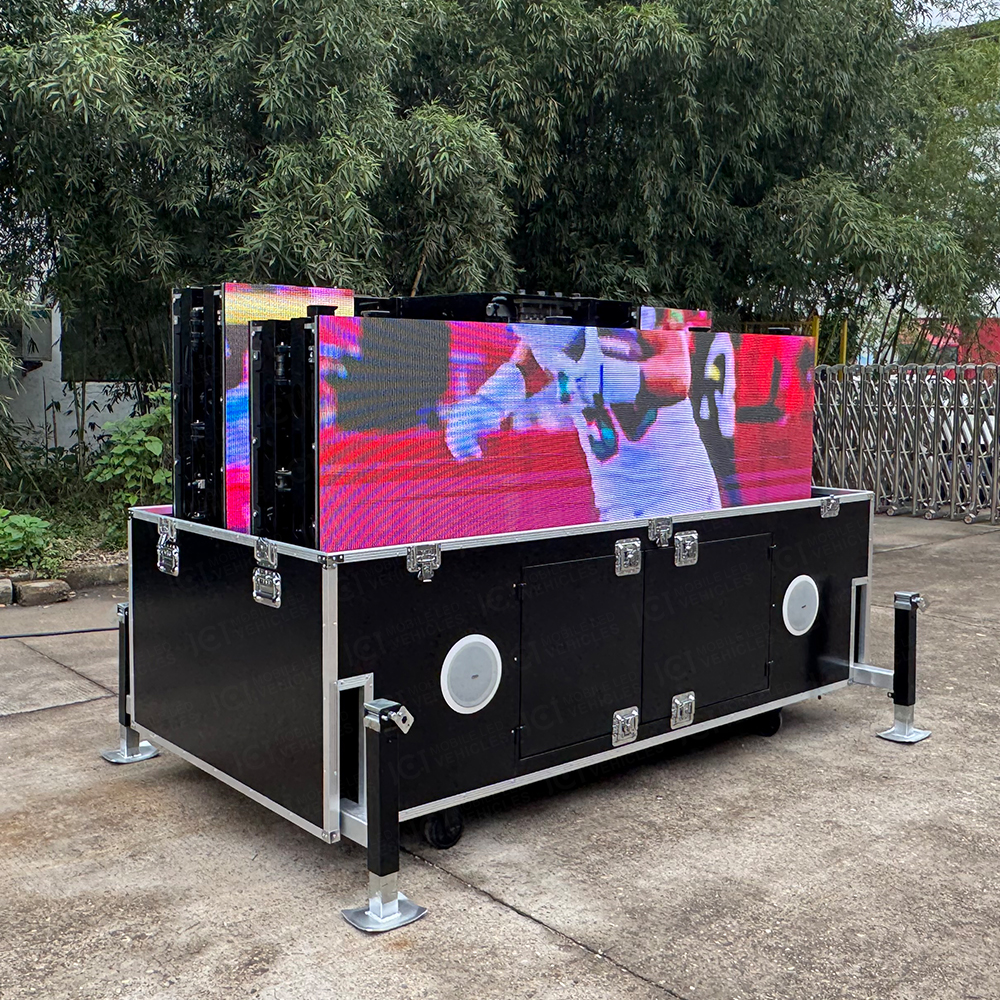

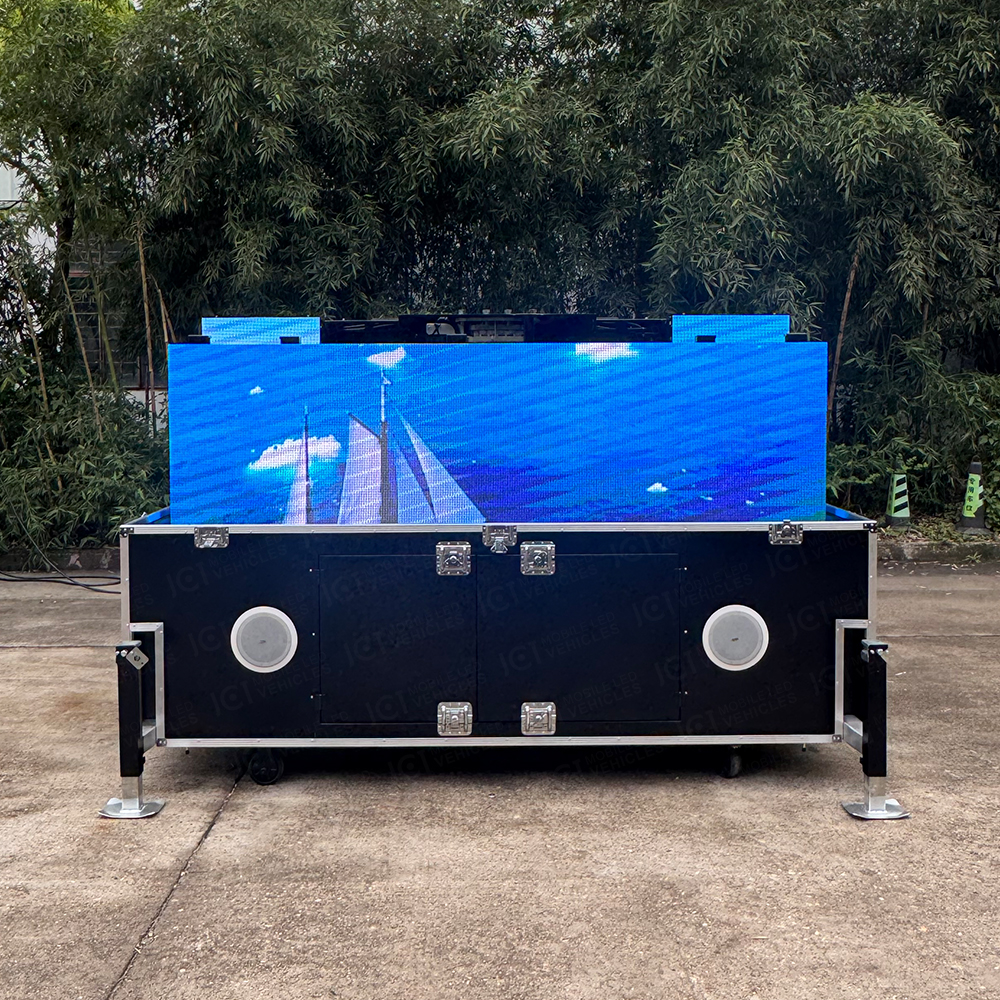

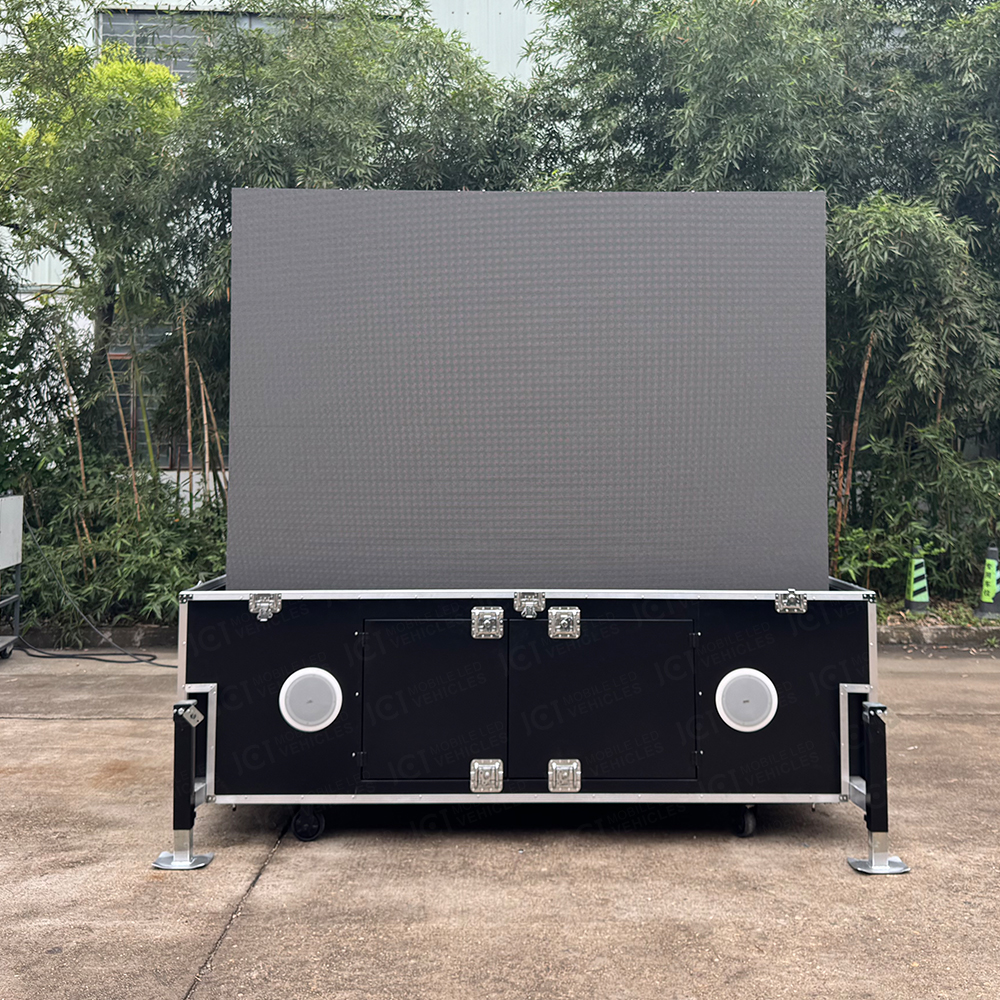

1. Bilateral 180° automatically folding earpiece: When unfolded, it forms a complete display surface without manual assembly; when folded, it fits snugly against the main screen with minimized storage volume.

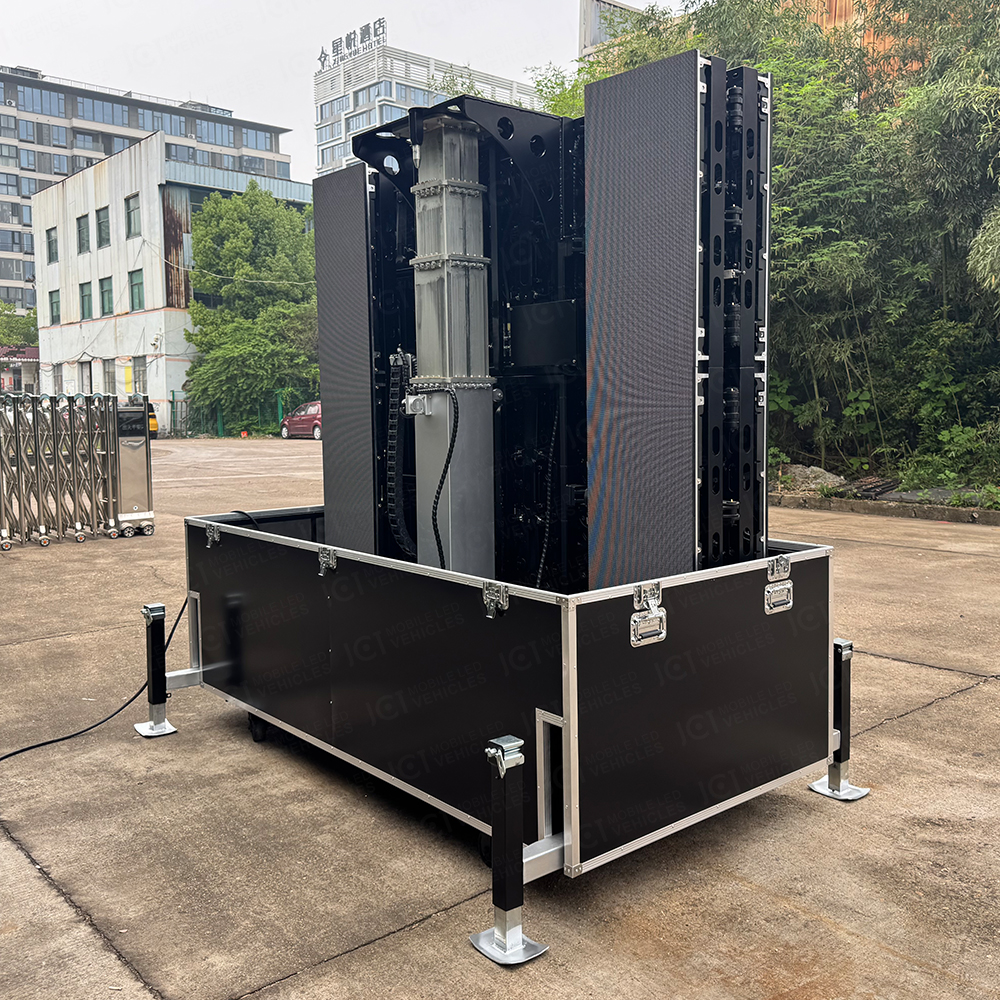

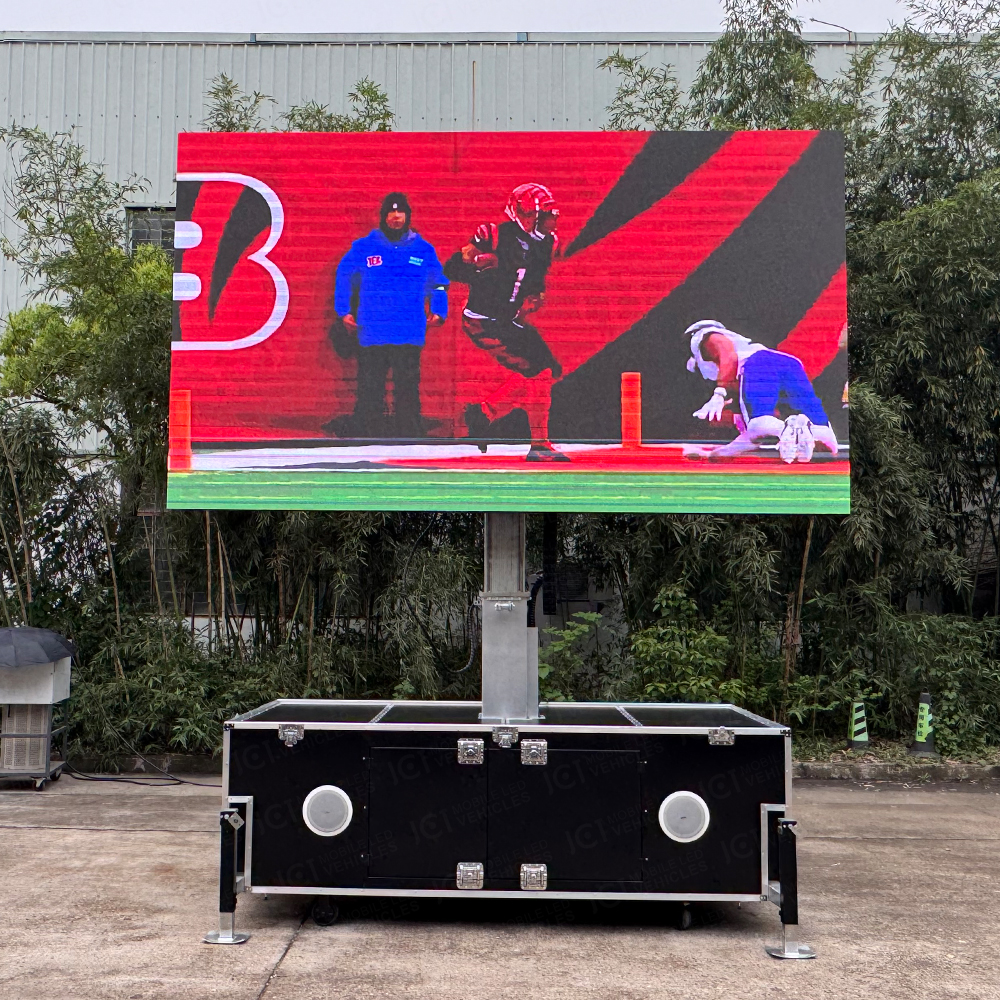

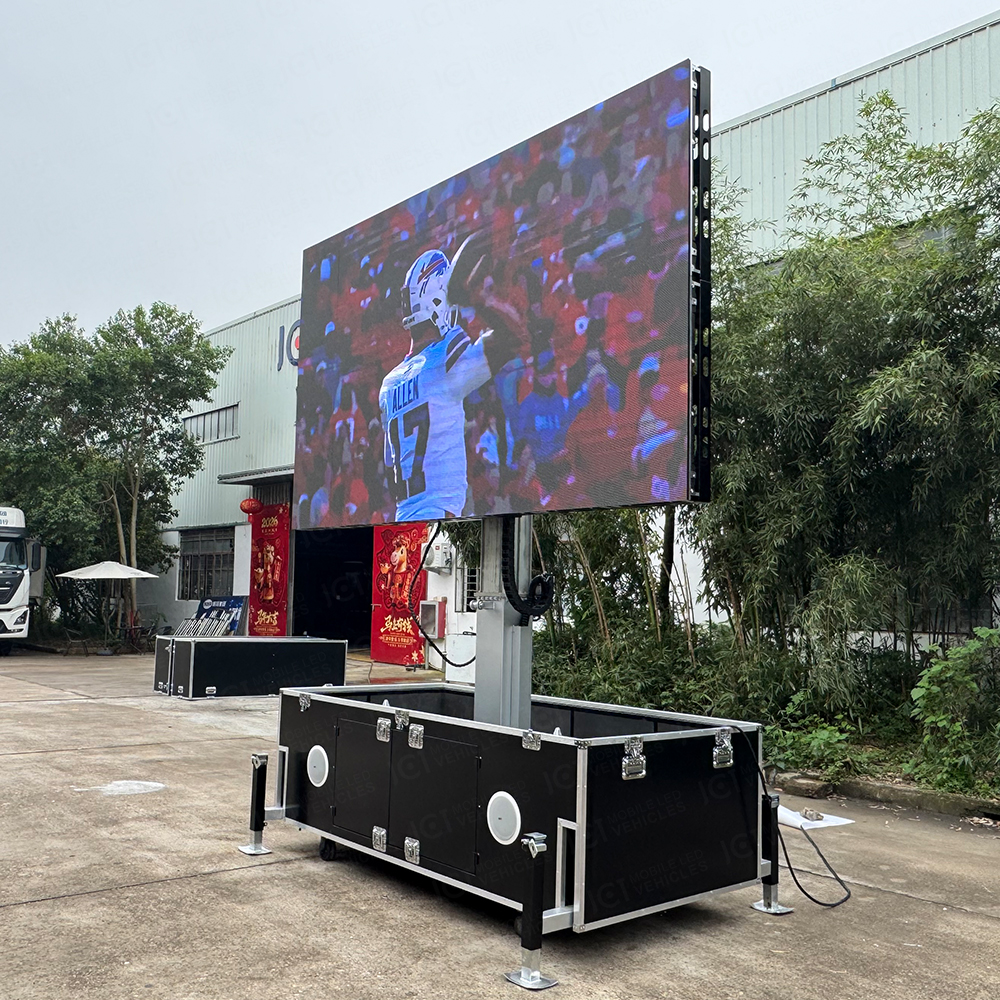

2. Hydraulic lifting system: With a travel distance of up to 2,400 mm and a load capacity of 2,000 kg, it effortlessly raises large screens to the optimal viewing height while ensuring stability for heavy-duty displays.

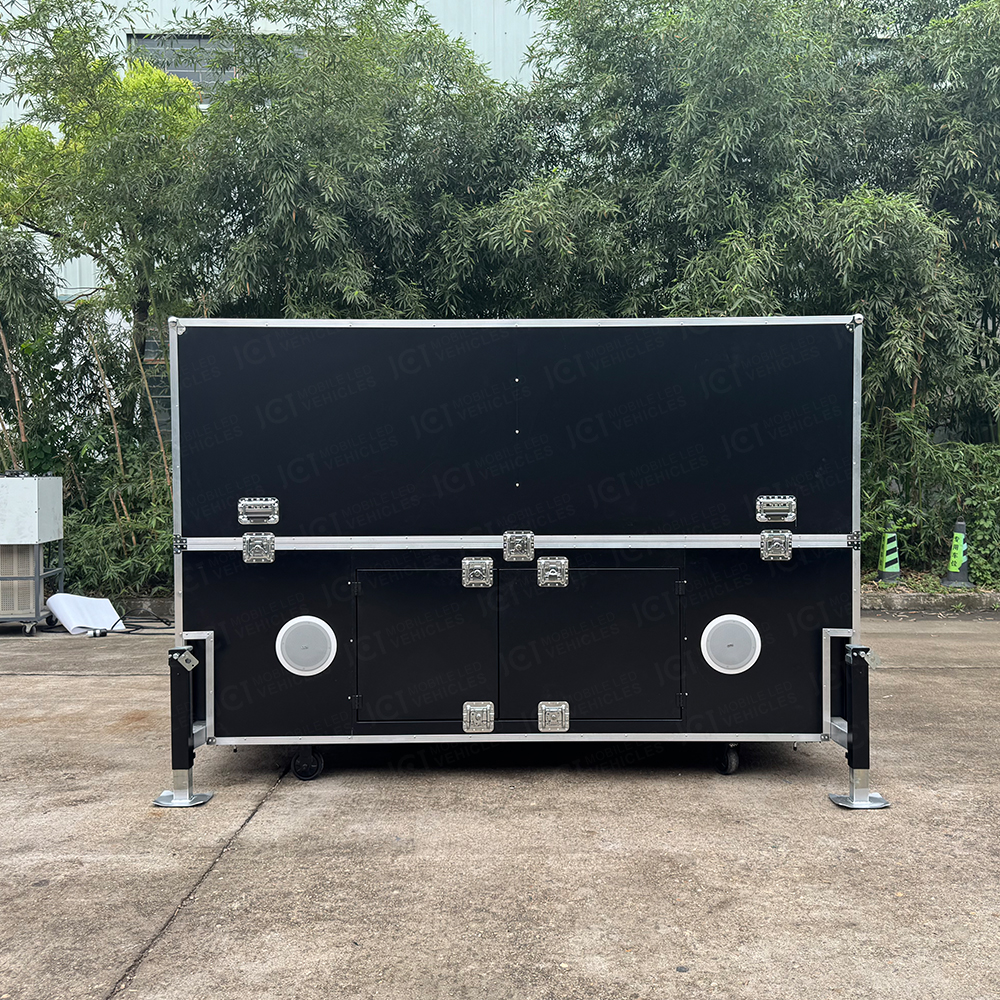

3. Integrated flight case design: The screen is seamlessly integrated with the housing, eliminating the need for additional packaging. Equipped with casters, it can be easily moved by 1–2 individuals across various surfaces such as venues, squares, and grassy areas.
4. One-click remote deployment: No tools or professional installation team required—control lifting and folding remotely, and complete the process from parking to screen activation in just minutes.
outdoor concerts/music festivals: quickly set up stage backdrops to adapt to various venues.
Sports Events: sideline advertisements, extended score display.
Product Promotion/New Store Opening: High-brightness display ensures visibility during daytime.
Corporate annual meetings and weddings: Quick switching between indoor and outdoor settings, without the need for underground wiring.
Exhibitions and pop-up events: Multiple venues visited in a single day, with shipping containers protected to ensure screen safety.
Enhanced efficiency: While traditional LED screen installation requires 4–6 workers for half a day, the PFC-7M system needs only one operator for remote control.
Reduced transportation costs: Air containers are shipped directly, eliminating the need for custom wooden boxes or truck rentals.
Flexible scalability: Multiple PFC-7M units can be arranged side by side to create larger video wall displays.
