Three wheel 3D display vehicle
| Specification | |||
| Chassis | |||
| Brand | JCT electric Vehicle | Range | 60KM |
| Battery pack | |||
| Battery | 12V150AH*4PCS | Recharger | MEAN WELL NPB-450 |
| P4 LED outdoor full color screen (left and right) | |||
| Dimension | 1280mm(W)*960mm(H)*double-sided | Dot pitch | 4mm |
| Light brand | Kinglight | LED packaging method | SMD1921 |
| Brightness | ≥5500cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 700w/㎡ |
| Power Supply | G-energy | DRIVE IC | ICN2153 |
| Receiving card | Nova MRV412 | Fresh rate | 3840 |
| Cabinet material | Iron | Cabinet weight | Iron 50kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| Module power | 18W | Operating Voltage | DC5V |
| HUB | HUB75 | scanning method | 1/8 |
| Module resolution | 80*40Dots | Pixel density | 62500 Dots/㎡ |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Frame rate/ Grayscale, color | 60Hz,13bit |
| Operating temperature | -20~50℃ | ||
| P4 LED outdoor fullcolor screen (Rear side) | |||
| Dimension | 960x960mm | Dot pitch | 4mm |
| Light brand | Kinglight | LED packaging method | SMD1921 |
| Brightness | ≥5500cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 700w/㎡ |
| External power supply | |||
| Input voltage | Single phase 220V | Output voltage | 24V |
| Inrush current | 30A | Aver. power consumption | 250wh/㎡ |
| Control system | |||
| Video processor | NOVA | Model | TB1 |
| Sound system | |||
| Speaker | CDK 40W，2pcs | ||

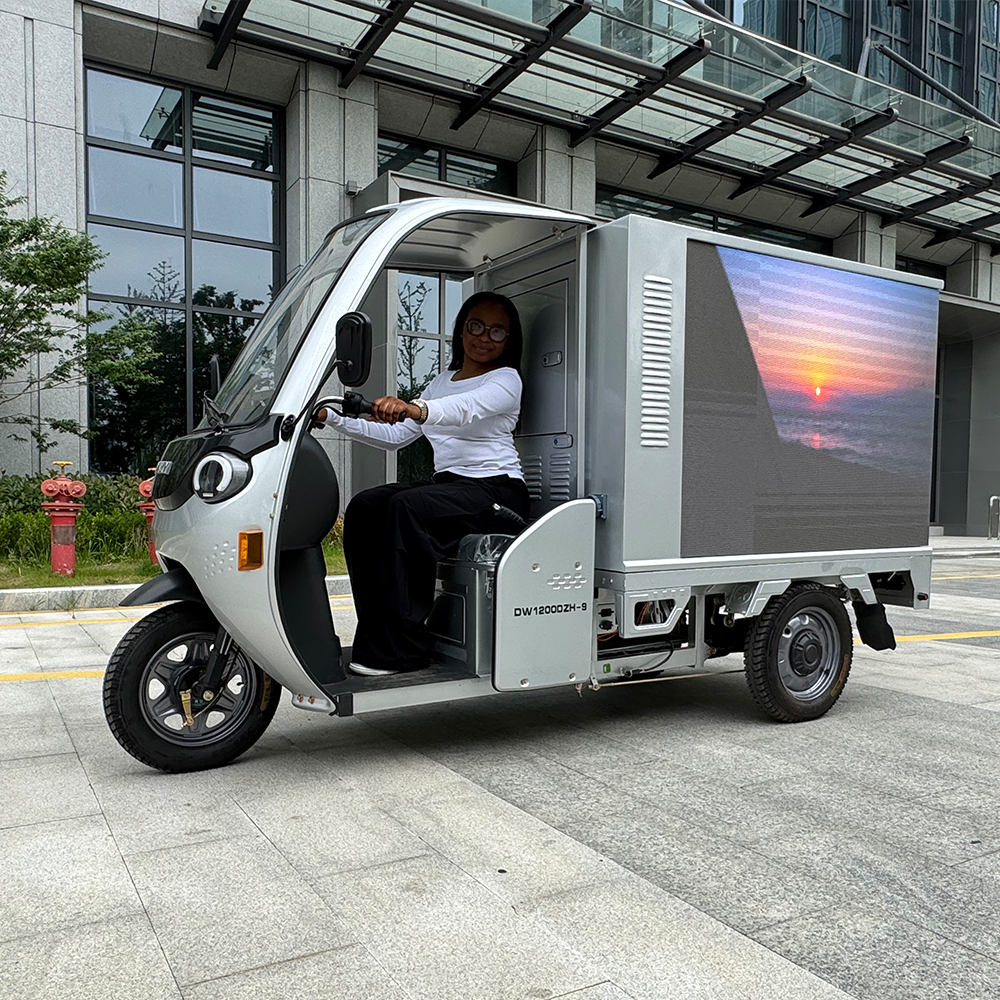

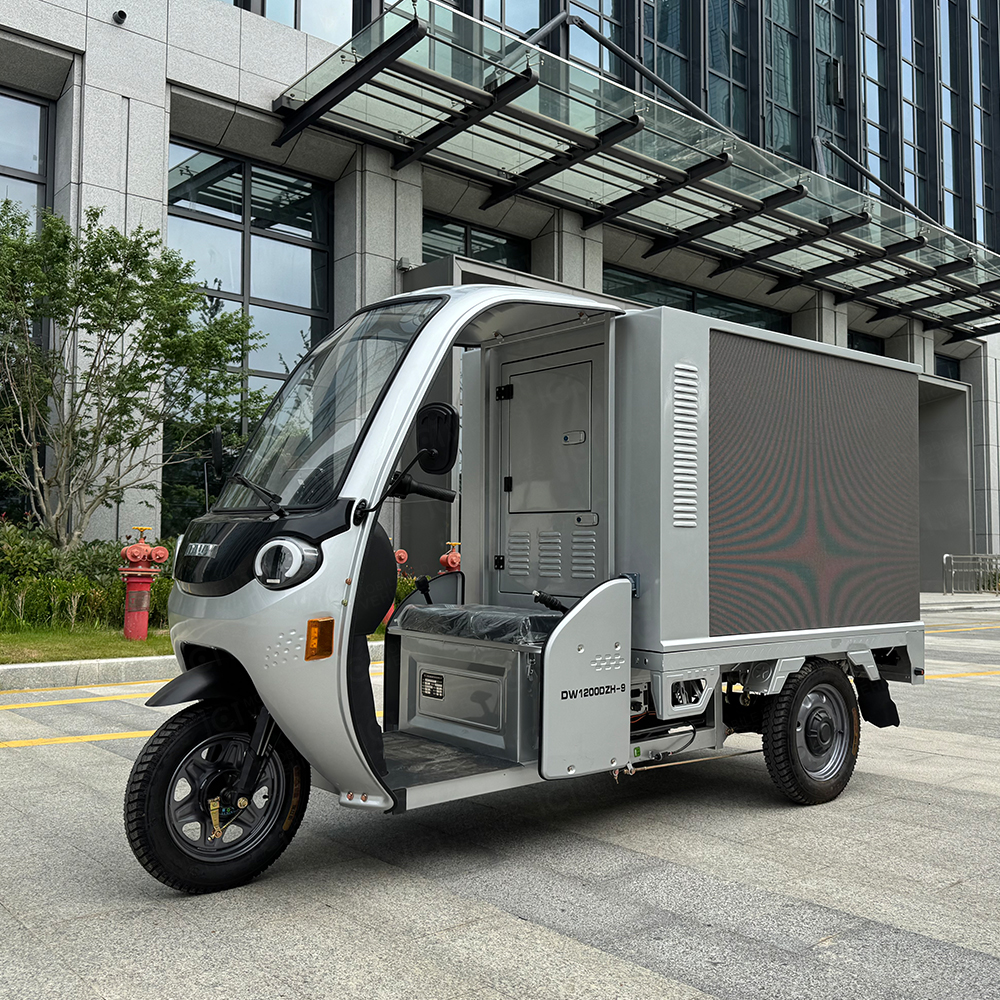

External dimensions
The overall size of the vehicle is 3600x1200x2200mm. The compact body design not only ensures the flexible driving ability of the vehicle in complex environments such as urban streets and business districts, but also provides sufficient space for publicity and display, ensuring that more attention can be attracted during the movement;
Display configuration: Golden three-screen visual effect matrix
Two wings + rear three-dimensional layout;
Three screens synchronous/asynchronous playback function, support dynamic picture splicing and naked eye 3D special effects programming;
Intelligent light sensitivity adjustment to ensure clear visibility in strong light environment;

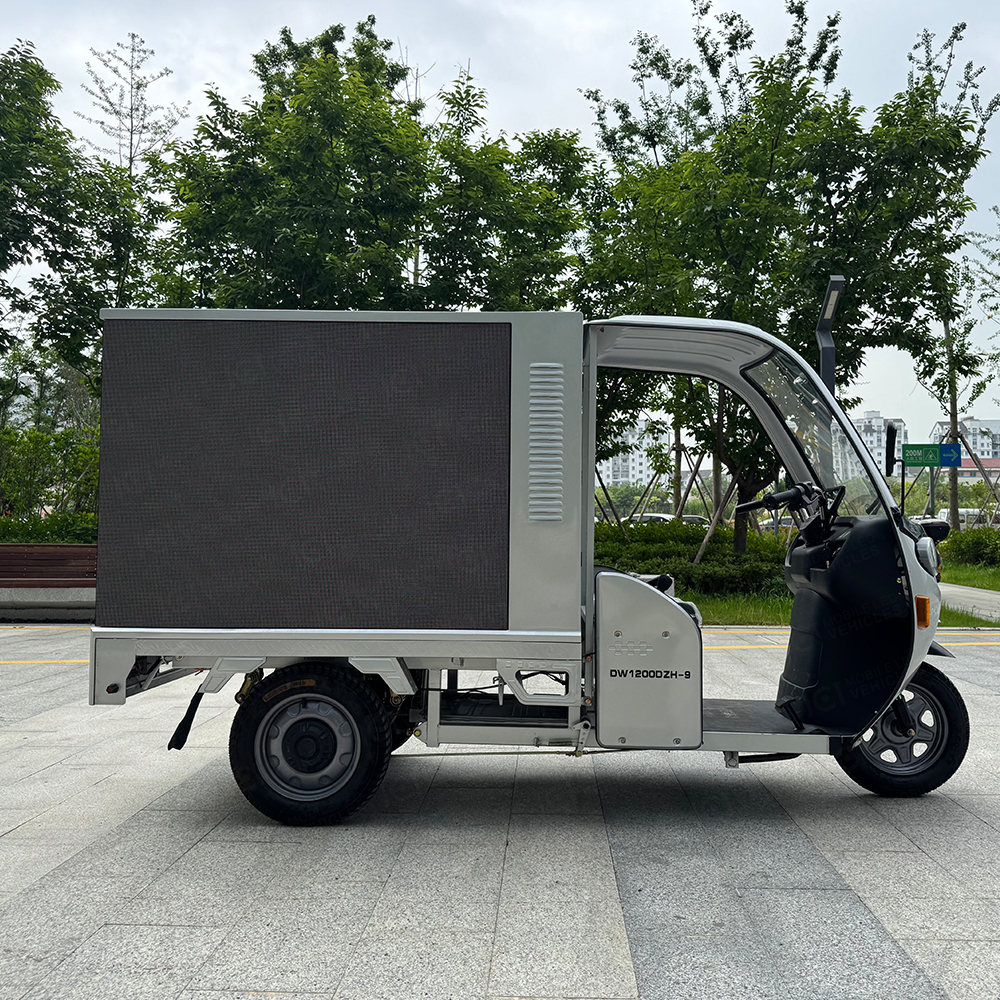

Left full color display (P4): The size is 1280x960mm, using P4 high-definition display technology, small pixel spacing, display picture is delicate and clear, color is bright and rich, can vividly display advertising content, video animation, etc., effectively improve the publicity effect.

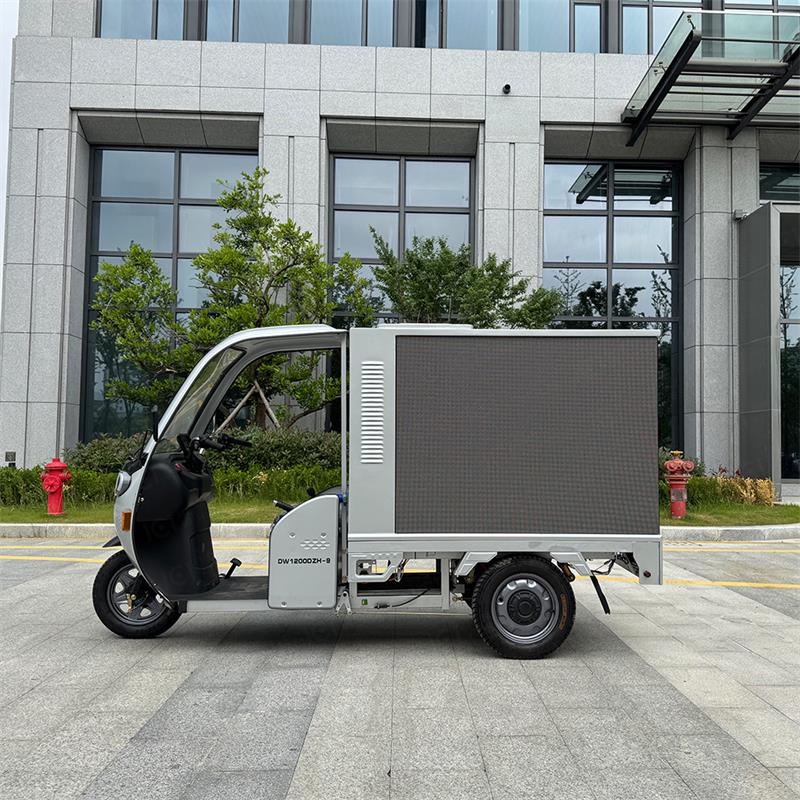

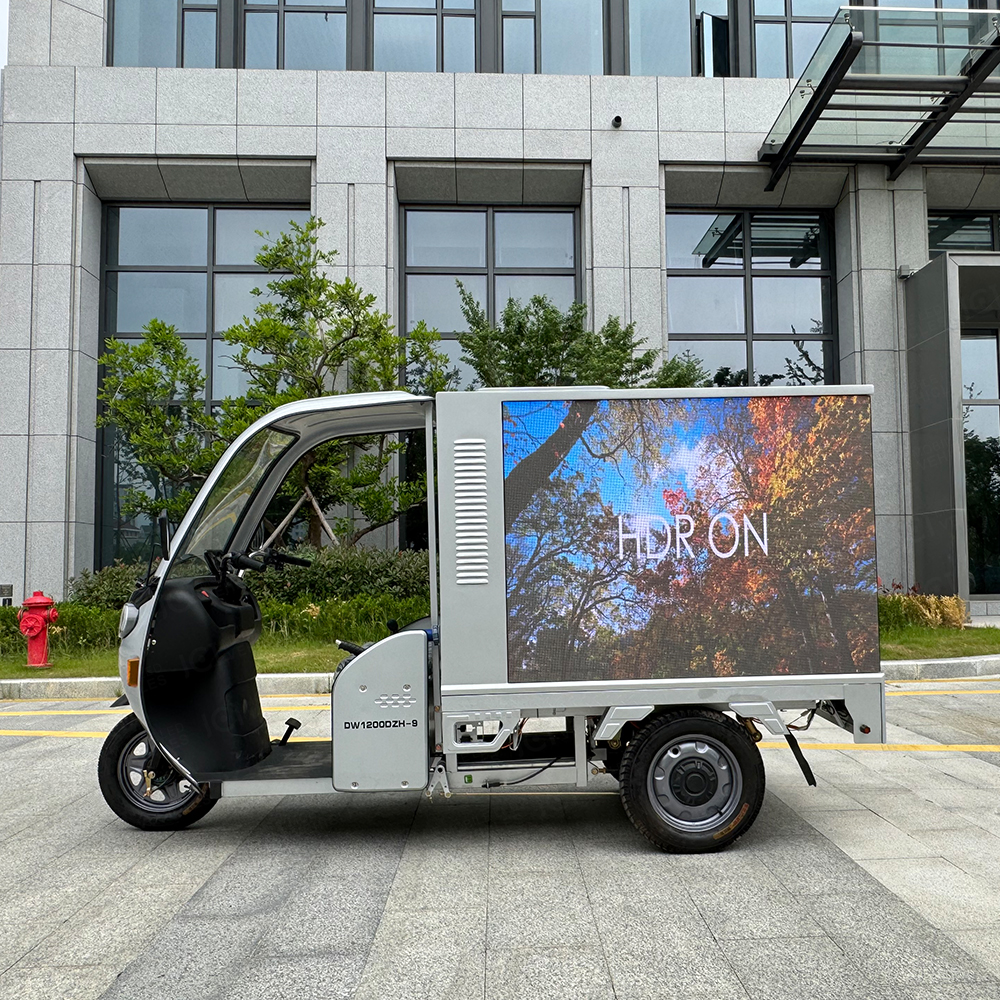

Right full color display (P4): Equipped with a 1280x960mm P4 full color display, which forms a symmetrical layout with the left display, expanding the display range of the publicity picture, so that the audience on both sides can clearly see the publicity content, realizing multi-angle visual publicity

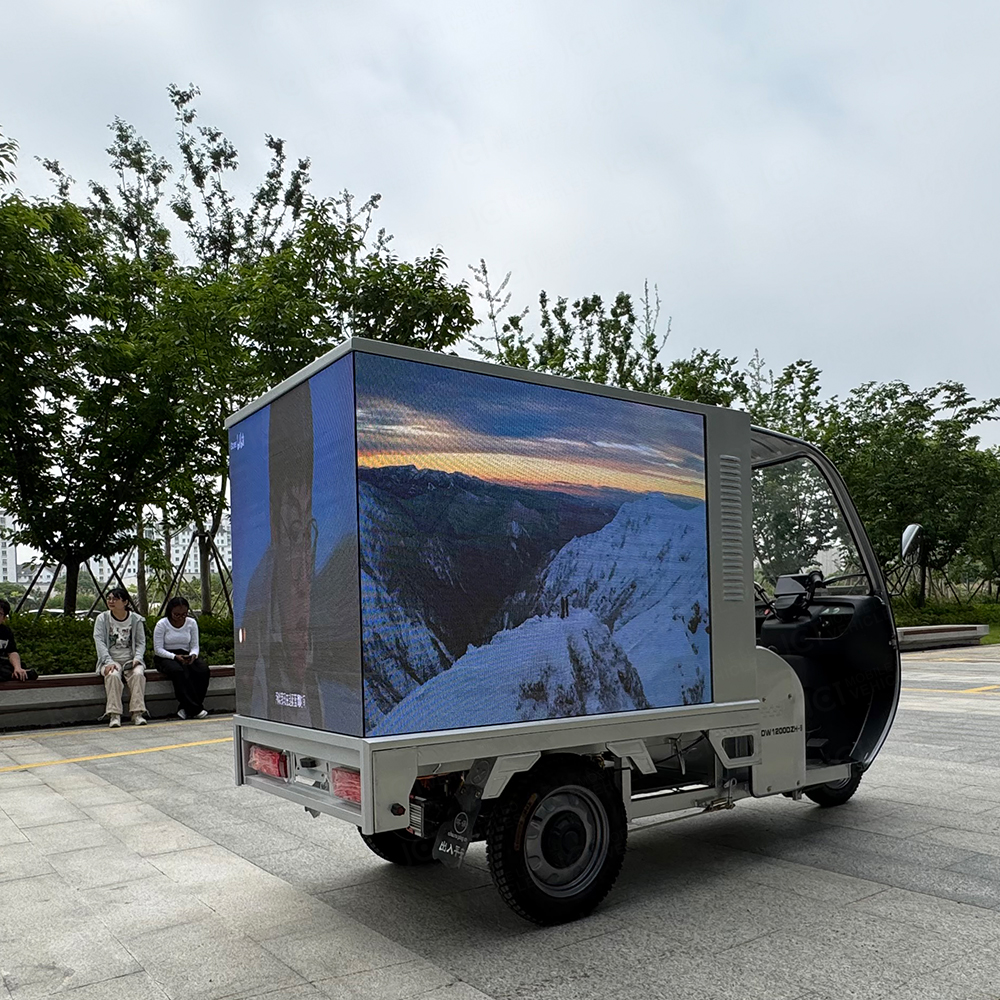

Full color display screen (P4) at the rear: The size is 960x960mm, which further supplements the publicity perspective at the rear, ensuring that people in front, on both sides and behind the vehicle can be attracted by the wonderful publicity pictures during the driving process, forming a full range of publicity matrix;
Multimedia playback system
Equipped with an advanced multimedia playback system, it supports direct U drive playback. Users only need to store the prepared promotional videos, images, and other content on the U drive, then insert it into the playback system for easy and quick playback. The system also supports mainstream video formats such as MP4, AVI, and MOV, eliminating the need for additional format conversion. It has strong compatibility, meeting the diverse needs of different users for promotional materials;
Electric power system
Power consumption: the average power consumption is 250W/㎡/H. Combined with the total area of the vehicle display and other equipment, the overall power consumption is low, energy saving and electricity saving, reducing the user's use cost
Battery configuration: equipped with 4 lead-acid 12V150AH batteries, the total power is up to 7.2 KWH. Lead-acid batteries have the advantages of stable performance, long service life and low maintenance cost, which can provide lasting power support for the publicity vehicle and ensure stable operation in a long time of publicity activities.
Strong publicity ability
E3W1500 The combination of multiple high-definition full-color displays in the three-wheeled 3D display vehicle creates a stereoscopic and immersive promotional effect, capable of showcasing content from all angles and capturing the attention of people from different directions. Outdoor high-definition full-color LED screen display technology ensures high clarity and brightness, allowing for clear visibility even in strong outdoor light conditions, guaranteeing accurate communication of promotional information.
Flexible mobility performance
The three-wheeled design makes the vehicle have good mobility and handling, which can easily shuttle through the city's streets and alleys, shopping malls, exhibition sites and other places to achieve accurate publicity coverage. The compact body size facilitates parking and turning around, adapting to all kinds of complex road conditions.
Easy to use experience
The multimedia playback system supports U disk plug and play, without complex Settings and connections, greatly simplifying the user's operation process. At the same time, the vehicle's power system is simple to manage, users only need to check the battery status regularly, can ensure normal use, reducing the difficulty of use and maintenance costs.
Stable performance guarantee
High-quality materials and advanced manufacturing processes are used to ensure that the vehicle's structure is strong and durable, capable of withstanding bumps and vibrations during daily driving. The power system has been rigorously tested and optimized to provide good stability and reliability, providing a strong guarantee for the smooth operation of the campaign.
E3W1500 Three-wheeled 3D display vehicles are suitable for a variety of promotional scenarios, including but not limited to:
Commercial advertising: for enterprises and businesses to promote products and promotional activities in bustling business districts, streets and other places to enhance brand awareness and product sales
On-site publicity: as a mobile publicity platform, display event information and sponsor advertisements at the exhibition, celebration, concert and other events to increase the atmosphere and influence of the event
Public welfare publicity: used for policy publicity, environmental knowledge popularization, traffic safety education and other purposes for the government and public welfare organizations to expand the scope of public welfare information dissemination
Brand promotion: help enterprises to build and spread their brand image, so that the brand image can be deeply rooted in people's hearts through mobile publicity pictures
E3W1500 Three-Wheeled 3D display Vehicle, with its powerful promotional capabilities, flexible mobility, and stable performance, has become a new choice in the mobile promotional field. Whether for commercial advertising, event promotion, or public welfare dissemination, it can provide users with efficient, convenient, and multi-dimensional promotional solutions, helping users achieve their promotional goals and enhance promotional effectiveness. Choose the E3W1500 Three-Wheeled 3D display Vehicle to make your promotions more attractive and impactful.
