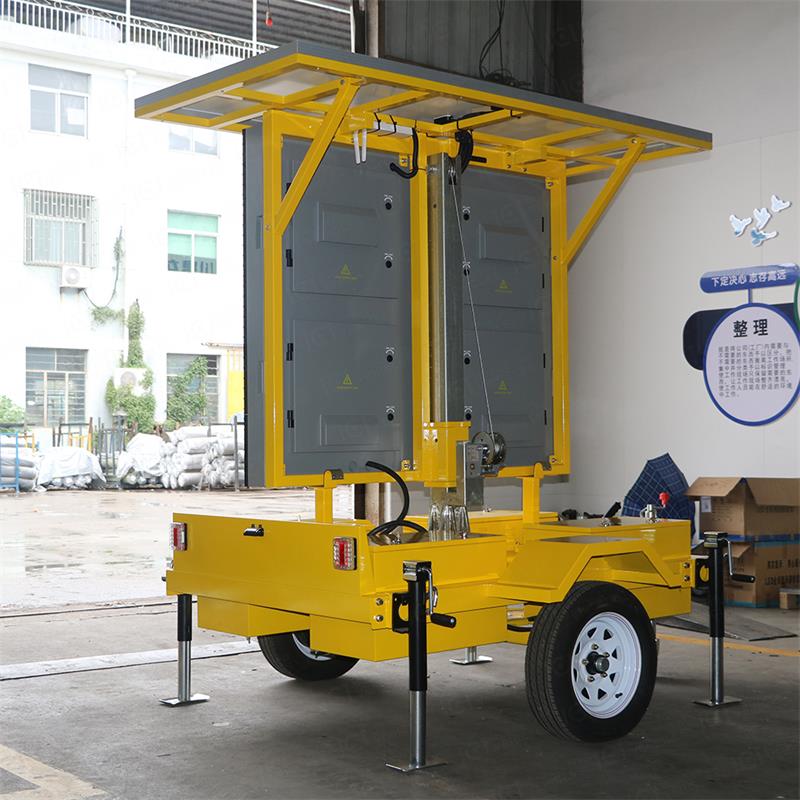

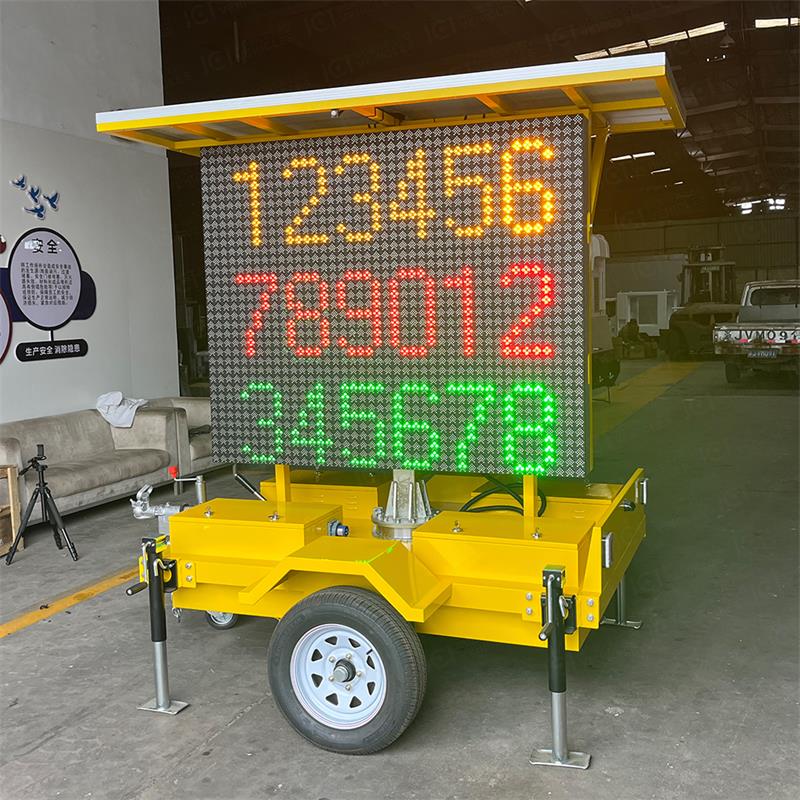

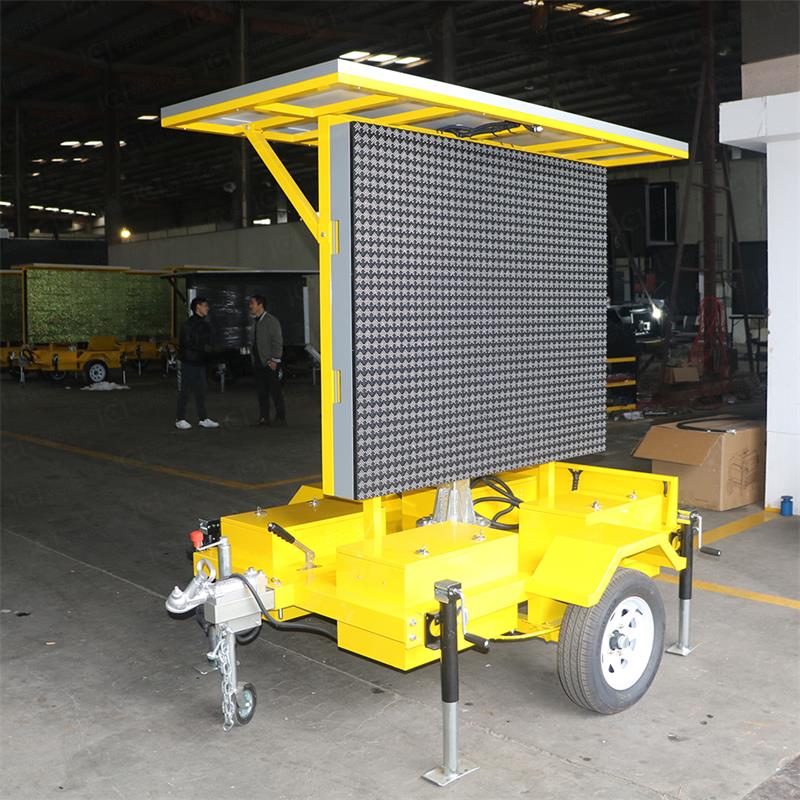

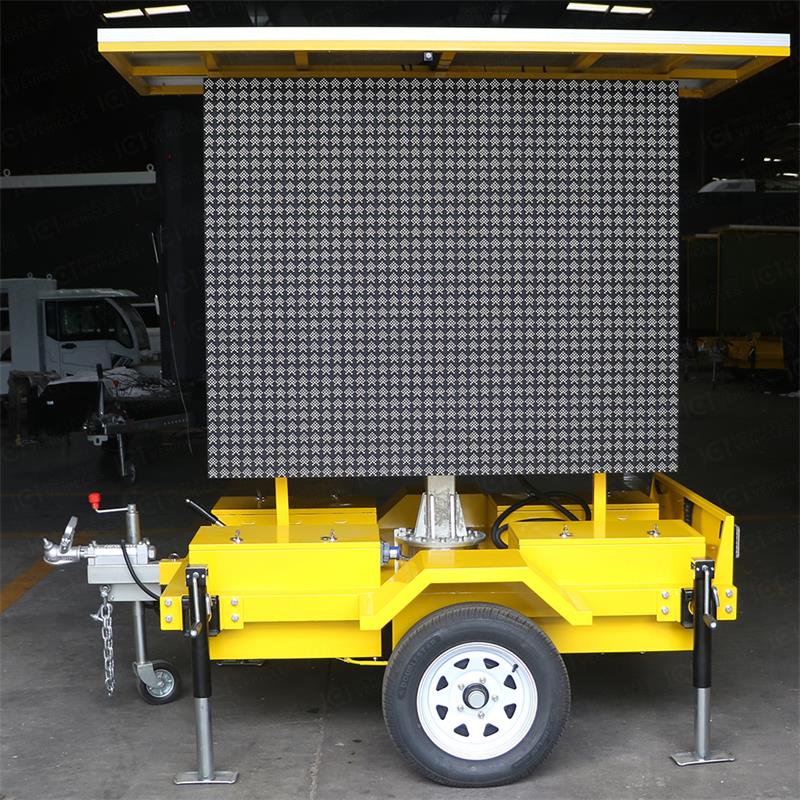

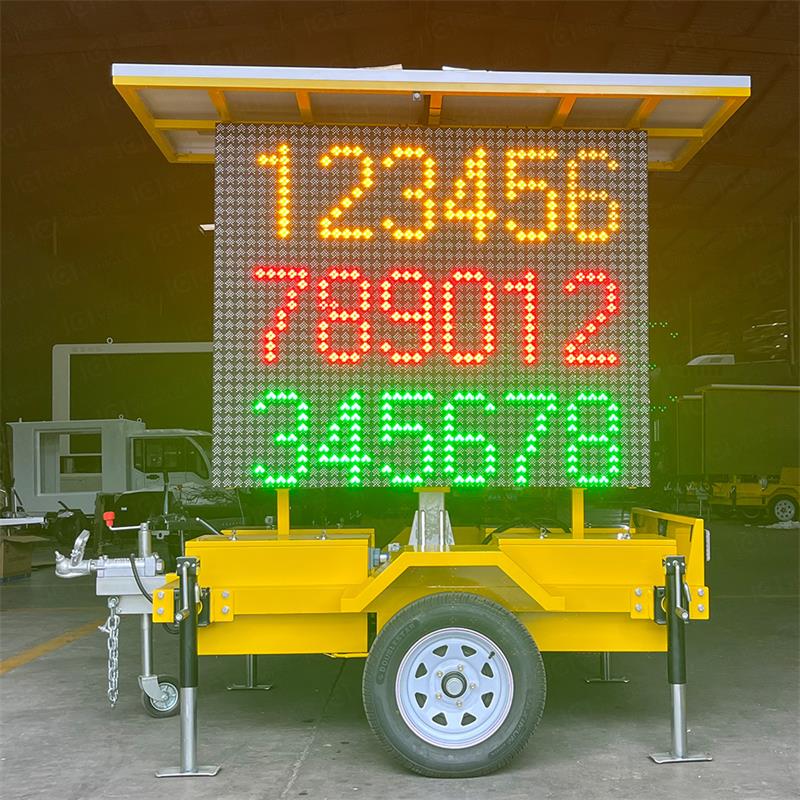

P37.5 five color indicator VMS trailer for 24/7
JCT VMS traffic trailer（single color screen）, abbreviated as VMS in the world, is an important device for the release of traffic conditions and traffic guidance information. It is a traffic information display device with LED light-emitting devices as the basic display unit, with graphics and text display functions.JCT LED VMS Sign Trailer energy-efficient operation makes it working long time than usual.Solar panels charging automatically shuts down when batteries are fully charged, preventing damage. Unique system allows battery charging with solar panels and commercial power.
Advantages of JCT VMS traffic trailer:
1. Large light-emitting chip, low power consumption, energy saving, and supports mixed graphics and text display;
2. High brightness, reasonable viewing angle, intelligent brightness adjustment, the display content is still clearly visible under direct sunlight;
3. Equipped with self-checking function of equipment running status, timely feedback and maintenance;
4. VMS traffic trailer supports multiple communication methods, with adaptive communication interruption function;
5. With reset function, automatic data storage function and remote parameter setting function, it is safe, reliable and convenient;
6. It satisfies the all-weather outdoor working environment, and has high protection performance in terms of rain, moisture, corrosion, and lightning protection.
| Specification | ||||||
| Trailer appearance | ||||||
| Trailer size | 2382×1800×2074mm | Supporting leg | 440~700 load 1 tons | 4 PCS | ||
| Total weight | 629KG | Connector | 50mm ball head, 4 hole Australian impact connector, | |||
| torsion shaft | 750KG 5-114.3 | 1 pce | Tire | 185R12C 5-114.3 | ||
| Max speed | 120Km/h | Axle | Single axle | |||
| Breaking | Hand brake | RIM | SIZE:12*5.5、PCD:5*114.3、CB:84、ET:0 | |||
| led parameter | ||||||
| Product name | 5 colors variable induction screen | Product type | P37.5 | |||
| LED screen size: | 2250*1312.5mm | Input voltage | DC12-24V | |||
| Cabinet size | 2600*1400mm | Cabinet material | Galvanized iron | |||
| Average power consumption | 60W/m2 | Maximum power consumption | 300W/m2 | Whole screen power consumption | 200W | |
| Dot pitch | P37.5 | Pixel density | 711P/M2 | |||
| Led Model | 510.00 | Module Size | 225mm*262.5mm | |||
| Control mode | asynchronous | Maintenance method | Front maintenance | |||
| Led brightness | >10000 | Protection grade | IP65 | |||
| Power parameter (external prower supply) | ||||||
| Input voltage | 9-36V | Output voltage | 24V | |||
| Inrush current | 8A | |||||
| Multimedia control system | ||||||
| receiving card | 2pcs | STM32 with 4G module | 1 pc | |||
| Luminance sensor | 1pc | |||||
| Manual lifting | ||||||
| manual lifting: | 800mm | Manual rotation | 330 degrees | |||
| solar panel | ||||||
| Size | 2000*1000MM | 1 PCS | power | 410W/pcs | Total 410W/h | |
| Solar controller（Tracer3210AN/Tracer4210AN） | ||||||
| input voltage | 9-36V | Output voltage | 24V | |||
| Rated charging power | 780W/24V | Maximum power of photovoltaic array | 1170W/24V | |||
| The battery | ||||||
| Dimension | 510×210x200mm | Battery specification | 12V150AH*4 pcs | 7.2 KWH | ||
| Advantages: | ||||||

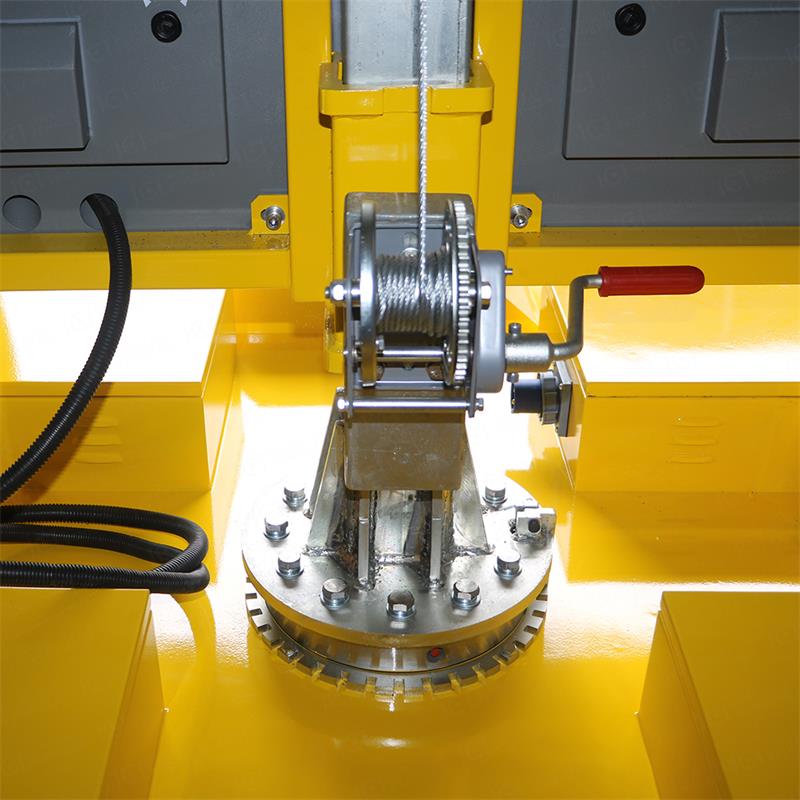

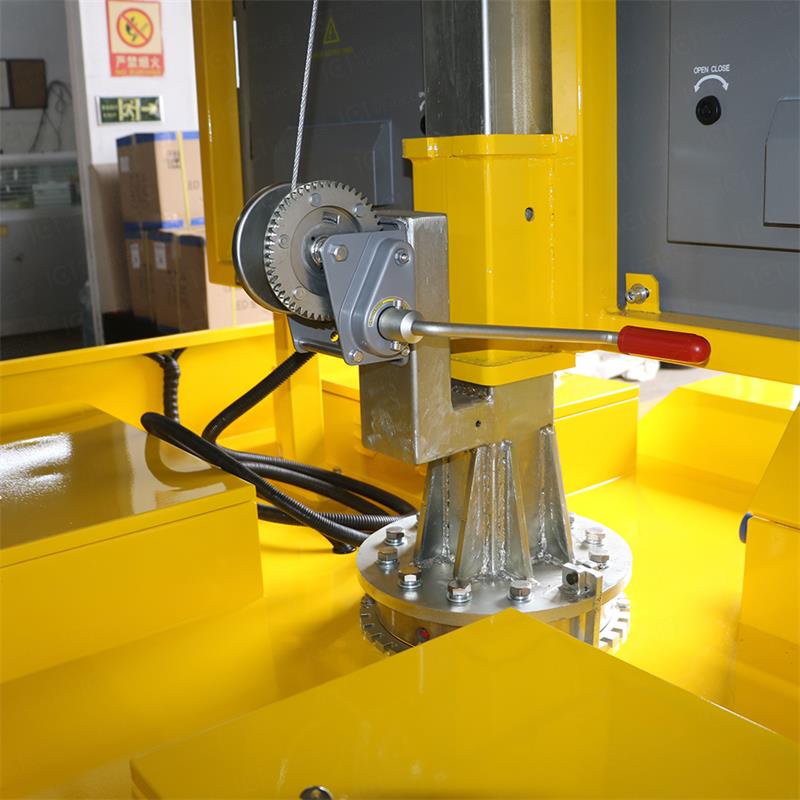

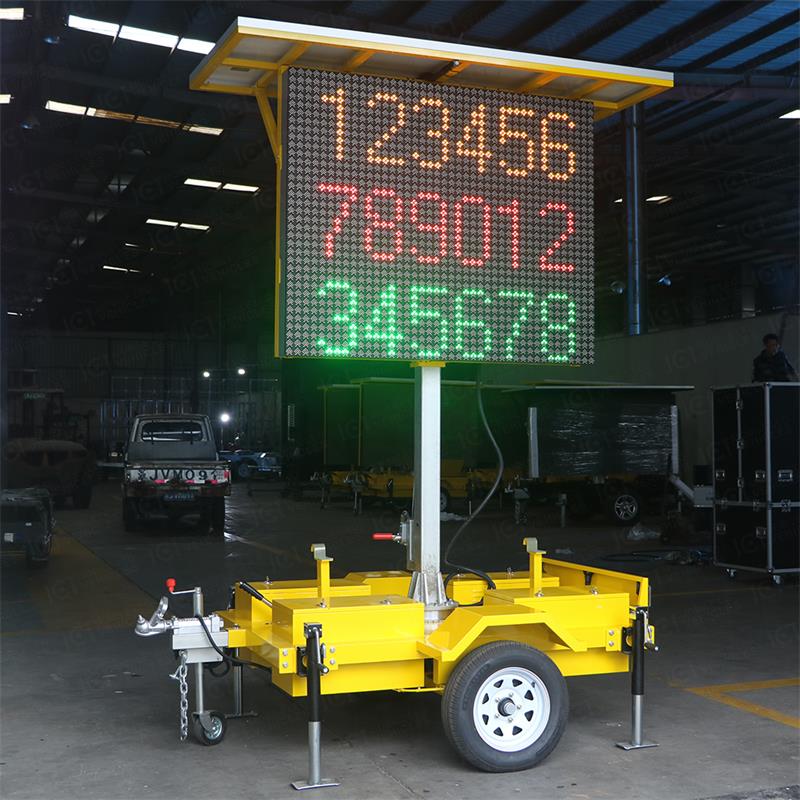

| 1, Can lift 800MM, can rotate 330 degrees. | ||||||
| 2, equipped with solar panels and converters and 7200AH battery, can achieve 365 days a year continuous power supply LED screen. | ||||||
| 3, with brake device! | ||||||
| 4, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. | ||||||
| 5, with 7 core signal connection head! | ||||||
| 6, with tow hook and telescopic rod! | ||||||
| 7. 2 tire fenders | ||||||
| 8, 10mm safety chain, 80 grade rated ring | ||||||
| 9, reflector, 2 white front, 4 yellow sides, 2 red tail | ||||||
| 10, the whole vehicle galvanized process | ||||||
| 11, brightness control card, automatically adjust brightness. | ||||||
| 12,VMS can be controlled wirelessly or wirelessly! | ||||||
| 13. Users can remotely control LED SIGN by sending SMS messages. | ||||||
| 14, equipped with GPS module, can remotely monitor the position of VMS. | ||||||
