12.5m long mobile led containerfor product promotion

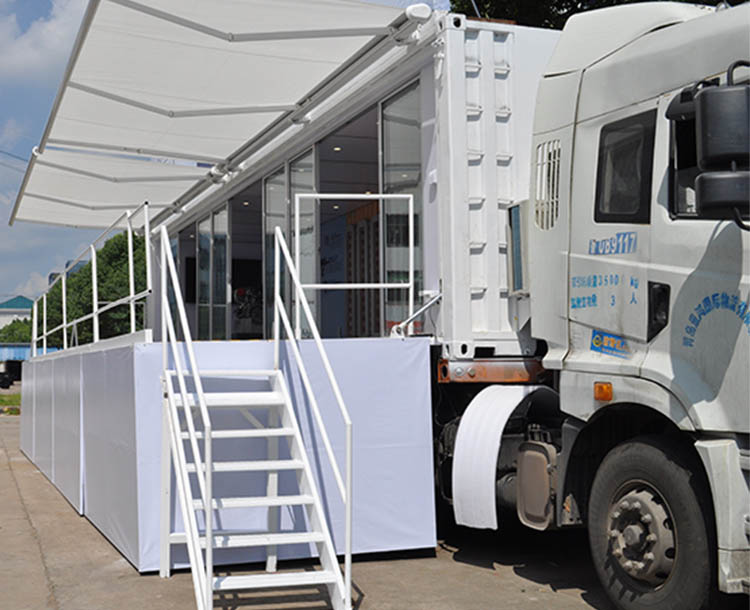

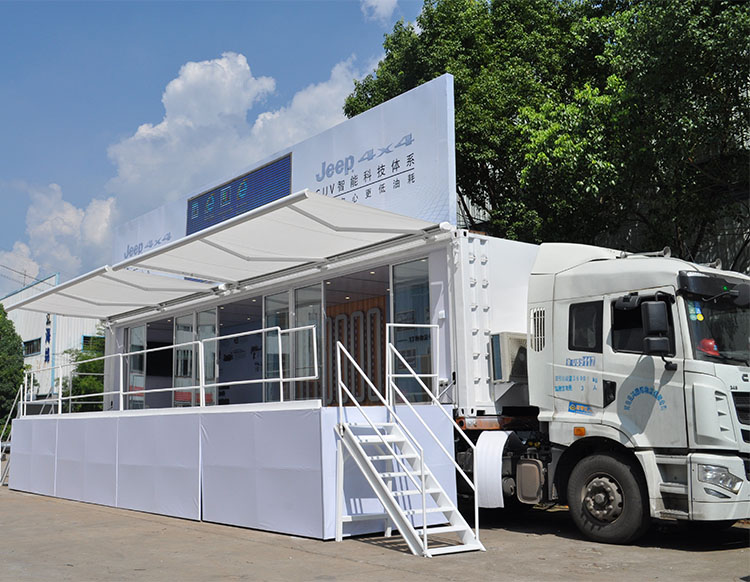

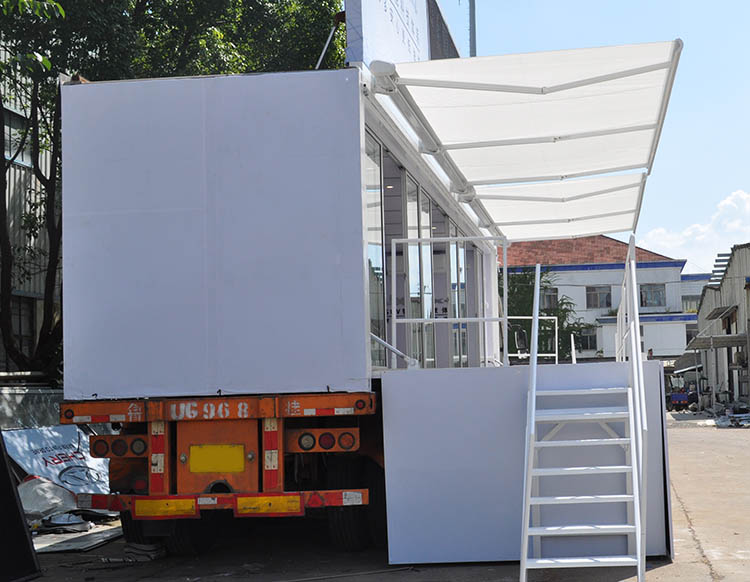

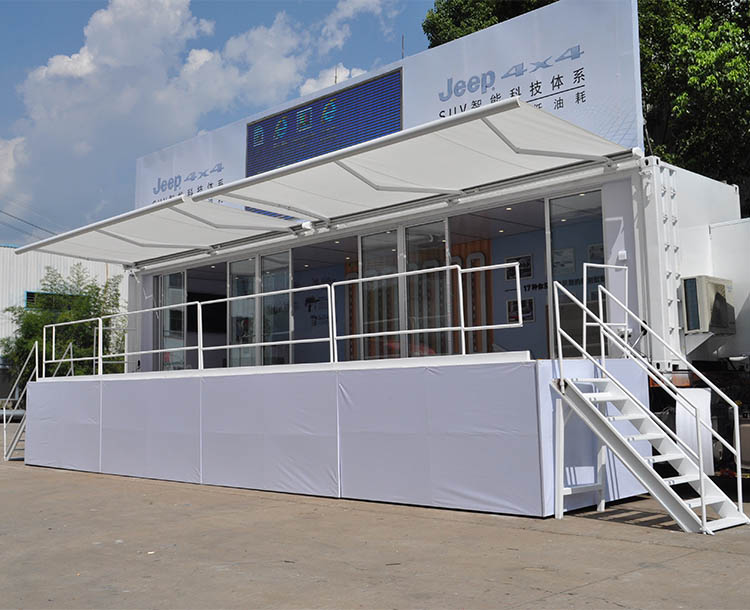

JCT 40ft LED Container-CIMC（Model：MLST LED Show Container） is a special vehicle that is convenient for mobile performances and can be deployed into a stage. The 40ft LED Container is equipped with an outdoor LED large screen, a fully automatic hydraulic stage, and professional audio and lighting. It is pre-installed in the car area, and can be modified according to the characteristics of the activity to optimize the internal space. It is more effective and faster without the traditional stage construction and disassembly defects of time-consuming and labor-intensive, and can be closely integrated with other marketing communication methods to achieve functional derivative .
| Specification | |||
| Heavy truck head | |||
| Brand | Auman | Generator | Cummins |
| Semi-Trailer chassis | |||
| Brand | JINGDA | Dimension | 12500mm×2550 mm×1600 mm |
| Total mass | 4000KG | Truck body | 12500*2500*2900mm |
| CONTAINER BODY | |||
| Main box structure | Steel keel 12500*2500*2900 | Box finish and interior decoration | The exterior decoration of the bee-worm board and the interior decoration of the aluminum-plastic board |
| LED Screen | |||
| Dimension | 9600mm*2400mm | Module Size | 320mm(W)*160mm(H) |
| Light brand | kinglight | Dot Pitch | 4mm |
| Brightness | ≥6000CD/M2 | Lifespan | 100,000hours |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 700w/㎡ |
| Power Supply | G-energy | DRIVE IC | ICN2513 |
| Receiving card | Nova MRV316 | Fresh rate | 3840 |
| Cabinet material | Iron | Cabinet weight | Iron 50kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 62500 Dots/㎡ |
| Module resolution | 80*40Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| Power supply system | |||
| Dimension | 1850mm x 900mm x 1200mm | Power | 24KW |
| Brand | Global Power | Number of cylinders | Water-cooled inline 4 |
| Displacement | 1.197L | Bore x stroke | 84mm x 90mm |
| Multimedia system | |||
| Video processor | NOVA | Model | VX400 |
| Luminance sensor | NOVA | Multi-function card | NOVA |
| Sound system | |||
| The power amplifier | 1000 W | Speaker | 4 *200 W |
| Power parameter | |||
| Input Voltage | 380V | Output Voltage | 220V |
| Current | 30A | ||
| Electrical system | |||
| Circuit control and electrical appliances | National standard | ||
| The hydraulic system | |||
| LED display hydraulic lifting cylinder and steel sleeve | 2 hydraulic cylinders, 2 steel sleeves, stroke: 2200mm | Stage hydraulic cylinder and oil pipe, stage support and other accessories | 1 set |
| Expansion box hydraulic cylinder | 2 pcs | Main compartment hydraulic support leg | 4 pcs |
| Expansion box guide rail | 6 pcs | Hydraulic support for lateral expansion | 4 pcs |
| Capacity expansion box lock oil cylinder | 2 pcs | Expansion box hydraulic support foot | 2 pcs |
| Hydraulic pump station and control system | 1 pcs | Hydraulic remote control | 1 pce |
| Stage and guardrail | |||
| Left stage size（Double fold stage） | 11000*3000mm | The ladder（with Stainless steel handrail) | 1000 mm wide*2 pcs |
| Stage structure（Double fold stage） | All around the big keel 100*50mm square pipe welding, the middle is 40*40 square pipe welding, the above paste 18mm black pattern stage board | ||
Tolerance is great, mobile is invincible
40ft LED Container has specially selected card power and space advantages, all stage expressions are pre-installed in the car area, and all kinds of exhibitions can be completed by simple operations during activities at designated locations: large-scale terminal promotions, large-scale art tours, and mobile Exhibitions, mobile theaters, etc., ignoring time and location restrictions make everything possible.
Cutting-edge integration and efficient execution
The 40ft LED Container has new cutting-edge integrated design concept is no longer satisfied with a single media playback, nor is it just a simple installation, but according to the characteristics of the activity, the internal space is optimized through modification, without the traditional stage construction and disassembly defects of time and labor, more effective and faster. It can also be closely integrated with other marketing and communication methods to achieve functional derivation, such as on-site studio trucks with professional TV acquisition and editing equipment, mobile carnivals equipped with professional entertainment equipment, mobile KTV, or can be decorated and modified to become brand theme stores according to brand customer needs.
