Specification | |||

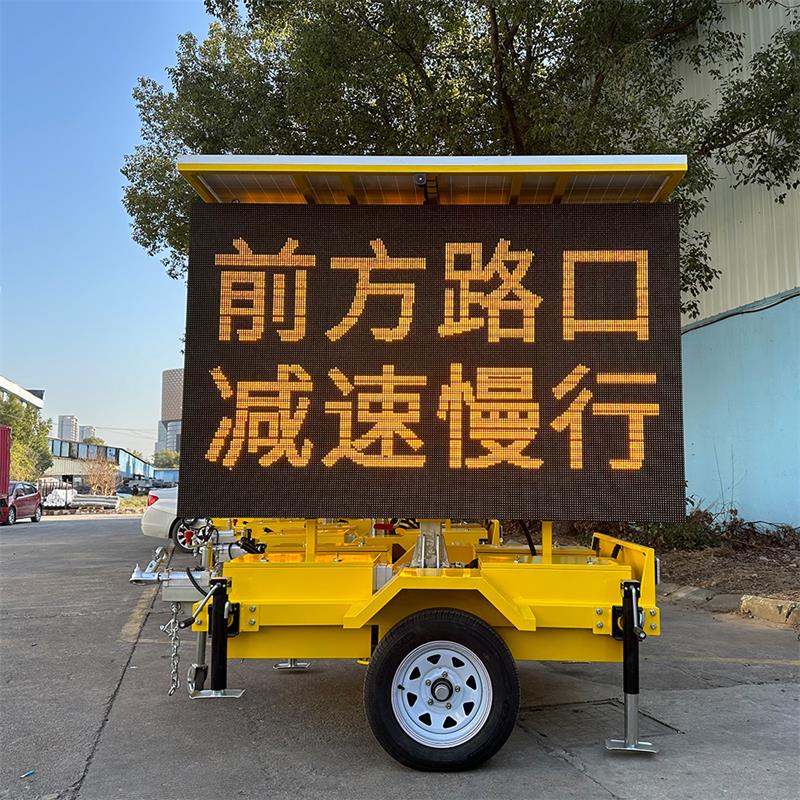

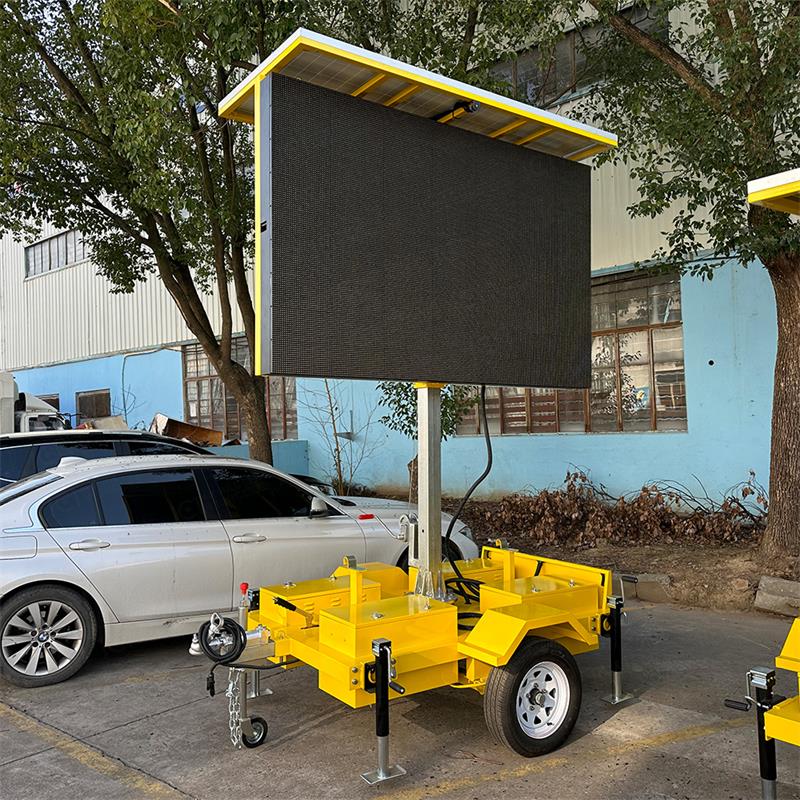

Trailer appearance | |||
Trailer size | 2350×1800×2280mm | LED screen size: | 2304*1280MM |
Torsion shaft | 1 ton 5-114.3,1 pce | Tire | 185R14C 5-114.3,2 pcs |
Supporting leg | 440~700 load 1.5 tons,4 PCS | Connector | 50mm ball head, 4 hole Australian impact connector, wire brake |
Max speed | 100Km/h | Axle | Single axle,Torsional axle |
Breaking | Hand brake | RIM | SIZE:14*5.5、PCD:5*114.3、CB:84、ET:0 |
LED Screen | |||
Dimension | 2304mm*1280mm | Module Size | 256mm(W)*256mm(H) |
light brand | Gold wire light | Dot Pitch | 16 mm |
Brightness | 6500cd/㎡ | Lifespan | 100,000hours |
Average Power Consumption | 20w/㎡ | Max Power Consumption | 60w/㎡ |
Drive IC | ICN2069 | Fresh rate | 3840 |
Power Supply | LAVALEE | Receiving card | NOVA MRV416 |
Cabinet size | 2384*1360mm | system support | Windows XP,WIN 7, |
Cabinet material | Iron | Cabinet weight | Iron 50kg/m2 |

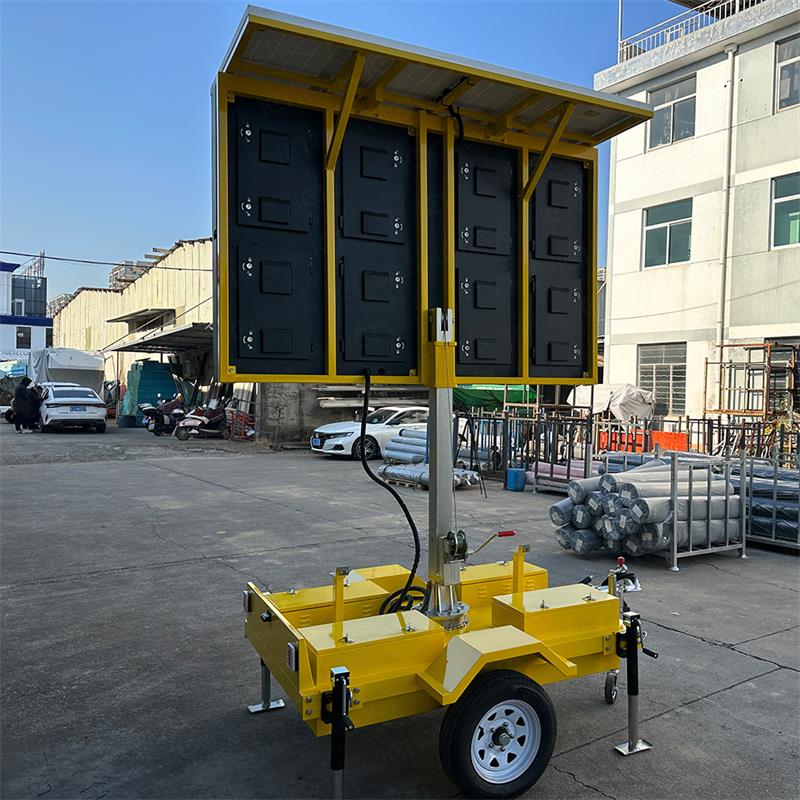

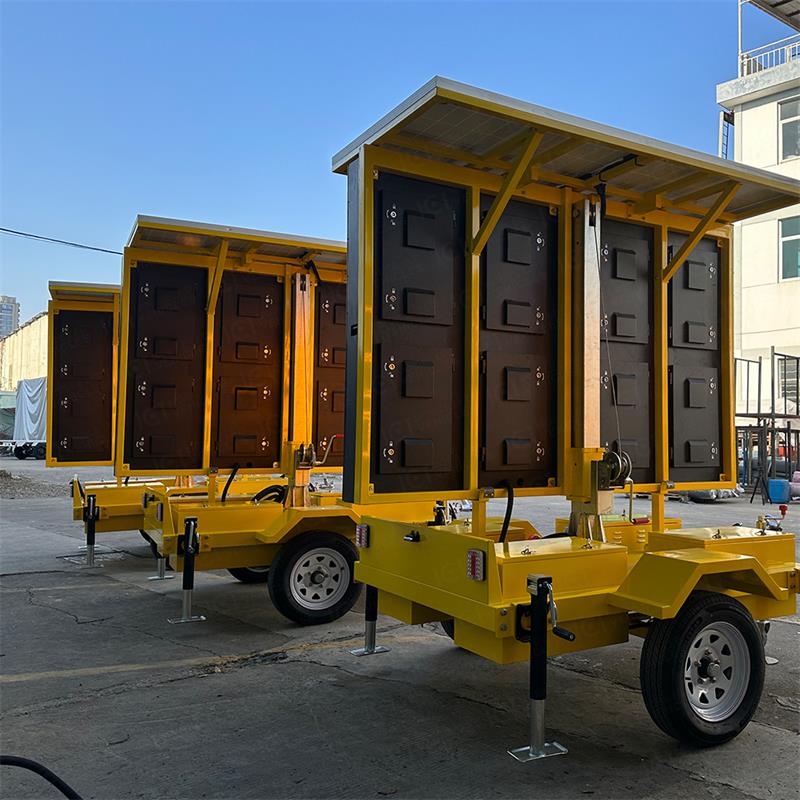

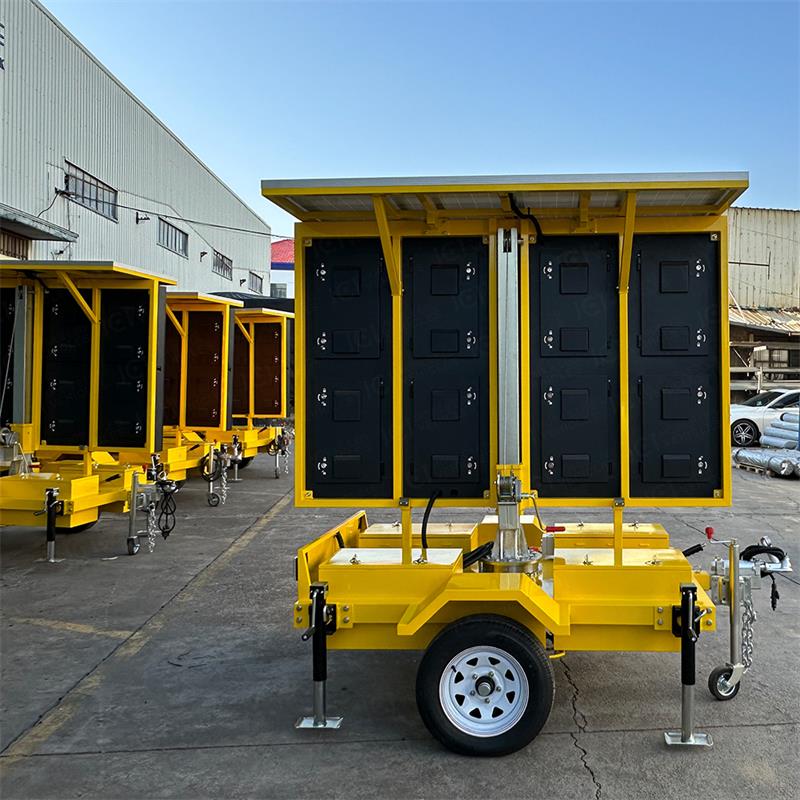

Maintenance mode | Rear service | Pixel structure | 2Yellow |
LED packaging method | HZ-4535RGB4MEX-M00 | Operating Voltage | DC 4.2、3.8V |
Module power | 4W | scanning method | 1/8 |
HUB | HUB75 | Pixel density | 3906 Dots/㎡ |
Module resolution | 16*16Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
Viewing angle, screen flatness, module clearance | H:100°V:100°、<0.5mm、<0.5mm | Operating temperature | -20~50℃ |
Solar panel | |||
Dimension | 1380mm*700mm*4PCS | Power | 200W*4=800W |
Solar controller(Tracer3210AN/Tracer4210AN) | |||
input voltage | 9-36V | Output voltage | 24V |
Rated charging power | 780W/24V | Maximum power of photovoltaic array | 1170W/24V |
The battery | |||
Dimension | 181mm*192mm*356mm | Battery specification | 12V200AH*4Pcs,9.6KWH |
Power parameter (external prower supply) | |||
Input voltage | Single phase 220V | Output voltage | 24V |
Inrush current | 8A | ||
Multimedia control system | |||
Player | Nova JT50-4G | receiving card | NOVA MRV316 |
Luminance sensor | NOVA NS060 | ||
Hydraulic lifting | |||

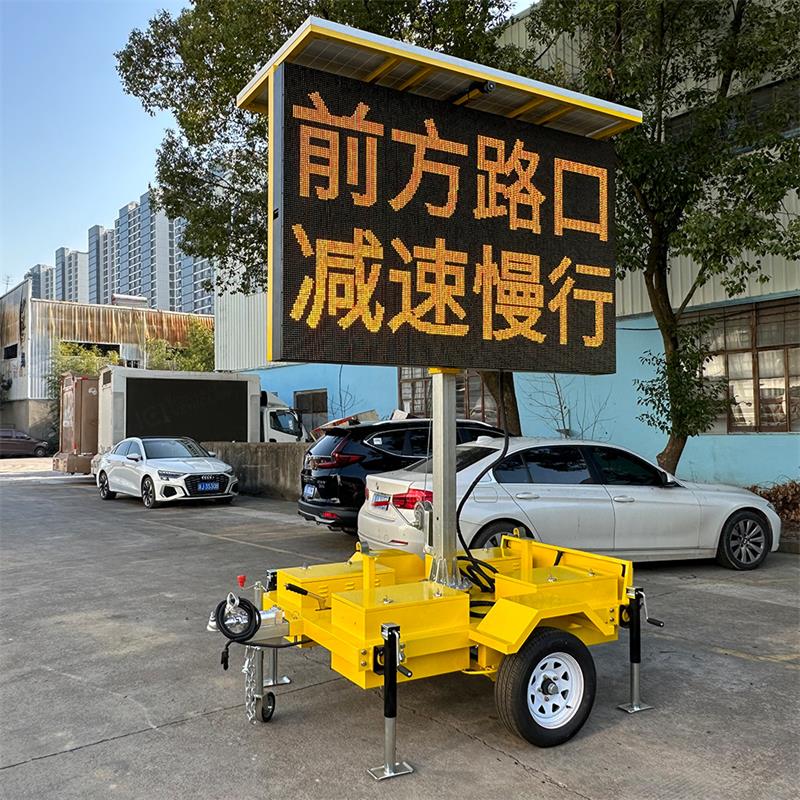

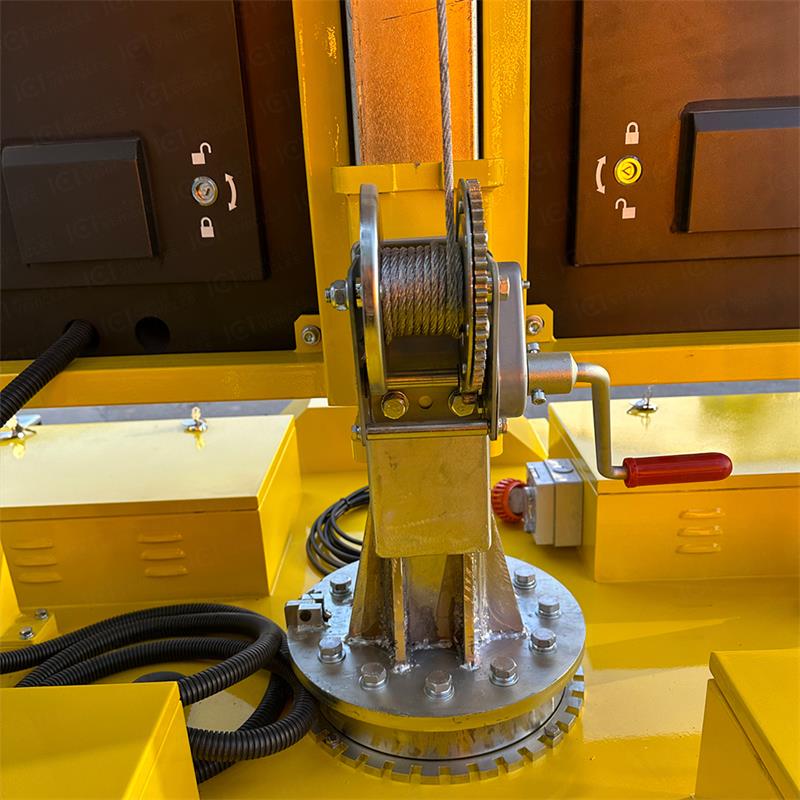

Hydraulic lifting | 1000mm | Manual rotation | 330 degrees |
Advantages: | |||
1, can lift 900MM, can rotate 360 degrees. 2, equipped with solar panels and converters and 9600AH battery, can achieve 365 days a year continuous power supply LED screen. 3, with brake device! 4, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. 5, with 7 core signal connection head! 6, with tow hook and telescopic rod! 7,two tire fenders 8, 10mm safety chain, 80 grade rated ring; 9, reflector, 2 white front, 4 yellow sides, 2 red tail 10, the whole vehicle galvanized process 11, brightness control card, automatically adjust brightness. 12,VMS can be controlled wirelessly or wirelessly! 13. Users can remotely control LED SIGN by sending SMS messages. 14, equipped with GPS module, can remotely monitor the position of VMS. |

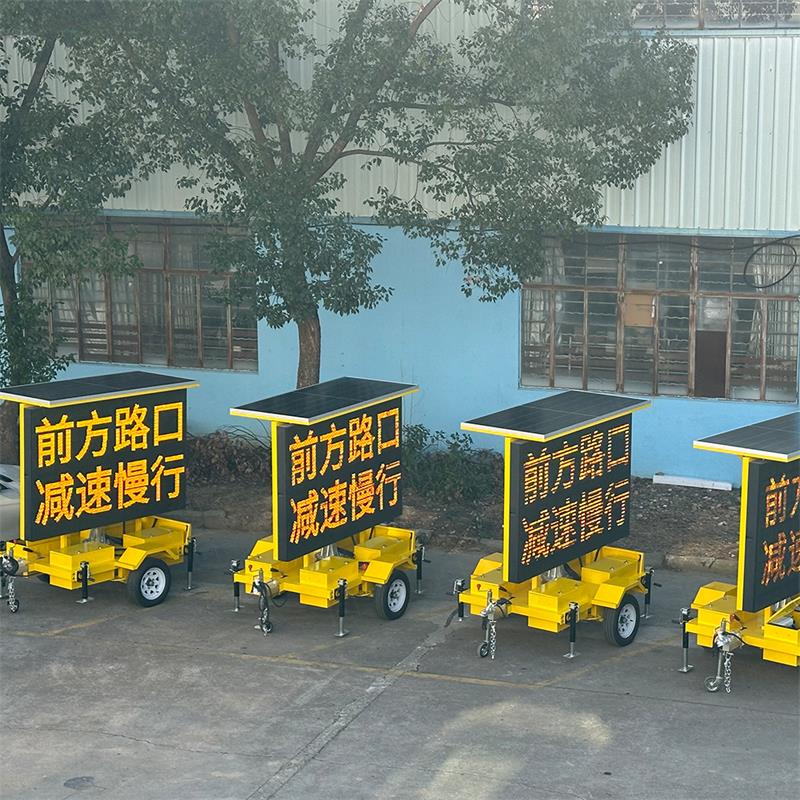

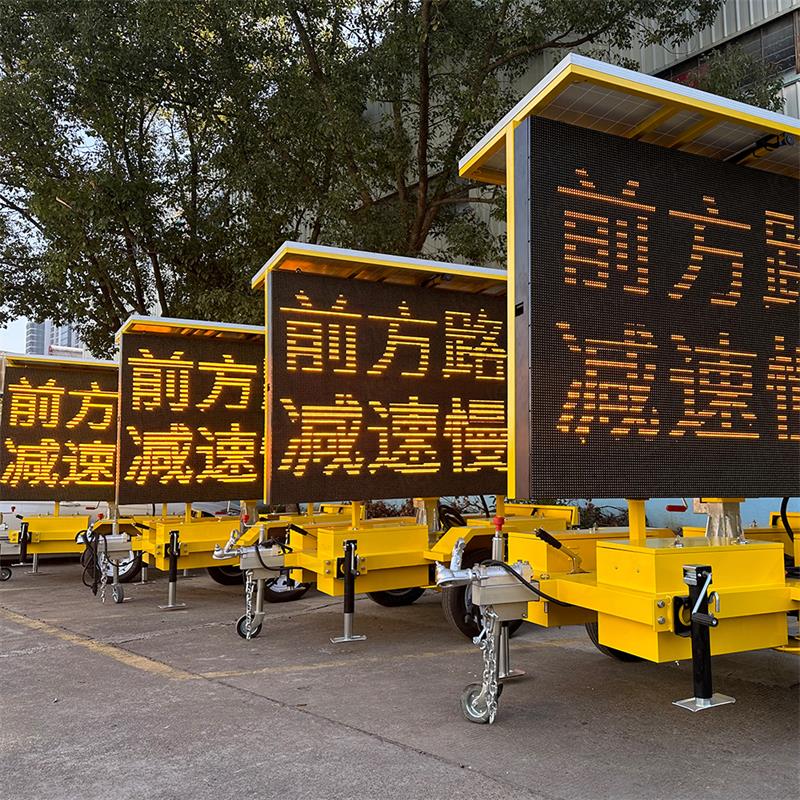

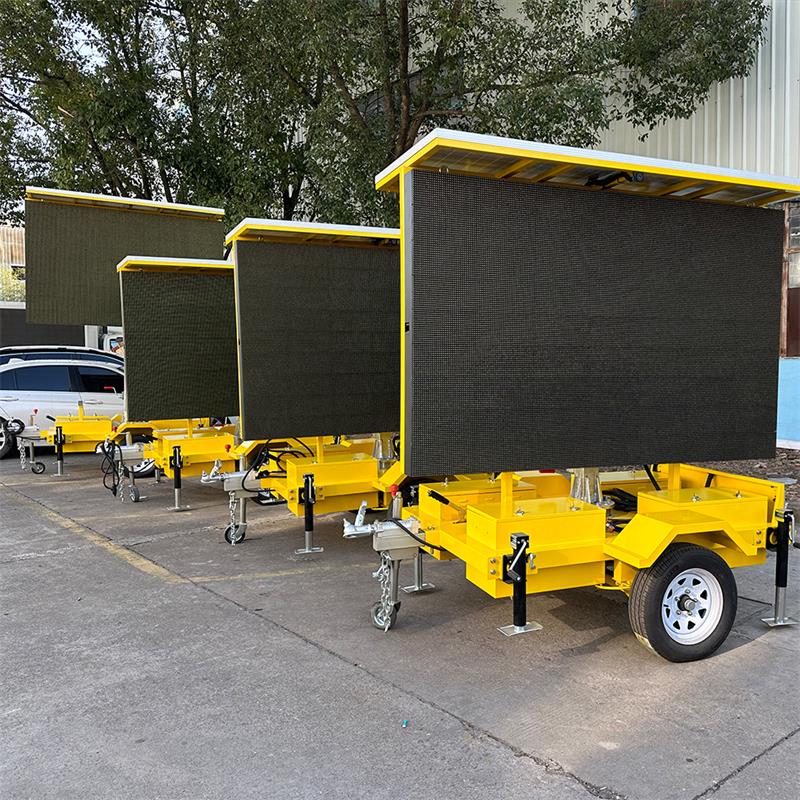

VMS300 P16 solar led trailer :equipped with solar panels and converters and 9600AH battery, can achieve 365 days a year continuous power supply LED screen.
VMS300 P16 solar led trailer can be used in various situations, including but not limited to the following aspects:
It can be used for temporary traffic guidance and information release in busy traffic areas, such as road construction, traffic accidents, etc., to help direct traffic and release relevant information.
It can be used during urban events, festivals and celebrations to provide transportation organization and information release services to help guide tourists and citizens to event venues.
It can be used to promote municipal construction, city image promotion, etc., to publicize and release information for municipal work.
It can be used as a mobile advertising display screen for commercial advertising, such as providing advertising display around shopping malls, event sites and other places.
When an emergency occurs, it can be used to issue emergency notifications and guidance information to help citizens and vehicles obtain relevant information in a timely manner and take corresponding measures.
In general,VMS300 P16 solar led trailer can be used in various occasions that require traffic guidance, information release and advertising, and have certain flexibility and versatility.
