9*5m led screen Mobile led container for sporting events
| Specification | |||
| Whole trailer | |||
| Brand | CIMC | Dimension | 12500mm×2550 mm×4500 mm |
| Total mass | 10000KG | ||
| Hydraulic control system | |||
| Hydraulic Lifting | Three-level cylinder, stroke 7000mm, bearing 12T | hydraulic rotation | 360 degree |
| Telescopic cylinder | 4 cylinders live outside the telescopic 800mm | ||
| Hydraulic support feet | 4 pcs | ||
| Silent generator group | |||
| Generator set | 50KW，Perkins | dimension | 2200*900*1350mm |
| Frequency: | 60HZ | Voltage: | 415V/3 phase |
| Generator: | Stanford PI144E (full copper coil, brushless self-excitation, including automatic pressure regulating plate) | LCD controller: | Zhongzhi HGM6110 |
| Micro break: | LS, relay: Siemens, indicator light + wiring terminal + key switch + emergency stop: Shanghai Youbang Group | Maintenance-free DF battery | CAMEL |
| LED Screen | |||
| Dimension | 9000mm(W)*5000mm(H) | Module Size | 250mm(W)*250mm(H) |
| Light brand | Nationstar light | Dot Pitch | 4.81mm |
| Brightness | ≥5500cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 700w/㎡ |
| Power Supply | MEANWELL | DRIVE IC | 2503 |
| Receiving card | Nova MRV316 | Fresh rate | 3840 |
| Cabinet material | Die-casting aluminum | Cabinet weight | aluminum 30kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 43222 Dots/㎡ |
| Module resolution | 52*52Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| Power parameter | |||
| Input Voltage | Three phases five wires 380V | Output Voltage | 220V |
| Current | 100A | Average power consumption | 0.3kwh/㎡ |
| Multimedia Control System | |||
| Video processor | NOVA | model | VX600 |
| Remote control | Yutu | Wind speed sensor | 1pc |
| Sound System | |||
| Speaker | 2 sets of Tasso 15'' full-range loudspeaker box | Power amplifier | TASSO |

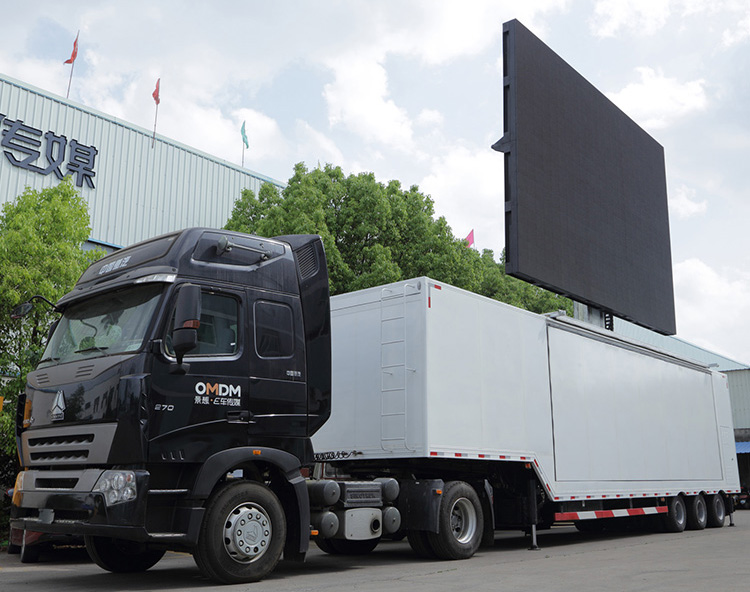

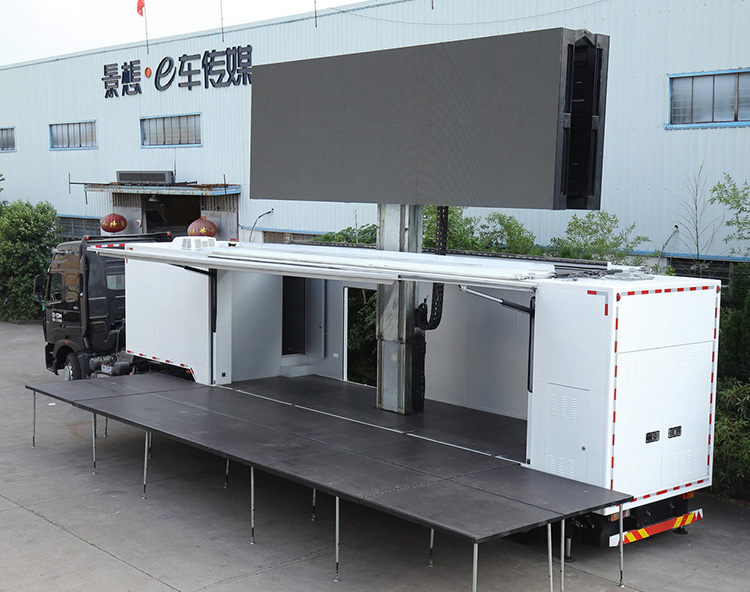

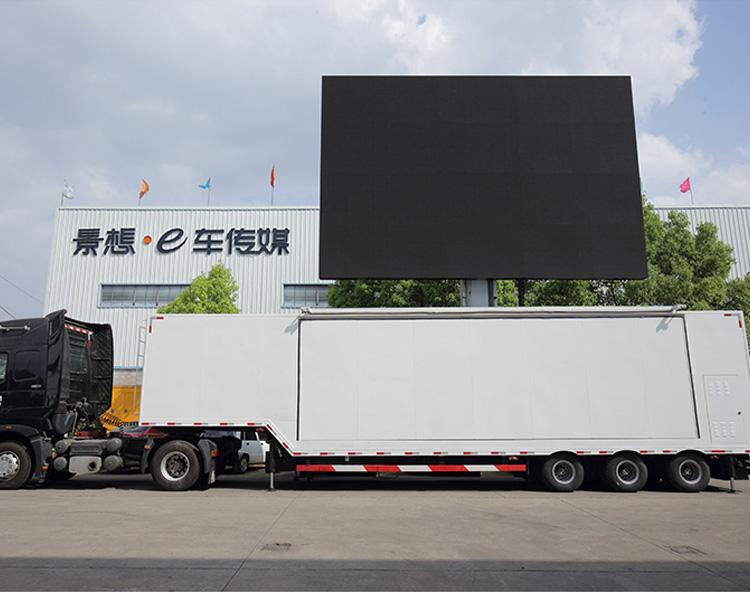

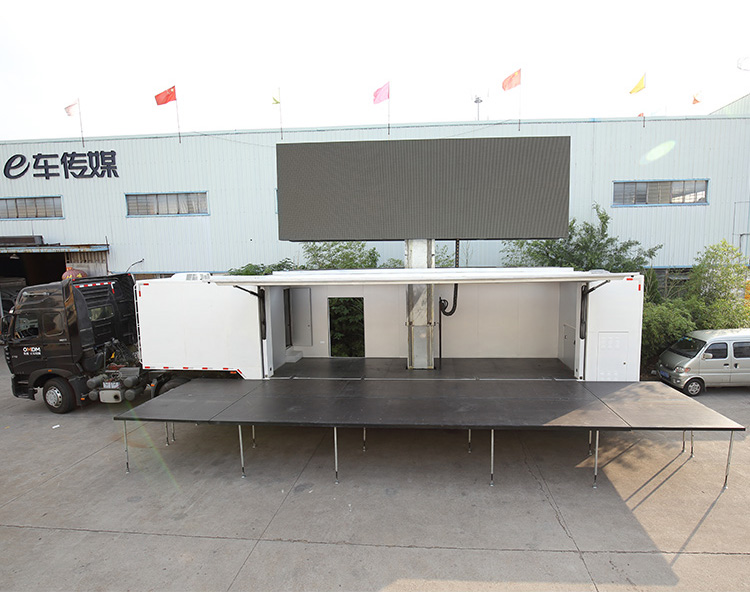

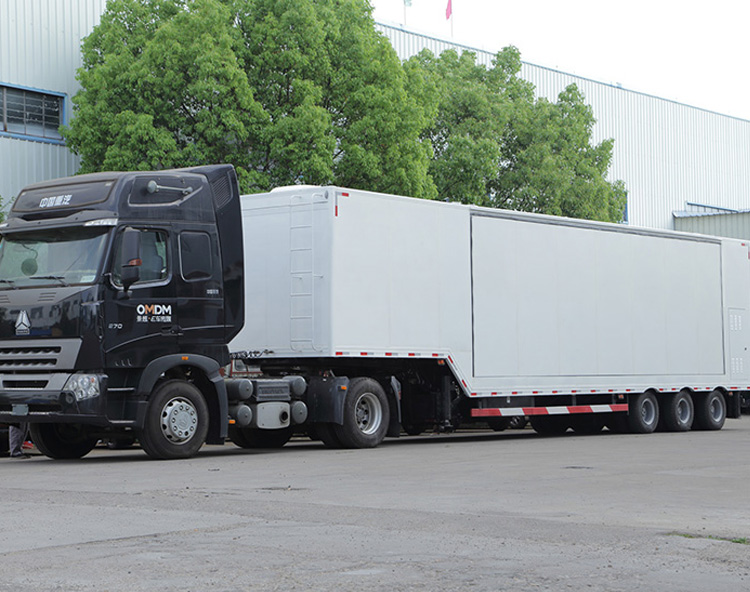

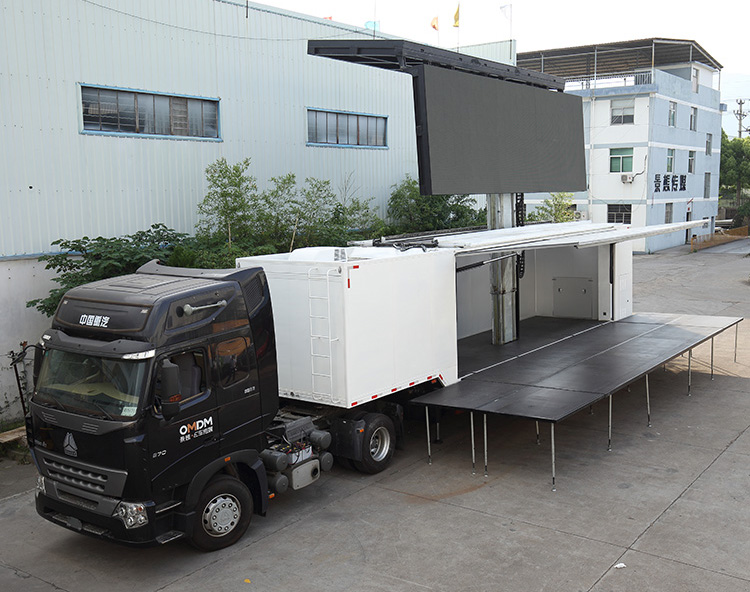

The 40ft LED CONTAINER-FOTON AUMAN（Model：MOBILED LED SEMI TRAILER-45S） customized by Jingchuan is modified and produced with a semi-trailer chassis. The stage vehicle is equipped with a large outdoor full-color LED screen with a screen area of 40 square meters. It is suitable for large-scale events and TV stations as live broadcasts and broadcasts, can realize remote live broadcast and rebroadcast. The large screen can be rotated 360 degrees, flipped and folded into a double-sided screen and placed in the cabinet. It can reach a height of 11 meters after being raised. With an automatic folding stage, the area can reach more than 20 square meters, which can be small show.
Tolerance is great, mobile is invincible
40ft LED CONTAINER has Specially selected card power and space advantages, all stage expressions are pre-installed in the car area, and all kinds of exhibitions can be completed by simple operations during activities at designated locations: large-scale terminal promotions, large-scale art tours, and mobile Exhibitions, mobile theaters, etc., ignoring time and location restrictions, make everything possible.
Cutting-edge integration and efficient execution
40ft LED CONTAINER has new cutting-edge integrated design concept is no longer satisfied with a single media playback or simple installation. It optimizes the internal space through modification according to the characteristics of the activity, without the time-consuming and labor-consuming defects of traditional stage construction and disassembly. More effective and faster. It can also be closely integrated with other marketing and communication methods to achieve functional derivation, such as on-site studio trucks with professional TV acquisition and editing equipment, mobile carnivals equipped with professional entertainment equipment, mobile KTV, or can be decorated and modified into brand theme stores according to brand customer needs.
Exclusive customization of what you want
40ft LED CONTAINER built by Jingchuan can be customized according to customer needs. There are also E-C30 container stage vehicles of the same type (screen area of 30 square meters) and E-C60 container stage vehicles (screen area of 60 square meters) are available select.
