6m LED MOBILE TRUCK-Nanjing YueJin

Short Description:

Model:ESH2800

No matter where it is located and how challenging the environment is, it can always do its job in a unique way.JCT 6m LED MOBILE TRUCK-Nanjing YueJin(Model:E-SH2800)has become a new advertising carrier integrating advertising, information release and TV broadcast in the eyes of the public.


Product Detail

Product Tags

No matter where it is located and how challenging the environment is, it can always do its job in a unique way.JCT 6m LED MOBILE TRUCK-Nanjing YueJin(Model:E-SH2800)has become a new advertising carrier integrating advertising, information release and TV broadcast in the eyes of the public.

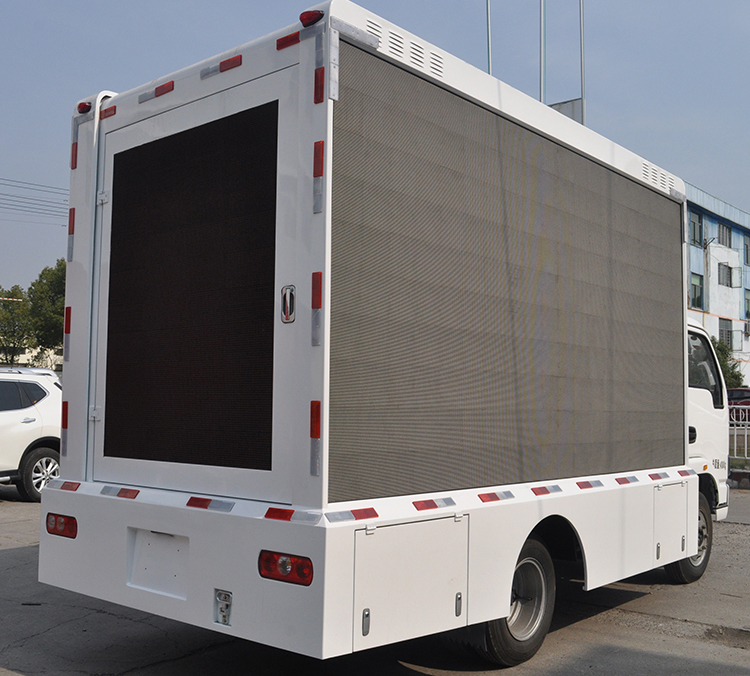

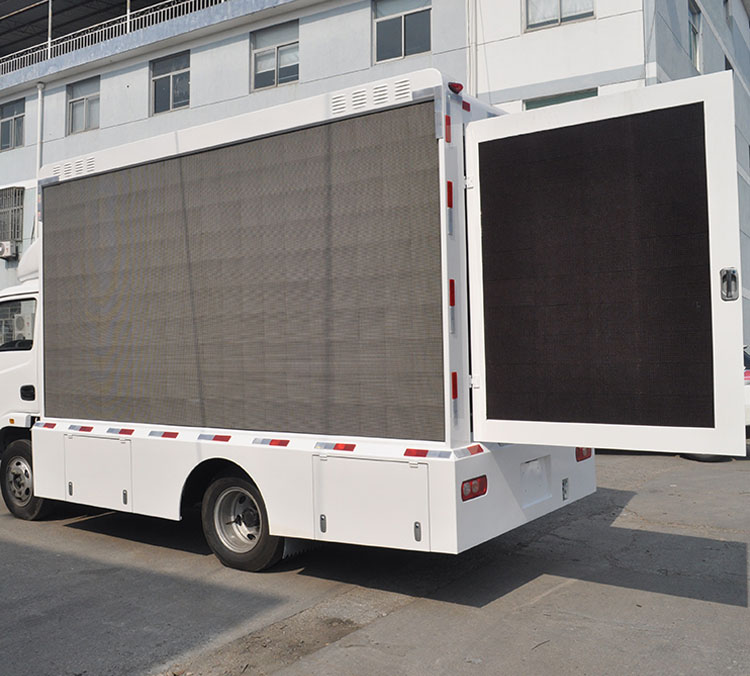

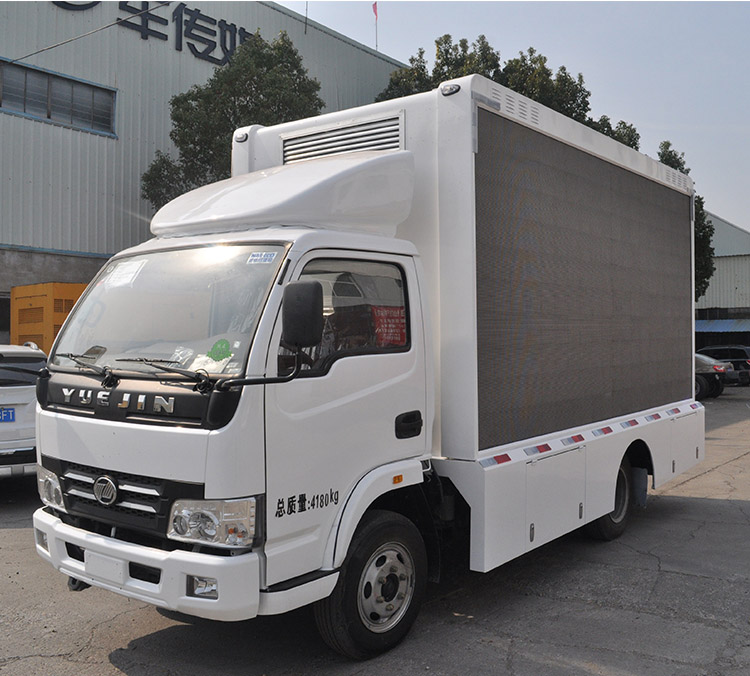

JCT E-SH2800 LED MOBILE TRUCK adopts the special chassis of Nanjing Yuejin. Overall dimensions of the truck :5650mm×2120mm×3185mm, total weight of the truck: 3380KG. Jingchuan E-SH2800 LED MOBILE TRUCK design allows advertisements to follow the target audience's footsteps and lock the terminal according to the characteristics of the product, and enter the subway network, railway station, tourist attractions, airports, shopping malls, business centers, sports venues, communities and all other terminals where commercial value can be obtained. No matter where it's located and how challenging the environment is, it can always do its job in unique way. E-SH2800 LED MOBILE TRUCK has become a new advertising communication carrier in the eyes of the public, which integrates advertising, information release and live TV broadcast.

9
5

Parameter specification (single or double side screen is optional)

1. Overall size: 5650mm×2120mm×3185mm

2. LED outdoor full-color display (P6) size on the left and right sides: 3520x1920mm

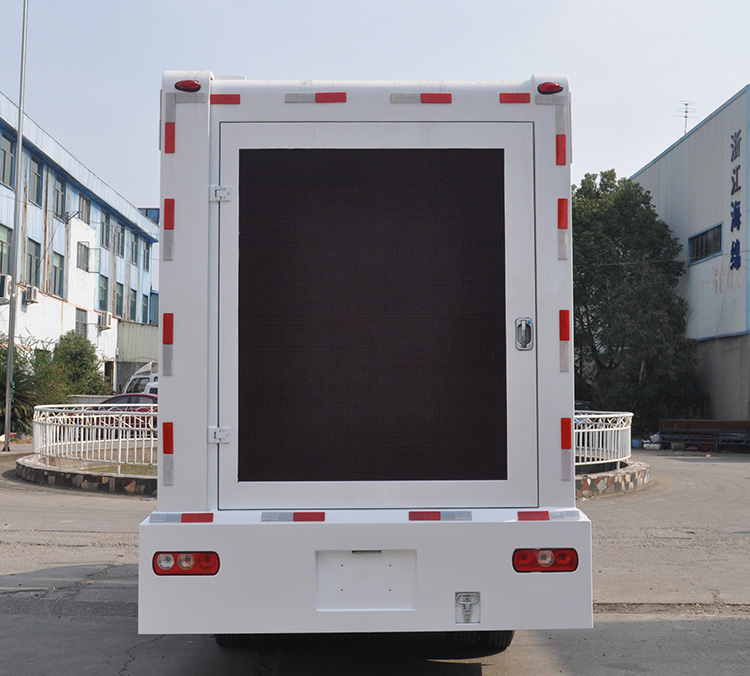

3. Rear outdoor single red display screen (P10) size: 1280x1600mm

4. Equipped with digital roller system, it can play 3-6 static advertisement images in a loop.

5. Power consumption (average consumption) : 0.3 / m/H, total average consumption.

6. Equipped with multimedia playback system, it supports usb flash disk and mainstream video format, and can be played synchronously by mobile phone.

7. Equipped with ultra-quiet generator set, power 8KW.

8. Input voltage 220V, starting current 25A.

Model E-SH2800(6m LED MOBILE TRUCK

Chassis

Brand Nanjing yuejin External Dimension 5650mm×2120mm×3185mm
Power H100-28 yangzi 485 2.5L Emission Standard EuroⅤ/Euro Ⅵ
Wheel base 2800mm Seat Single row 2seats

Silent Generator Group

Power 8KW Number ofcylinders Water-cooled inline 4-cylinder

LED Screen

Screen Size Left side:3840×1920mmRight side:3840×1920mm Dot Pitch P3/P4/P5/P6
Lifespan 100,000hours

LED bar screen

Rear led Screen Size 1280×1600mm Dot Pitch 10 mm
Lifespan 100,000hours Brightness ≥5000cd/m²
Max PowerConsumption 400W/㎡ Average PowerConsumption 280W/㎡

Power parameter

Input Voltage

220V

Output Voltage

220V

Current

20A

Average power consumption

0.5kwh/㎡

Multimedia Control System

Monitor Support 8-way signal input
Media player with various kinds of common used video connector, be available for PC, camera and etc.

Sound

120W

Speaker

200W
