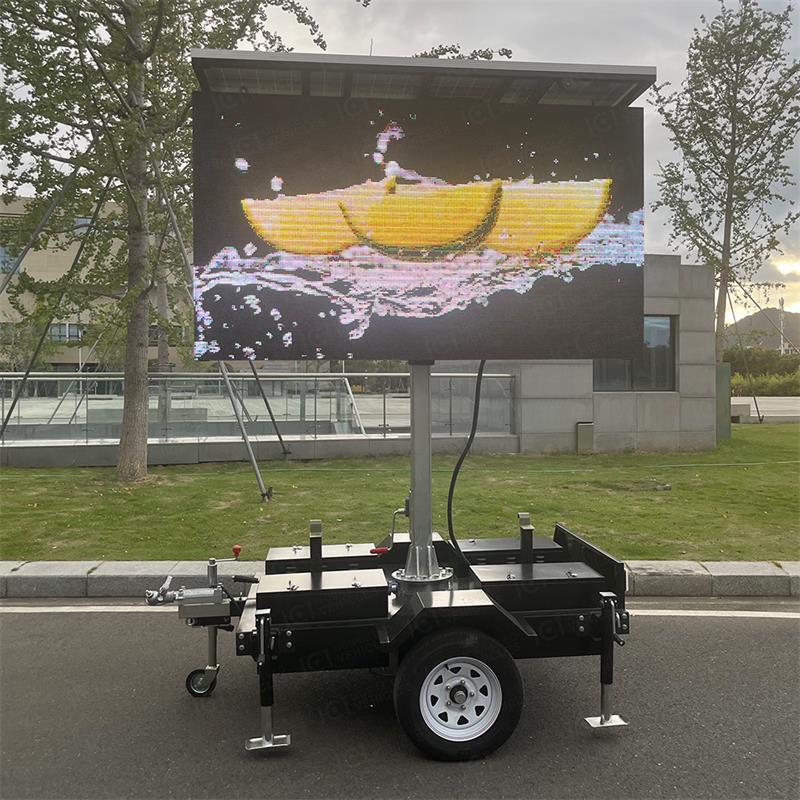

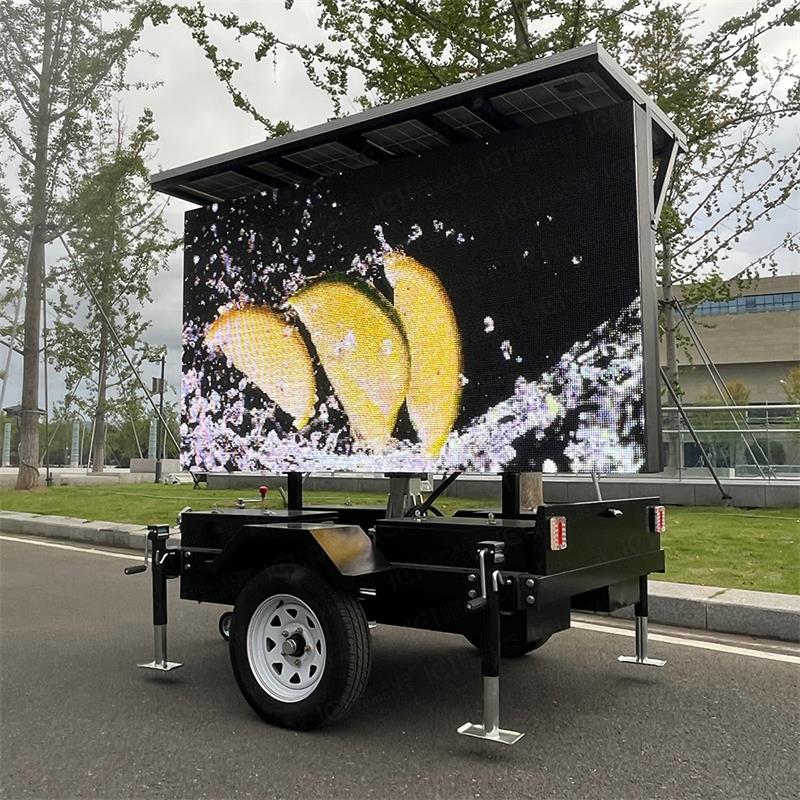

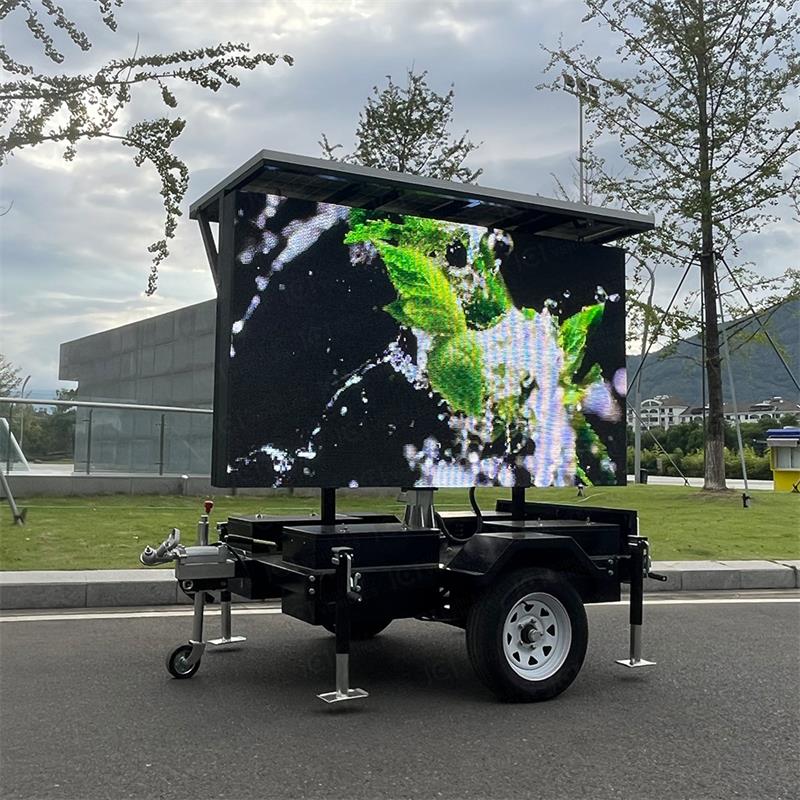

3㎡ Energy saving led screen solar trailer for 24/7
3m2 solar mobile led trailer（Model：ST3 Solar） adopts integrates solar energy, LED outdoor full-color screen and mobile advertising trailer. It breaks through the previous limitation that the LED mobile trailer needs to find an external power source or carry a generator for power supply, and directly adopts solar independent power supply mode. High performance, uninterrupted power supply, more conducive to environmental protection, comply with new energy saving-energy policies. It is safe and reliable without much maintenance.
2m2 solar mobile led trailer adopts innovative technology, and it is widely used in traffic management, municipal, construction engineering, mining, store advertising, large conferences, sports events, announcements of upcoming events and so on.

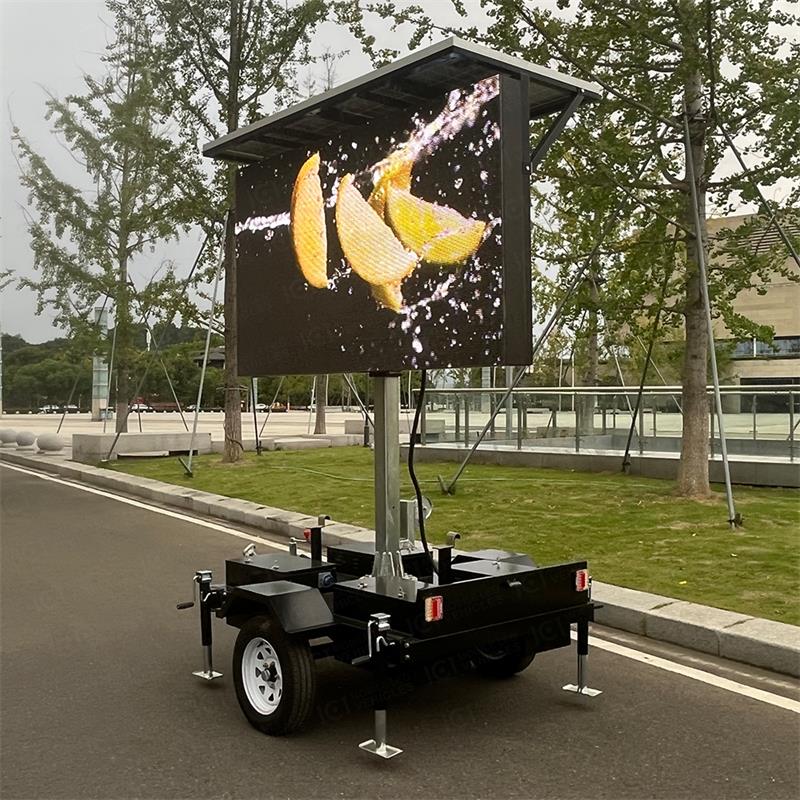

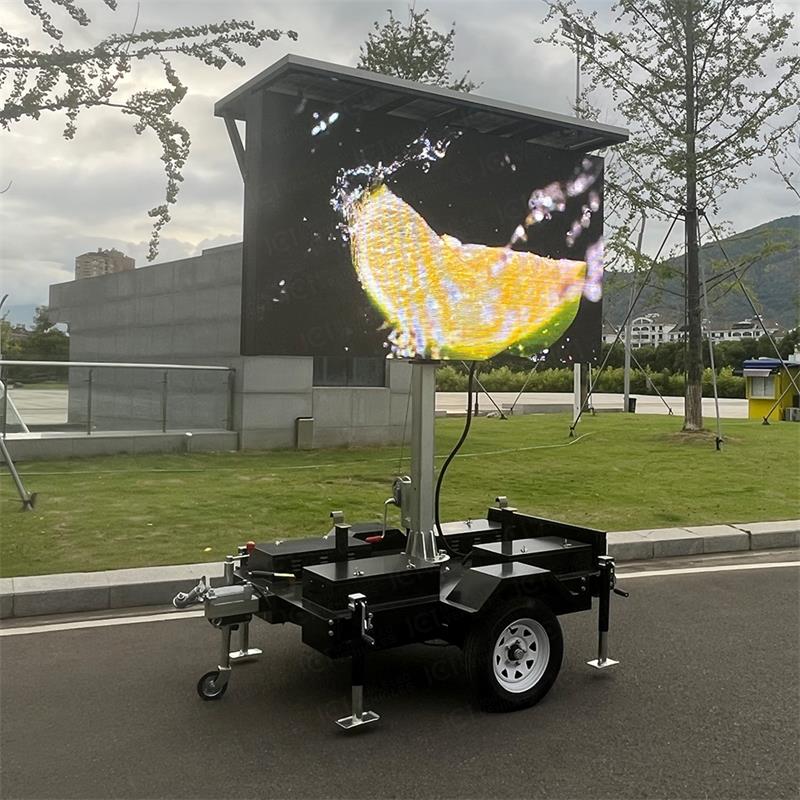

360 degree rotatable LED screen
It integrates a new system of support, hydraulic lifting and rotation functions. The rotating guide column independently developed by Jingchuan Company can realize LED visual range 360 ° without dead angles, and further enhance communication effect. It is especially suitable for crowded occasions such as downtowns, gatherings, and outdoor sports events.
Fashionable appearance, full of sense of technology
The style of the product line has been changed. The traditional car body adopts the design of no frame with clear lines and sharp edges and corners, which fully reflects the sense of modernity and technology. It is particularly suitable for activities such as traffic control, performance, fashion shows, car promotion, etc. It is the best choice for the promotion of fashion trends, cutting-edge technologies and products.
Imported hydraulic system, security and stability
The imported hydraulic system is safe and stable, and the travel height can reach 1000mm; the LED display can be adjusted according to environmental requirements to ensure that the audience can get the best viewing angle.
Unique traction bar design
Equipped with inertial device and hand brake. It can be towed by a car to a crowded place for broadcasting and publicity. The support leg is a manual mechanical structure, which is easy and fast to operate.
Solar battery power supply
Independent power supply, high performance, uninterrupted power supply, not limited by geographical location, safe and reliable, no pollution, no noise, environmental protection and beautiful, without too much maintenance.
| Specification | ||||
| Trailer appearance | ||||
| Trailer size | 2382×1800×2074mm | Supporting leg | 440~700 load 1.5 tons | 4 PCS |
| Total weight | 629KG | Tre | 165/70R13 | |
| Max speed | 120Km/h | Connector | 50mm ball head, 4 hole Australian impact connector | |
| Breaking | Hand brake | Axle | Single axle | |
| LED Screen | ||||
| Dimension | 2240mm*1280mm | Module Size | 320mm(W)*160mm(H) | |
| light brand | Hongzheng Gold wire light | Dot Pitch | 10/8/6.6mm | |
| Brightness | ≥5500cd/㎡ | Lifespan | 100,000hours | |
| Average Power Consumption | 30w/㎡ | Max Power Consumption | 100w/㎡ | |
| Drive IC | ICN2069 | Fresh rate | 3840 | |
| Power Supply | HuaYun | Receiving card | NOVA MRV416 | |
| Cabinet size | 2240*1280mm | system support | Windows XP,WIN 7， | |
| Cabinet material | Iron | Cabinet weight | Iron 50kg/m2 | |

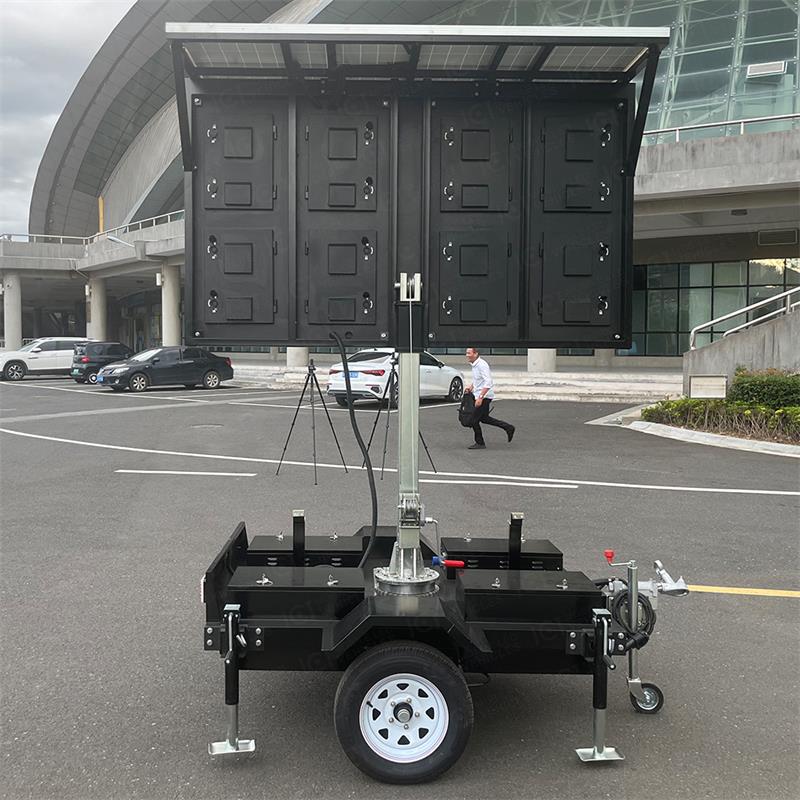

| Maintenance mode | Rear service | Pixel structure | 1R1G1B | |
| LED packaging method | HZ-4535RGB4MEX-M00 | Operating Voltage | DC 4.2、3.8V | |
| Module power | 5W | scanning method | 1/8 | |
| HUB | HUB75 | Pixel density | 15625 Dots/㎡ | |
| Module resolution | 40*20Dots | Frame rate/ Grayscale, color | 60Hz,13bit | |
| Viewing angle, screen flatness, module clearance | H：100°V：100°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ | |
| Power parameter (external prower supply) | ||||
| Input voltage | Single phase 220V | Output voltage | 24V | |
| Inrush current | 10A | Average power consumption | 50wh/㎡ | |
| Control system | ||||
| Player | Nova TB30-4G | receiving card | Nova-MRV316 | |
| Luminance sensor | NOVA NS060 | |||

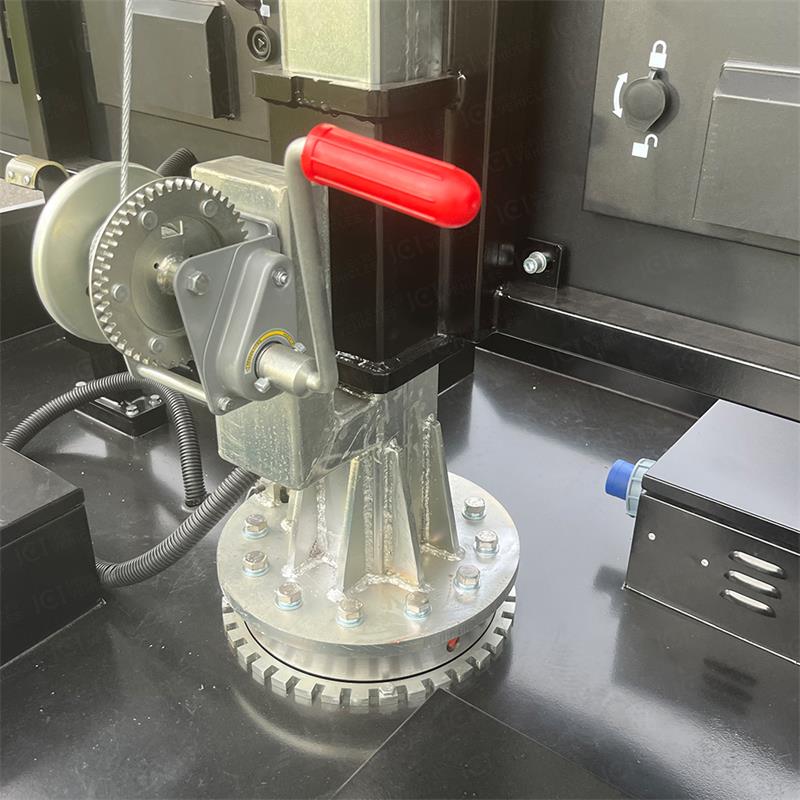

| Hydraulic lifting | ||||
| Hydraulic lifting: | 1000mm | Manual rotation | 330 degrees | |

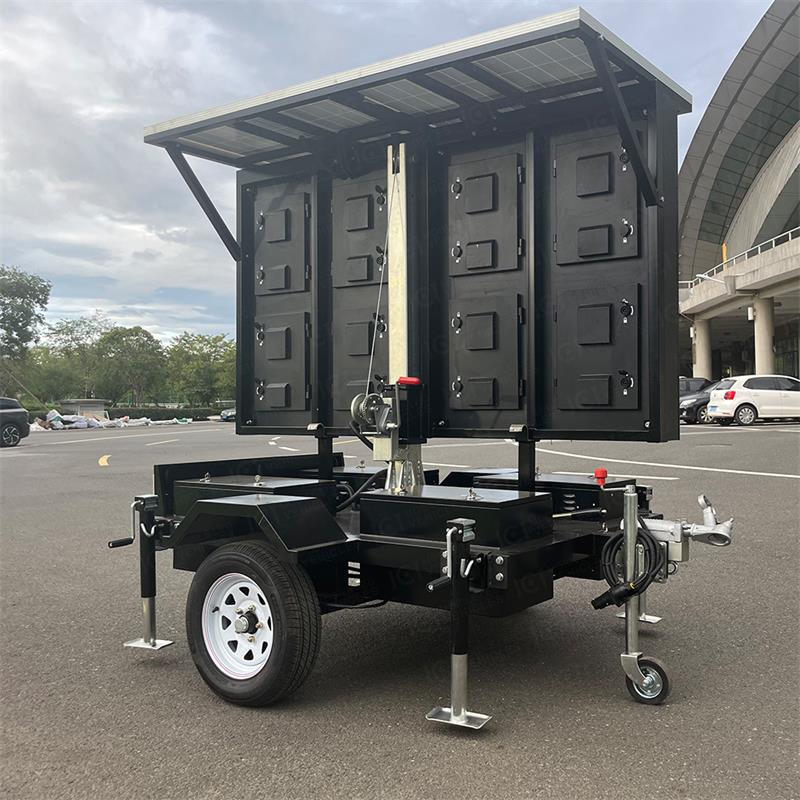

| Solar panel | ||||
| Dimension | 1000mm*2000 mm*1pcs | Power | 410W*1=410W | |
| Solar controller（Tracer3210AN/Tracer4210AN） | ||||
| input voltage | 9-36V | Output voltage | 24V | |
| Rated charging power | 780W/24V | Maximum power of photovoltaic array | 1170W/24V | |
| The battery | ||||
| Dimension | 510×210x200mm | Battery specification | 12V200AH*4Pcs | 9.6 KWH |
| Advantages: | ||||
| 1, can lift 1000MM, can rotate 360 degrees. | ||||
| 2, equipped with solar panels and converters and 9600AH battery, can achieve 365 days a year continuous power supply LED screen. | ||||
| 3, with brake device! | ||||
| 4, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. | ||||
| 5, with 7 core signal connection head! | ||||
| 6, with tow hook and telescopic rod! | ||||
| 7. two tire fenders | ||||
| 8, 10mm safety chain, 80 grade rated ring | ||||
| 9, reflector, 2 white front, 4 yellow sides, 2 red tail | ||||
| 10, the whole vehicle galvanized process | ||||
| 11, brightness control card, automatically adjust brightness. | ||||
| 12，VMS can be controlled wirelessly or wirelessly! | ||||
| 13. Users can remotely control LED SIGN by sending SMS messages. | ||||
| 14, equipped with GPS module, can remotely monitor the position of VMS. | ||||
