Factory Supply Truck Display - Display Truck – JCT Detail:

JCT 22㎡ led billboard truck- ISUZU (Model:E-YZD22 created by Jingchuan is an advertising terminal that can move freely, timely change information, communication strategies and locations. It is a new type of advertising communication carrier that integrates advertising, information release and live broadcast.

The led billboard truck is equipped with a new system with integrated support, hydraulic lifting and rotating functions. The LED display can be rotated 360°, further enhancing the visual effect. It is especially suitable for applications in busy places such as downtowns, assemblies, and outdoor sports events.

360°rotatable and foldable LED screen

22㎡ led billboard truck is equipped with a brand new system with integrated support, hydraulic lifting and rotating functions. The LED display can be rotated 360°, further enhancing the visual effect. It is especially suitable for applications in busy places such as downtowns, assemblies, and outdoor sports events. The operation is convenient and quick, and it can resist 8 level winds when the screen is raised.

Integration of media module

22㎡ led billboard truck – ISUZU introduces the concept of media module integration, integrating the LED screen, support lifting system, media control, and electrical control system into a single whole. It realizes modular installation, customers can choose to purchase an independent truck body, and install it after buy a truck chassis.

Exclusive customization for customers

Breaking the limitations of traditional truck equipment size selection, customers can realize independent selection and customization in the choice of generator model, LED screen size and related configuration.

22㎡ led billboard truck – ISUZU parameter specification (standard):

1. Overall dimension: 8170mm 2220mm 3340mm

2. LED outdoor full-color display screen (10) size: 5760x3840mm

3. Power consumption (average consumption) : 0.5 / m/H, total average consumption.

4. Equipped with lifting and hydraulic support system, lifting stroke is 2000mm; Equipped with 360 degree rotation system.

5. Equipped with front-end video processing system for live broadcast or rebroadcast and matches. There are 8 channels, to switch screens.

6. The intelligent timing power-on system can turn on or off the LED screen regularly.

7. Equipped with multimedia playback system, support usb flash drive and mainstream video format.

8. Equipped with ultra-quiet generator set, power is 24KW.

9. Input voltage is 380V, starting current is 40A.

Model

E-YZD22(22㎡ led billboard truck – ISUZU

Chassis

Brand Isuzu External Dimension 8370mm×2290mm×3440mm
Power Isuzu Total Weight 10000KG
Emission Standard EuroⅤ/Euro Ⅵ Curb weight 9700KG
Wheel base 4475mm Seat Single row 3seats

Hydraulic Lifting and Supporting System

Hydraulic  LiftingSystem Lifting Range 2000mm,bearing 5T
Hydraulic Rotating System Screen can rotate 360degrees
Wing-against Level Against Level 8wind after screen lift up 2000mm
Supporting leg Stretch distance 300mm

Silent Generator Group

Power 24KW
Number ofcylinders Water-cooled inline 4-cylinder

LED Screen

Screen Size 5760×3840mm Dot Pitch P3/P4/P5/P6
Lifespan 100,000hours

Power parameter

Input Voltage

Three-phase five-wire 380V

Output Voltage

220V

Current

40A

Average power consumption

0.5kwh/㎡

Multimedia Control System

Monitor Support 8-way signal input
Media player with various kinds of common used video connector, be available for PC, camera and etc.

Sound

120W

Speaker

200W

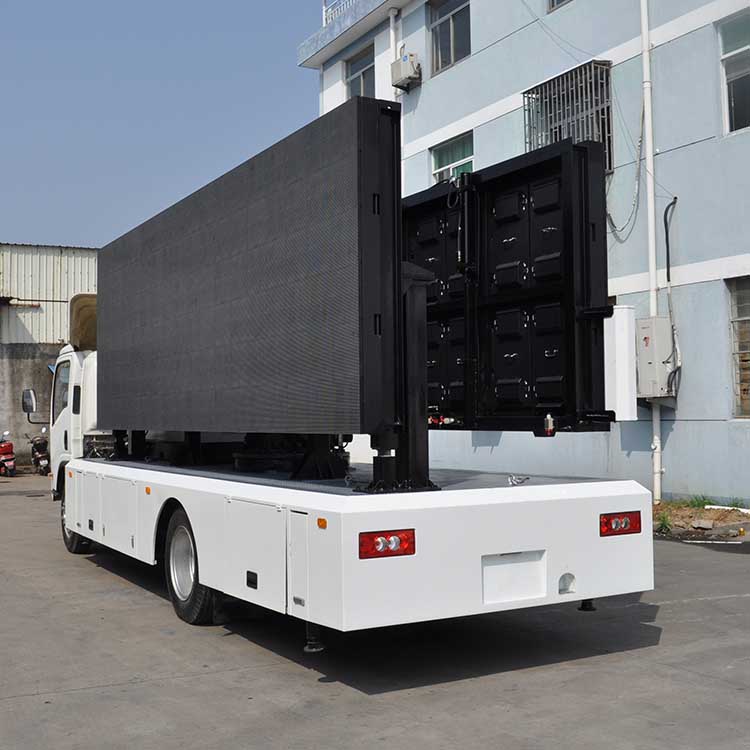

6 (7)

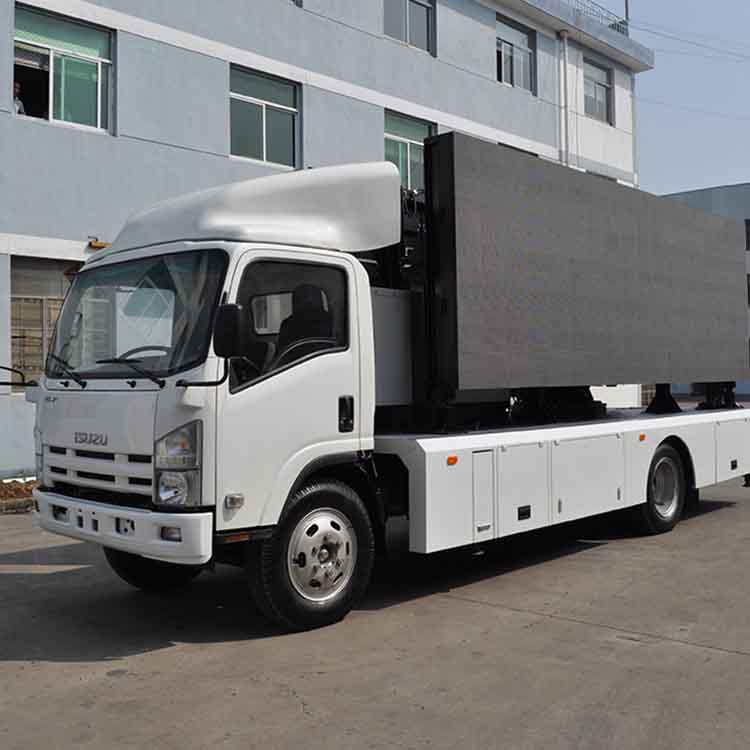

6 (6)


Product detail pictures:

Factory Supply Truck Display - Display Truck – JCT detail pictures

Factory Supply Truck Display - Display Truck – JCT detail pictures

Factory Supply Truck Display - Display Truck – JCT detail pictures

Factory Supply Truck Display - Display Truck – JCT detail pictures
