4㎡ mobile led trailer for product promotion

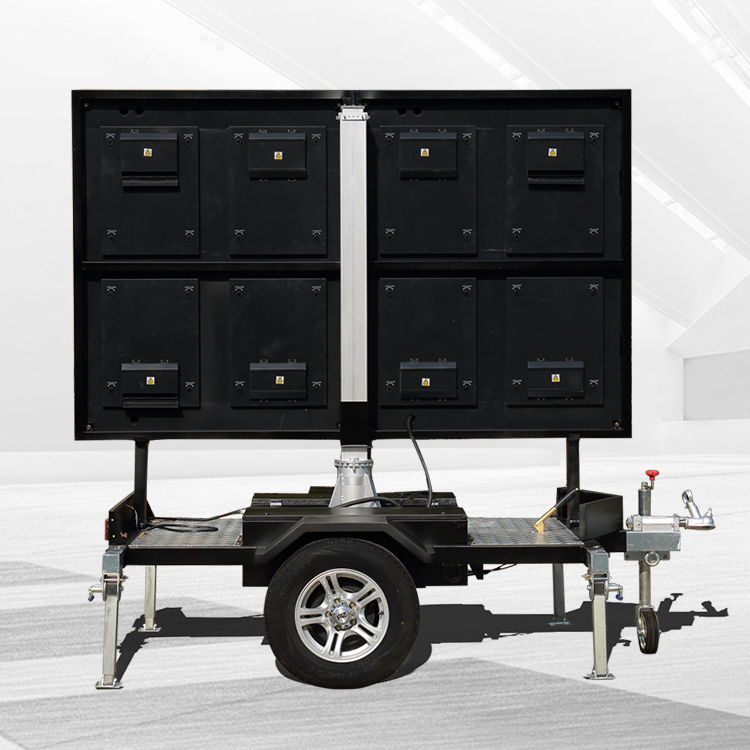

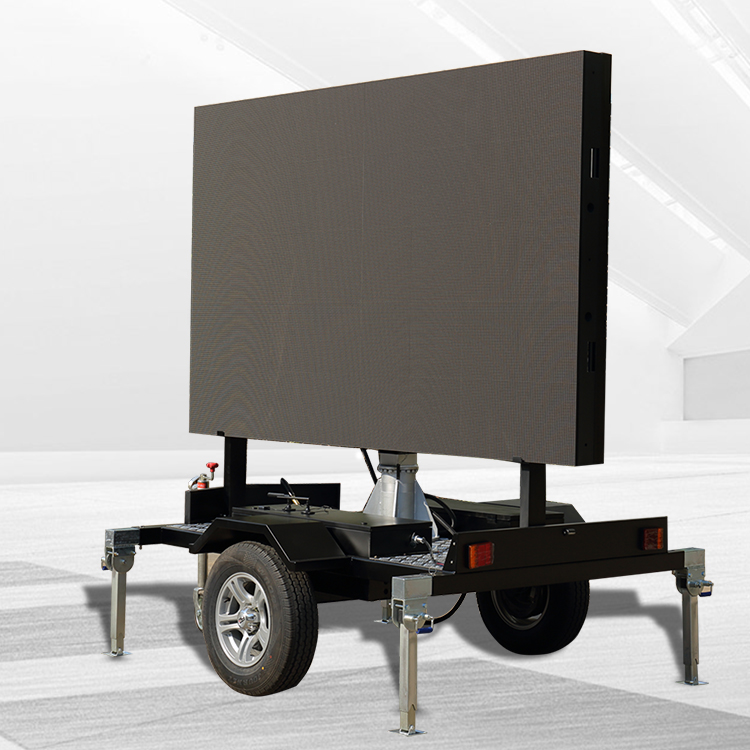

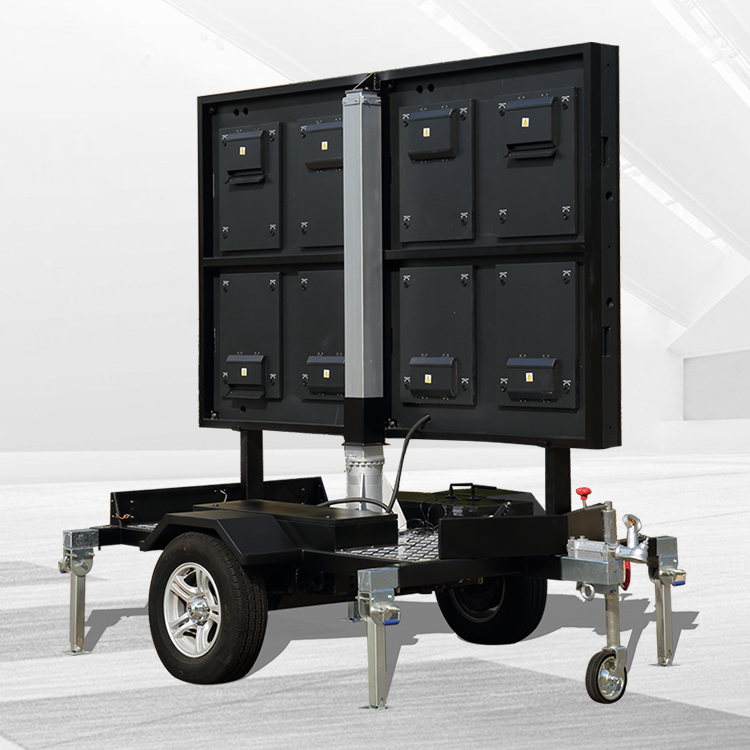

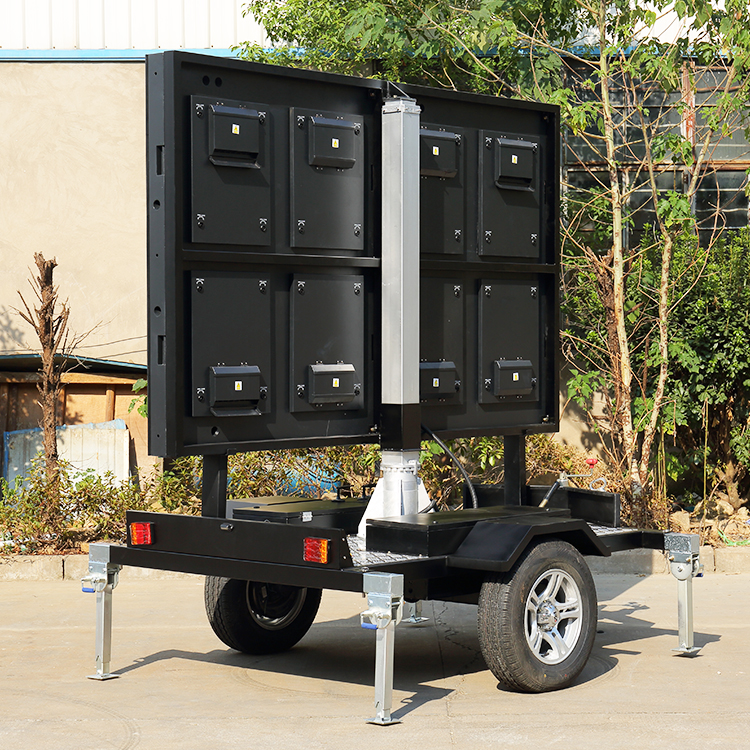

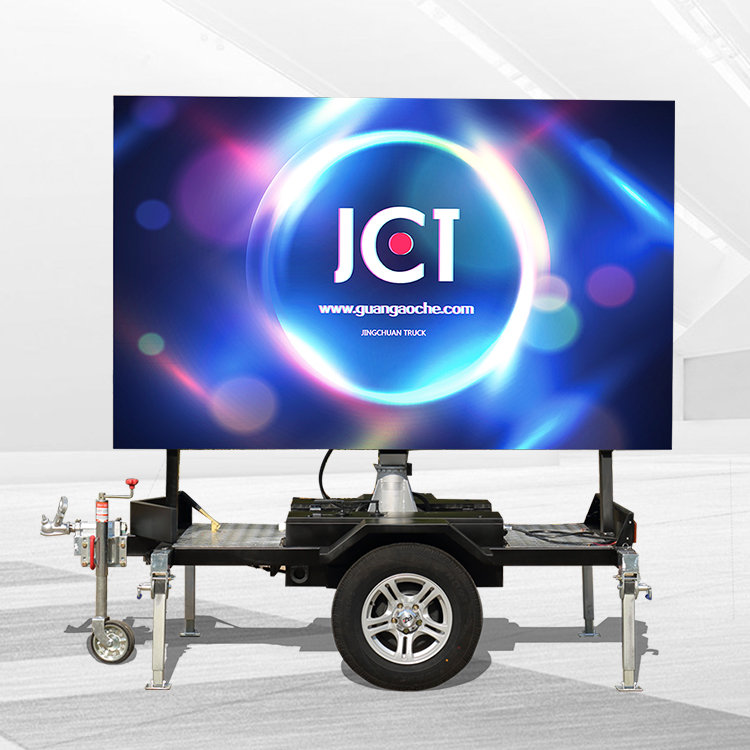

Jingchuan 4㎡ mobile LED trailer（Model：E-F4） is called "sparrows is small, but has all five parts", and is called "BMW mini" in jingchuan trailer series.The overall size of the 4㎡mobile LED advertising trailer is only 2914mm*1800mm*2260mm, less than 5 square meters can be used to park an E-F4, which does not affect the road traffic and saves the cost of site rental for some crowded downtown, square and other occasions.At the same time, the product is equipped with support, hydraulic lifting, rotating and other systems, complete functions;The screen size is 2560mm*1600mm, and the outdoor full-color screen is equipped with ultra-high definition, which can still bring people the best visual picture experience.
| Specification | |||||
| Trailer appearance | |||||
| Trailer size | 2700×1800×2600mm | LED screen size: | 2560*1600MM | ||
| torsion shaft | 1 ton 5-114.3,electric brake | 1 pce | Tire | 185R14C 5-114.3 | 2 pcs |
| Supporting leg | 440~700 load 1.5 tons | 4 PCS | Connector | 50mm ball head, 4 hole Australian impact connector, wire brake | |
| Max speed | 120Km/h | Axle | Single axle | ||
| Breaking | Hand brake | RIM | SIZE:14*5.5、PCD:5*114.3、CB:84、ET:0 | ||
| LED Screen | |||||
| Dimension | 2560mm*1600mm | Module Size | 320mm(W)*160mm(H) | ||
| Light brand | Kinglight | Dot Pitch | 5/4mm | ||
| Brightness | ≥6500cd/㎡ | Lifespan | 100,000hours | ||
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ | ||
| Power Supply | Meanwell | DRIVE IC | ICN2153 | ||
| Receiving card | Nova MRV316 | Fresh rate | 3840 | ||
| Cabinet material | Iron | Cabinet weight | Iron 50kg | ||
| Maintenance mode | Rear service | Pixel structure | 1R1G1B | ||
| LED packaging method | SMD2727 | Operating Voltage | DC5V | ||
| Module power | 18W | scanning method | 1/8 | ||
| HUB | HUB75 | Pixel density | 40000/62500 Dots/㎡ | ||
| Module resolution | 64*32/80*40Dots | Frame rate/ Grayscale, color | 60Hz,13bit | ||
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ | ||
| system support | Windows XP,WIN 7， | ||||
| Power parameter (external prower supply) | |||||
| Input voltage | Single phase 220V | Output voltage | 220V | ||
| Inrush current | 20A | Average power consumption | 0.3kwh/㎡ | ||
| Multimedia control system | |||||
| Player | Nova TB3-4G | receiving card | Nova-MRV328 | ||
| Luminance sensor | NOVA | ||||
| Hydraulic lifting | |||||
| Hydraulic lifting: | 1000mm | Manual rotation | 330 degrees | ||
360°rotatable screen
4㎡mobile led trailer integration support, and the functions of hydraulic lifting, rotating system, JingChuan company self-developed rotating guide pin can realize LED visual range 360 ° no dead Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.
Fashion appearance,science and technology move feeling
Change product line style, traditional body adopts the design of no frame , clean lines, angular, which fully reflects the sense and modern science and technology.Especially suitable for traffic control, performance, hipster shows, such as electronic car launch, is the activity of fashion trends and cutting-edge technology or product, and other media to promote the best.
Imported hydraulic system, security and stability
Imported hydraulic system security and stability, can travel 1000 mm;Can be adjusted according to the requirements of the environment, LED screen, make sure the audience get the best viewing Angle.
Imported hydraulic system, security and stability
Imported hydraulic system security and stability, can travel 1000 mm;Can be adjusted according to the requirements of the environment, LED screen, make sure the audience get the best viewing Angle.
Unique traction bar design
4㎡mobile led trailer equipped with inertial device and hand brake, using the car can be towed to move, where more people to which broadcast and publicity, where to think of;Choose the mechanical structure of manual support legs, easy and fast operation;
Product technical parameters
1. Overall size: 2914*1800*2260mm, of which 400mm is inertial device, and traction rod: 1000mm;
2. LED outdoor full color screen (P3/P4/P5/P6) size: 2560*1280mm;
3. Lifting system: hydraulic cylinder imported from Italy with a stroke of 1000mm;
4. Equipped with multimedia playback system, supporting 4G, usb flash disk and mainstream video format;
