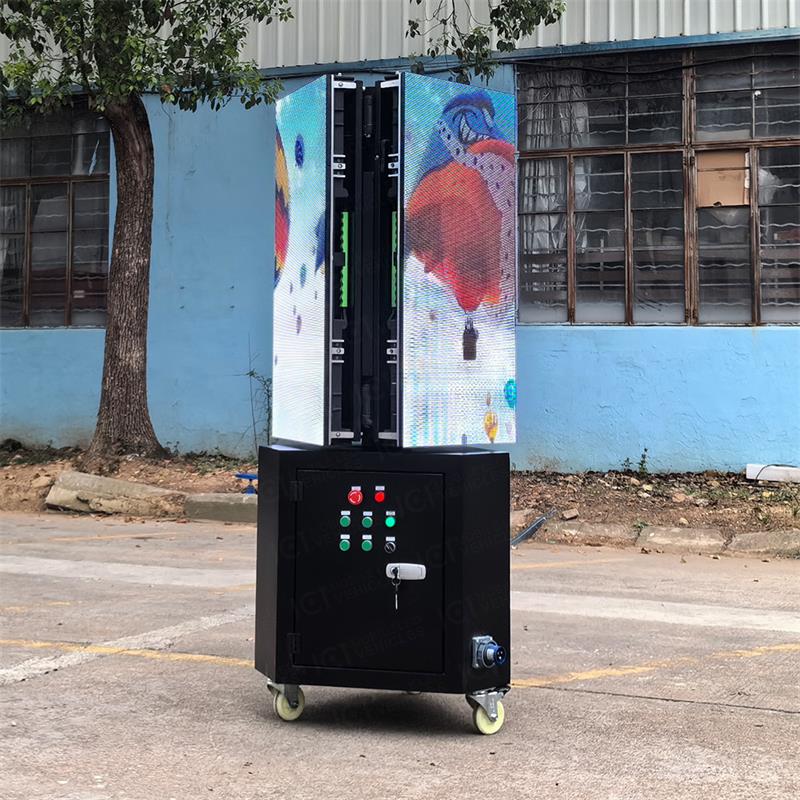

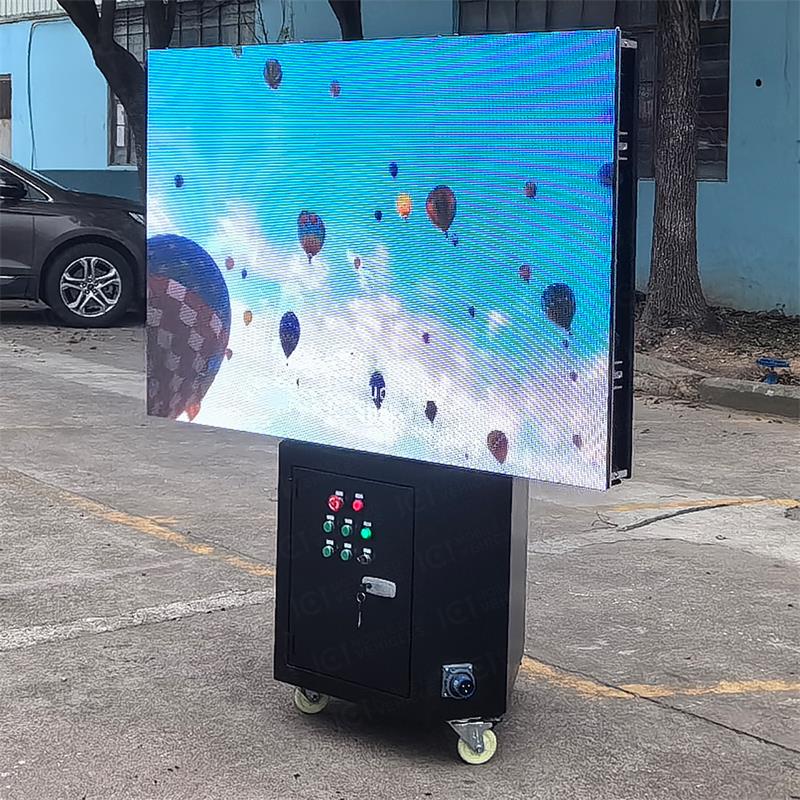

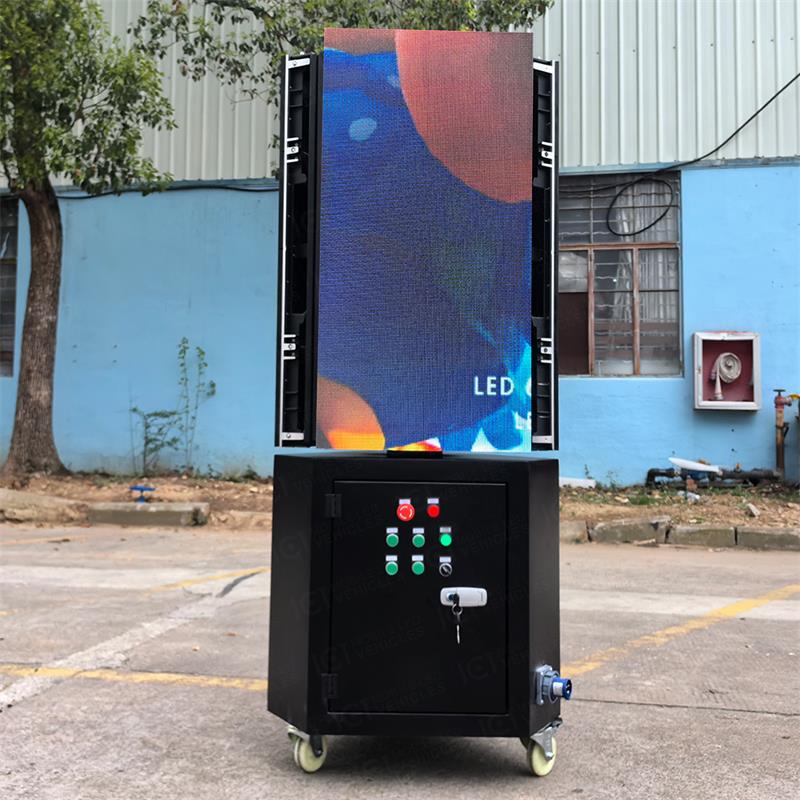

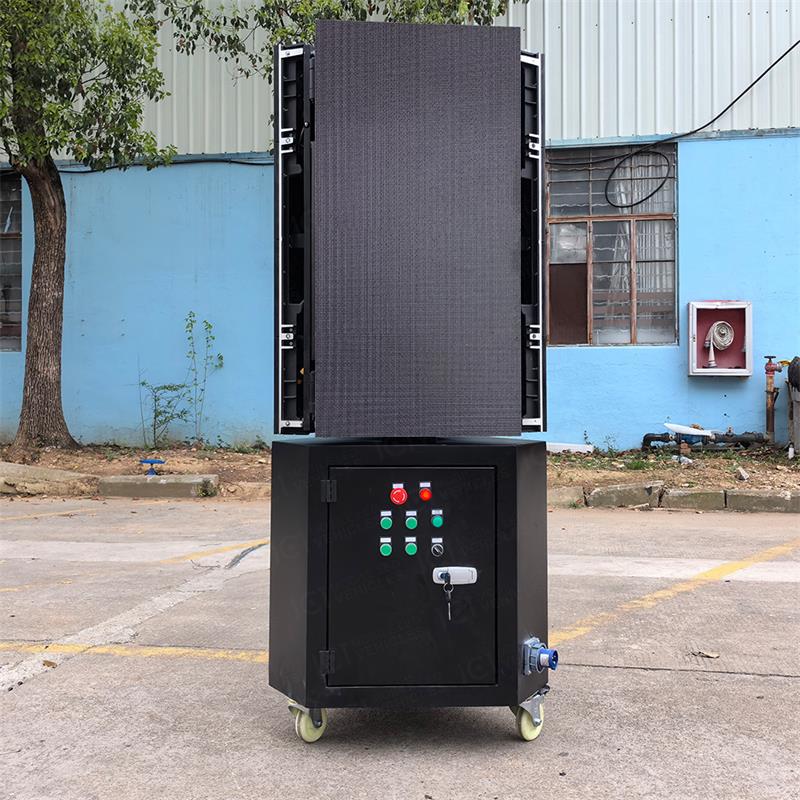

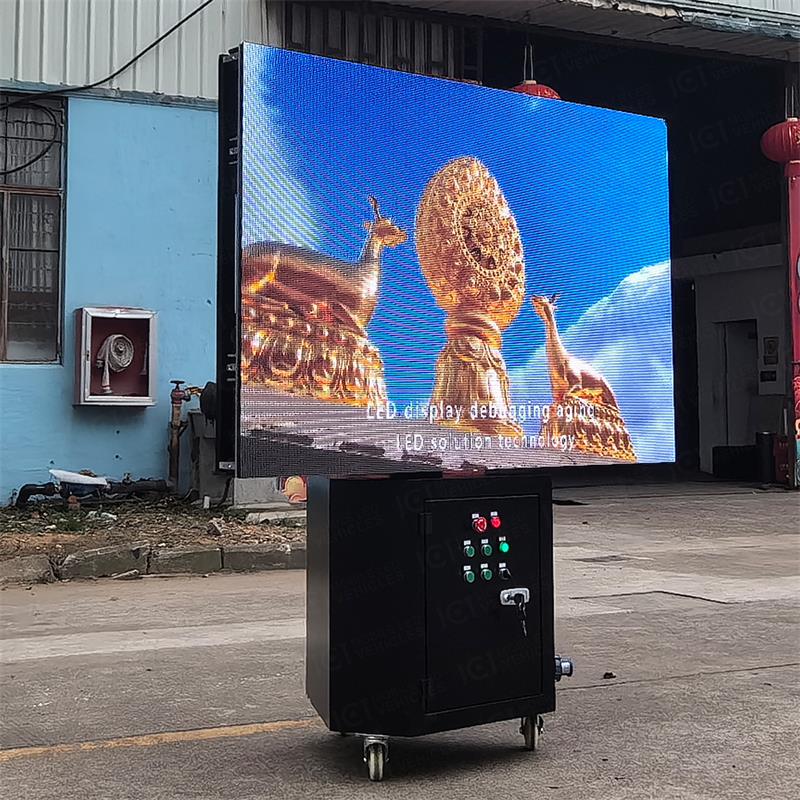

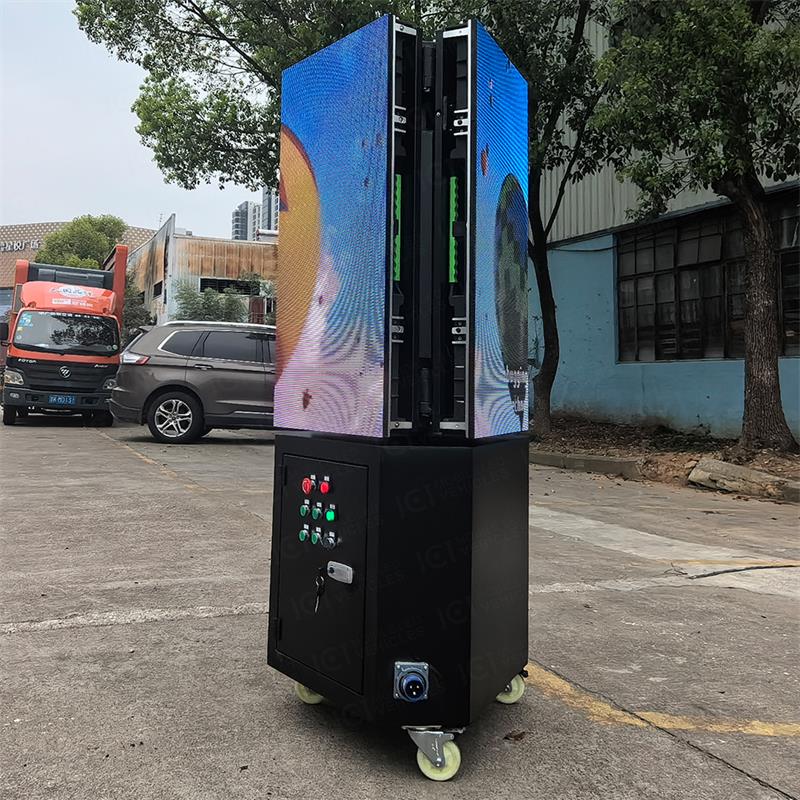

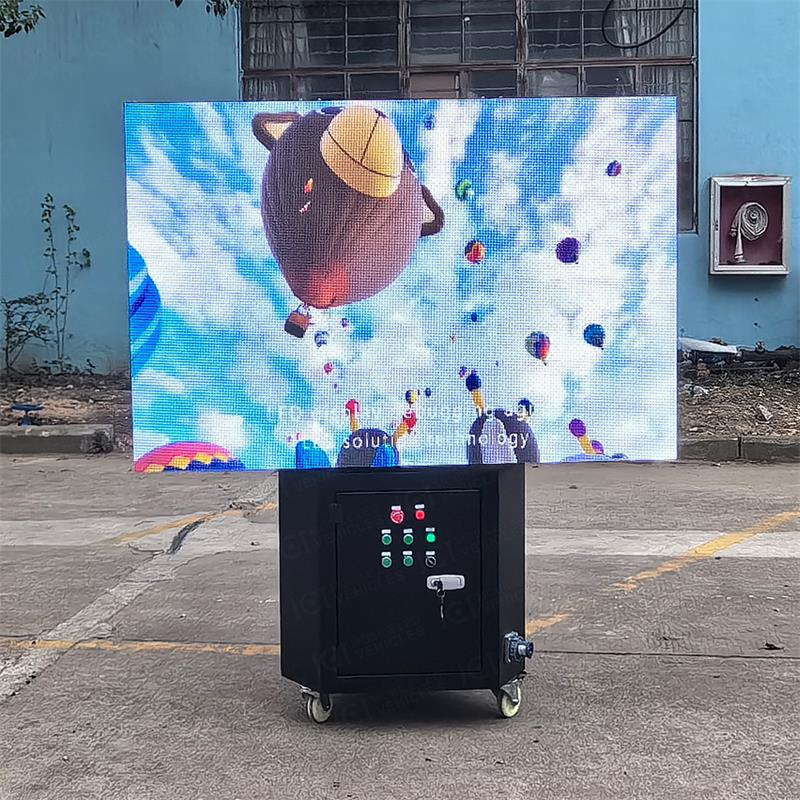

CRS150 creative rotating screen
| Specification | |||
| Creative screen structure | |||
| Base dimension | 500*600*3sides | Overall dimension | 500*1800mm*3sides |
| Main spindle | Diameter 100mm*1000mm, thickness 5mm | Motor mounting base | Machined, outer diameter 200mm |
| Rotating bearing housing | 2pcs | Flange flange | Diameter 200mm* thickness 5mm |
| LED Screen | |||
| Dimension | 500mm*1000mm*3sides | Module Size | 250mm(W)*250mm(H) |
| Light brand | kinglight | Dot Pitch | 3.91 mm |
| Brightness | 5000cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 230w/㎡ | Max Power Consumption | 680w/㎡ |
| Power Supply | G-energy | DRIVE IC | ICN2153 |
| Receiving card | Nova MRV316 | Fresh rate | 3840 |
| Cabinet material | Die casting aluminum | Cabinet weight | aluminum 7.5kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 65410 Dots/㎡ |
| Module resolution | 52*52/64*64Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7， | ||
| Electrical equipment | |||
| Step up motor | 750W | Electric conduction ring | 1PCS |
| Battery | 2pcs 12V200AH | PDB | Customization |

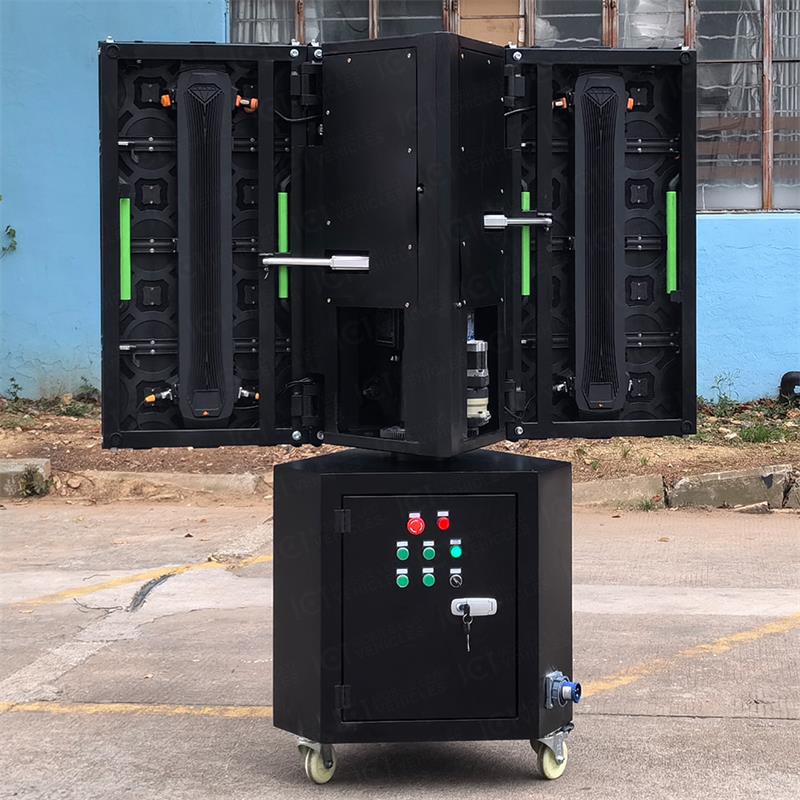

| Extended mechanism | |||
| Electric push rod | 2pcs | Hinge | 1 set |
| Power parameter (external prower supply) | |||
| Input voltage | Single phase 220V | Output voltage | 220V |
| Inrush current | 5A | Average power consumption | 250wh/㎡ |
| Multimedia control system | |||
| Sending box | NOVA TB50 | receiving card | MRV416 |
| Luminance sensor | NOVA | ||
The CRS150 creative rotating screen is equipped with two power supply modes, one is the common external power supply mode, the other is the battery power supply mode. If there is no power supply equipment at the event site, don't worry. Our creative rotating screen is equipped with two sets of high-quality batteries. After the battery is fully charged, even if there is no power supply equipment outdoors, it can ensure the normal operation of the creative rotating screen for 24 hours.
CRS150 creative rotating screen is a product with innovative design and efficient functions. Its unique rotating design enables the audience to enjoy the screen content in all directions, whether it is outdoor square, commercial center or event site, can bring shocking visual experience to the audience. The matching movable base carrier increases the flexibility of the product, so that the screen can be arranged anytime and anywhere, to meet the needs of different scenes.
In addition, the CRS150 creative rotating screen also has high definition and high brightness characteristics, whether day or night, can clearly display the content, to ensure that the audience viewing experience. At the same time, the product adopts advanced LED technology, with the advantages of energy saving, environmental protection, long life and so on, saving energy costs for users, but also to ensure the stability and reliability of the product.
Overall, JCT CRS150 creative rotating screen is a highlight of outdoor advertising, business display and cultural performance activities, with its unique design and excellent visual effects. Its flexible mobile carrier and multi-faceted screen combination design brings more choices and possibilities for users. Whether outdoors or indoors, whether during the day or night, CRS150 can bring stunning visual enjoyment to the audience and become an indispensable part of the scene.
