OEM manufacturer Trailer Sign - 28㎡ LED TRAILER – JCT Detail:

All these lights must be maximum 400 mm from corner of trailer. The taillights are all integrated together 2pcs.At BOTH sides of trailer we have 4 pcs SIDE light (like in picture), they would show yellow. Other of SIDE  lights is located almost at front corner of trailer and other light almost at back corner of trailer. ALSO we have 5 pcs of yellow reflectors (like in picture) to both sides of trailer or we would use yellow color reflecting tape to cover totally sides of trailer (as in picture). About 50 mm high tape would be high enough.

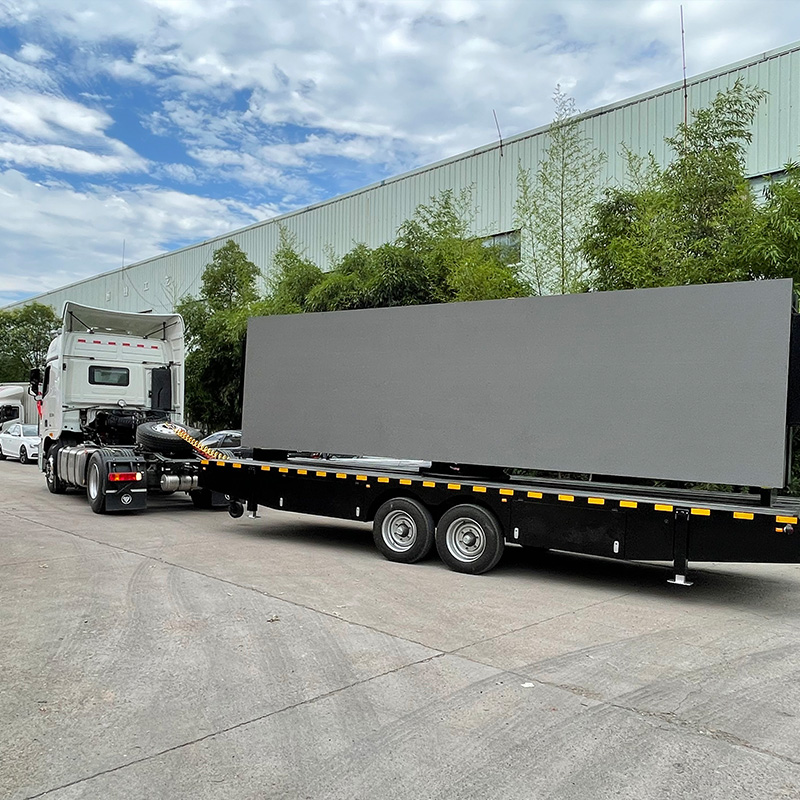

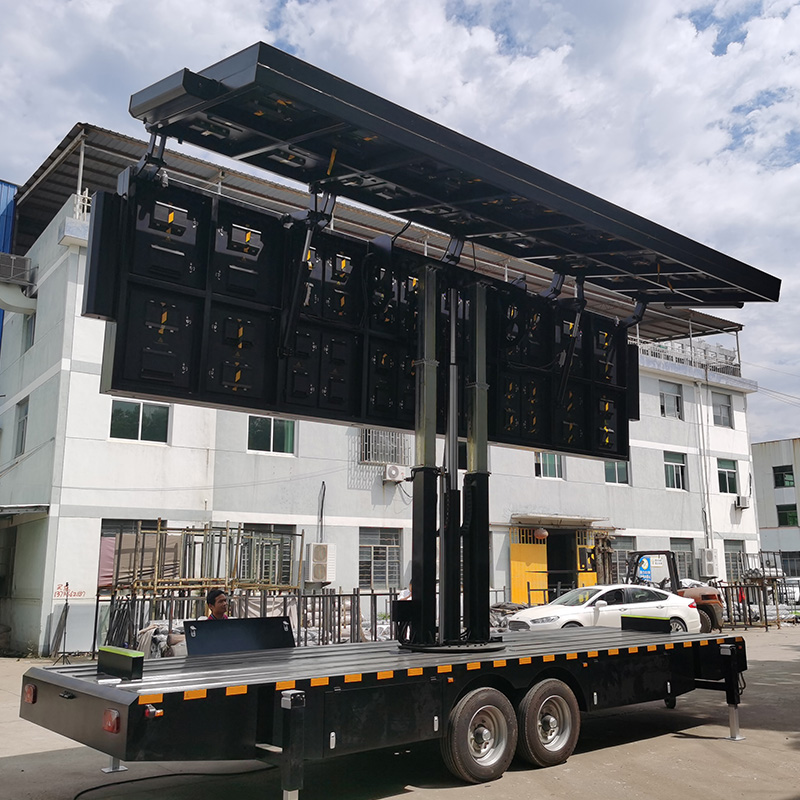

Foldable screen

Unique LED foldable screen technology brings customers a shocking and changeable visual experiences. Screen can play and fold at the same time. 360 degree barrier-free visual coverage and 28m2 screen improve the visual effect. Meanwhile, as it effectively reduces the limits of transportation, it can meet the requirements of special regional dispatching and resettlement to  expand the media coverage.

Optional power, remote control

The 28m2 mobile LED trailer is optional with chassis power system and using manual and mobile dual braking. Intelligent remote control makes it more flexible. Solid rubber tire made of 16 manganese steel is safe and reliable.

Fashionable appearance, dynamic technology

The 28m2 mobile LED trailer changed the traditional streamline design of previous products to a frameless design with clean and neat lines and sharp edges, fully reflecting the sense of science,  technology and modernization. It is especially suitable for pop show, fashion show, automobile new product release and so on.

Customized design

LED screen size can be customized according to customer requests, other types like E-F16 (screen size 16m2) and E-F40 (screen size 40m2) are available.

Product technical parameters

1. Overall dimension: 9126×2100×2955mm

2. LED outdoor full-color display screen (P4) size: 7000mm*4000mm

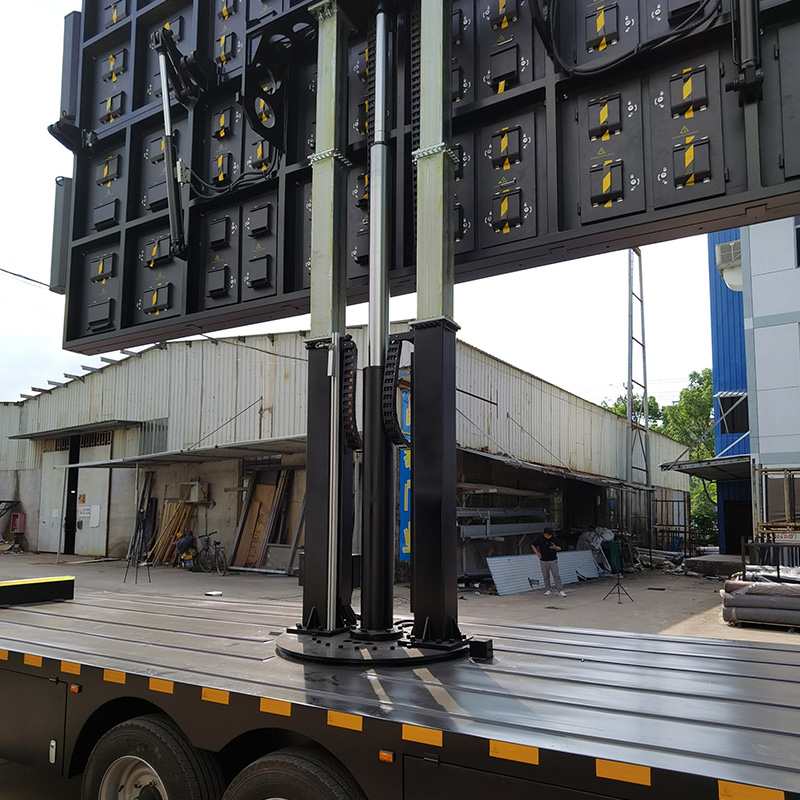

3. Lifting system: hydraulic cylinder imported from Italy with a stroke of 2000mm

4. Power consumption (average consumption) : 0.3/m2/H, total average consumption.

5. Equipped with front-end video processing system for live broadcast or retransmission of programs and ball games, there are 8 channels, and the screen can be switched at will.

6. The intelligent timing power on system can turn on or off the LED screen regularly.

7. can be equipped with light control system to automatically adjust the brightness of LED display according to the light intensity.

8. equipped with multimedia playback system, support U disk playback, support mainstream video format, support circular playback, interstitials, timing playback and other functions.

Input voltage 380V, starting current 30A.

Model E-F2828m2 LED TRAILER

Trailer appearance

Brand JCT

Dimension                       (screen up)

9126×2100×2955mm

Chassis

German-Made AIKO

Gross weight

4800kg

Breaking

Gas brake,Need to use gas brake truck traction

Max speed

120Km/h

LED Screen

Screen Size 7000mm*4000mm Dot Pitch P3/P4/P5/P6
Lifespan 100,000hours

Hydraulic lifting System

Lifting System Lifting Range 2000mm, bearing 3000kg, hydraulic screen folding system

Supporting legs

Stretching distance 300mm

hydraulic rotation

360 degrees

Power parameter

Input voltage

Three phases five wires 380V

Output voltage

220V

Inrush current

30A

Average power consumption

0.25kwh/㎡

Multimedia Control System

Video processor

NOVA

Model

TB6-4G

Luminance sensor

NOVA

Multi-function card

NOVA

Power amplifier

Output power:250W

Speaker

power:100W*4

xiangqing (1)

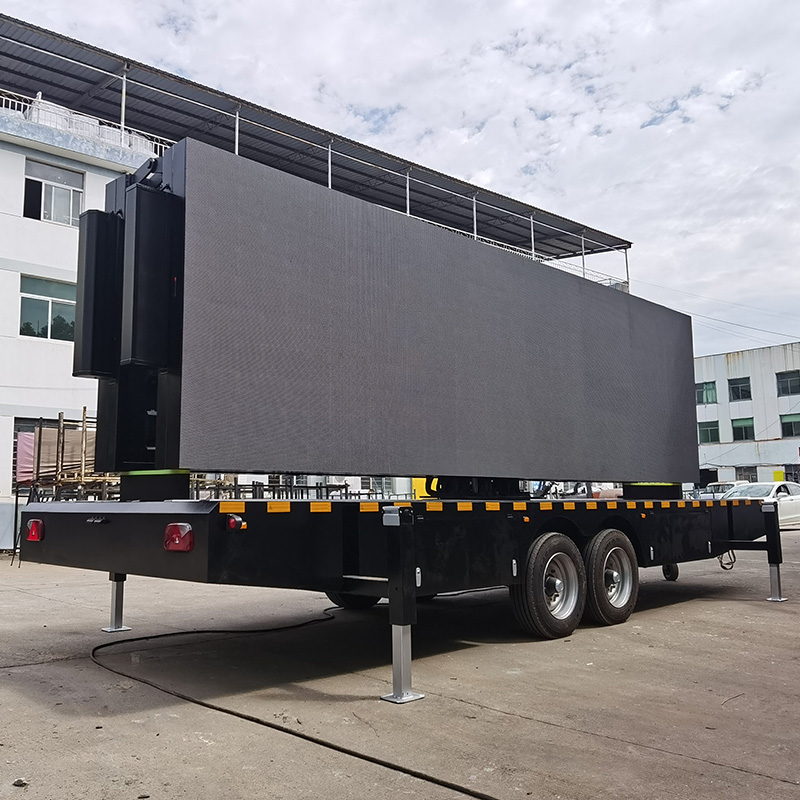

xiangqing (2)
xiangqing (3)

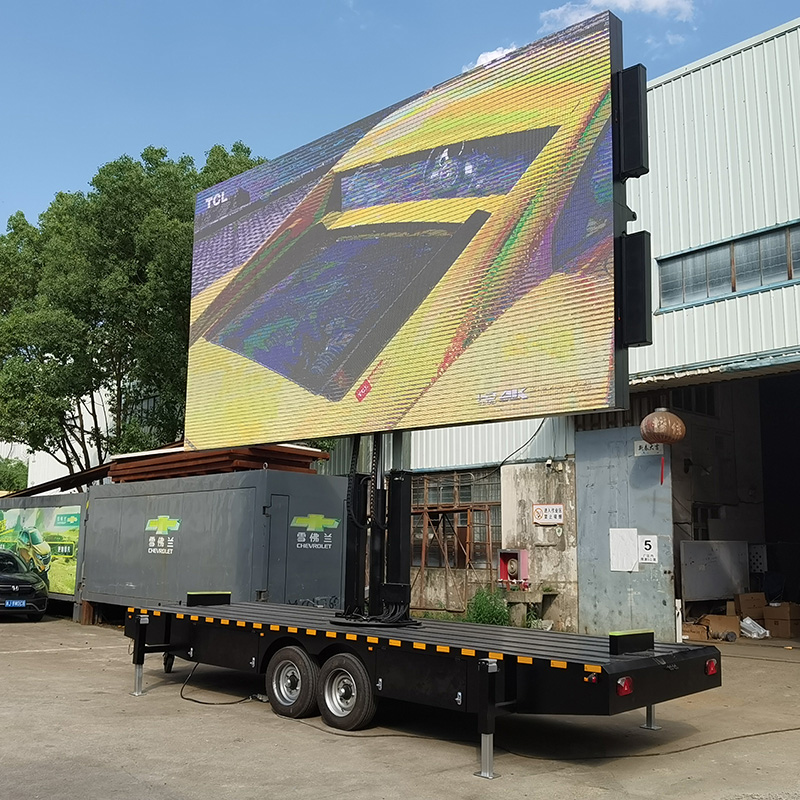

xiangqing (4)

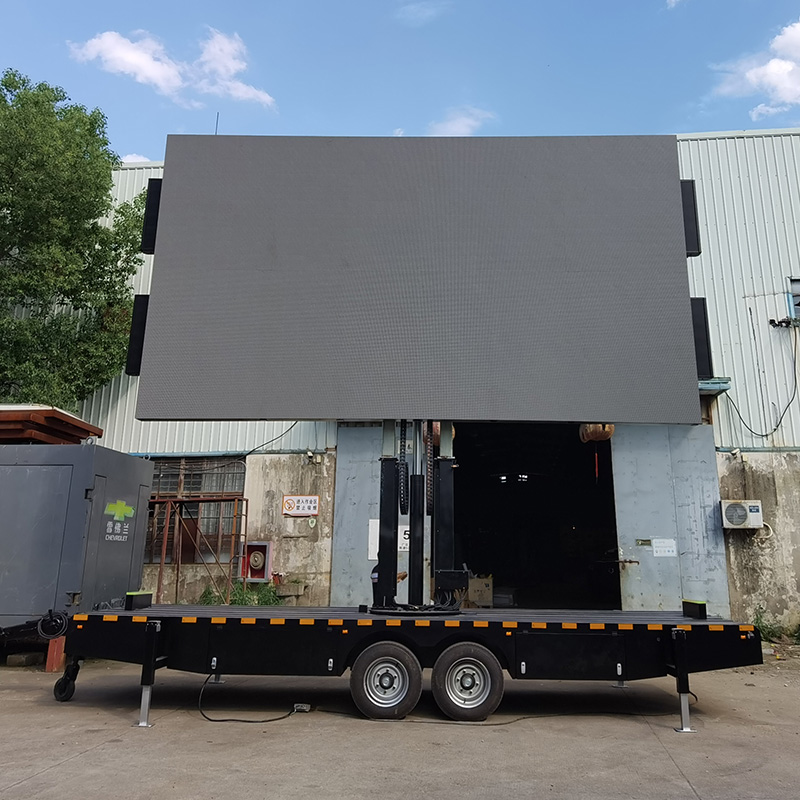

xiangqing (5)
xiangqing (6)
xiangqing (7)

Product detail pictures:

OEM manufacturer Trailer Sign - 28㎡ LED TRAILER – JCT detail pictures

OEM manufacturer Trailer Sign - 28㎡ LED TRAILER – JCT detail pictures

OEM manufacturer Trailer Sign - 28㎡ LED TRAILER – JCT detail pictures

OEM manufacturer Trailer Sign - 28㎡ LED TRAILER – JCT detail pictures

OEM manufacturer Trailer Sign - 28㎡ LED TRAILER – JCT detail pictures
